Toyota Prius: Wireless Charger Assembly

• Removal
• Installation

Removal

REMOVAL

CAUTION / NOTICE / HINT

COMPONENTS (REMOVAL)

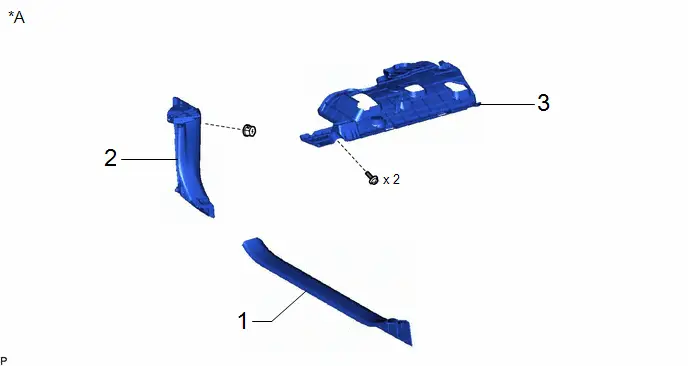

Procedure		Part Name Code
1	FRONT DOOR SCUFF PLATE LH	67914	-	-	-
2	COWL SIDE TRIM BOARD LH	62112	-	-	-
3	NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	55606	-	-	-

*A

w/ Knee Airbag

-

-

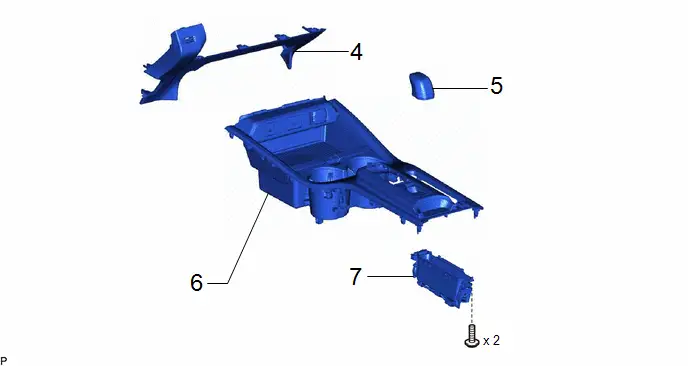

Procedure		Part Name Code
4	LOWER CENTER INSTRUMENT PANEL FINISH PANEL	55434B	-	-	-
5	SHIFT LEVER KNOB SUB-ASSEMBLY	33504F	-	-	-
6	UPPER CONSOLE PANEL SUB-ASSEMBLY	58804A	-	-	-
7	MOBILE WIRELESS CHARGER CRADLE ASSEMBLY	861C0	-	-	-

PROCEDURE

1. REMOVE FRONT DOOR SCUFF PLATE LH (w/ Knee Airbag)

Click here

2. REMOVE COWL SIDE TRIM BOARD LH (w/ Knee Airbag)

Click here

3. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (w/ Knee Airbag)

Click here

4. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

Click here

5. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

Click here

6. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

Click here

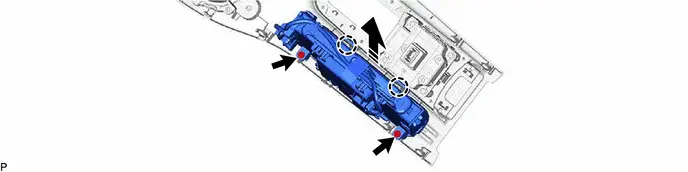

7. REMOVE MOBILE WIRELESS CHARGER CRADLE ASSEMBLY

Remove in this Direction

-

-

Installation

INSTALLATION

CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)

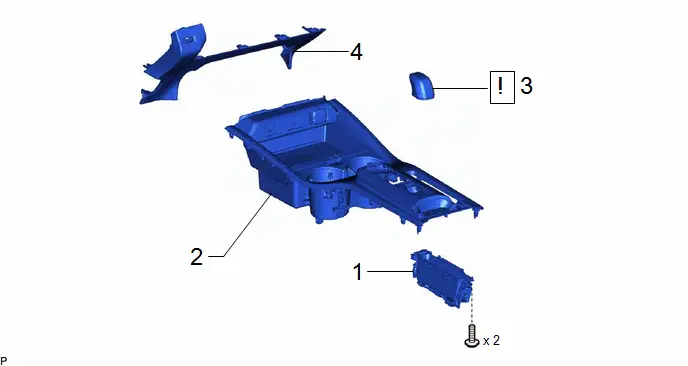

Procedure		Part Name Code
1	MOBILE WIRELESS CHARGER CRADLE ASSEMBLY	861C0	-	-	-
2	UPPER CONSOLE PANEL SUB-ASSEMBLY	58804A	-	-	-
3	SHIFT LEVER KNOB SUB-ASSEMBLY	33504F		-	-
4	LOWER CENTER INSTRUMENT PANEL FINISH PANEL	55434B	-	-	-

Procedure		Part Name Code
5	NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	55606	-	-	-
6	COWL SIDE TRIM BOARD LH	62112	-	-	-
7	FRONT DOOR SCUFF PLATE LH	67914	-	-	-

*A

w/ Knee Airbag

-

-

PROCEDURE

1. INSTALL MOBILE WIRELESS CHARGER CRADLE ASSEMBLY

2. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY

3. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY

Click here

4. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL

5. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (w/ Knee Airbag)

6. INSTALL COWL SIDE TRIM BOARD LH (w/ Knee Airbag)

7. INSTALL FRONT DOOR SCUFF PLATE LH (w/ Knee Airbag)
