Toyota Prius: Power Outlet Switch
Removal
REMOVAL
CAUTION / NOTICE / HINT

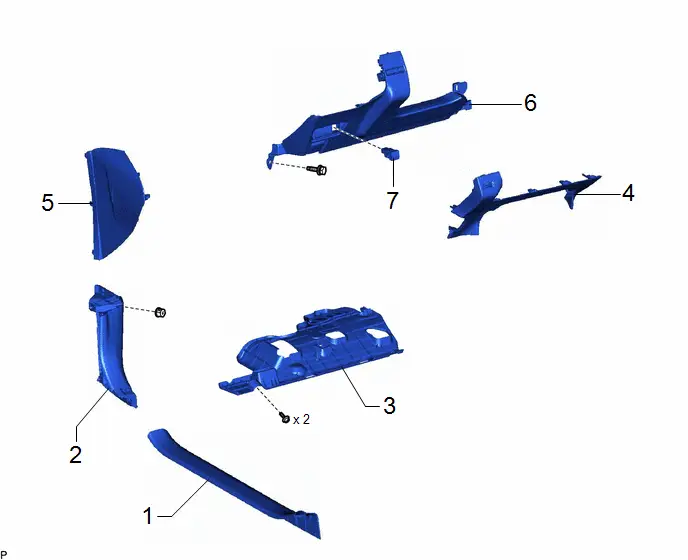

COMPONENTS (REMOVAL)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | FRONT DOOR SCUFF PLATE LH | 67914 | - | - | - |
| 2 | COWL SIDE TRIM BOARD LH | 62112 | - | - | - |
| 3 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | 55606 | - | - | - |
| 4 | LOWER CENTER INSTRUMENT PANEL FINISH PANEL | 55434B | - | - | - |
| 5 | INSTRUMENT SIDE PANEL LH | 55318C | - | - | - |
| 6 | LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY | 55480D | - | - | - |
| 7 | POWER OUTLET SWITCH | 84485C | - | - | - |
PROCEDURE
1. REMOVE FRONT DOOR SCUFF PLATE LH
Click here
2. REMOVE COWL SIDE TRIM BOARD LH
Click here
3. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Click here
4. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL
Click here
5. REMOVE INSTRUMENT SIDE PANEL LH
Click here
6. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY
Click here

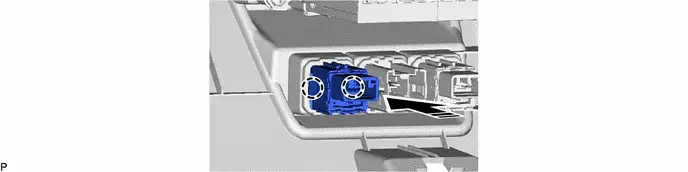

7. REMOVE POWER OUTLET SWITCH
| Remove in this Direction | - | - |
Inspection
INSPECTION
PROCEDURE

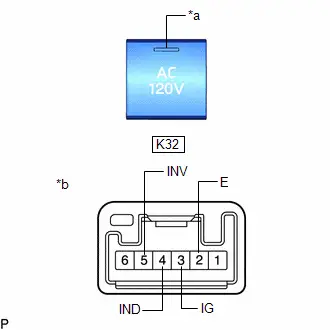

1. INSPECT POWER OUTLET SWITCH
| (a) Measure the resistance according to the value(s) in the table below. Standard Resistance:  Click Location & Routing(K32) Click Connector(K32)
If the result is not as specified, replace the power outlet switch. |
|
(b) Check the indicator light illuminates.
OK:
Click Location & Routing(K32) Click Connector(K32) | Tester Connection | Specified Condition |
|---|---|
| Auxiliary battery positive ( ) → K32-3 (IG) Auxiliary battery negative (-) → K32-4 (IND) | Illuminates |
If the result is not as specified, replace the power outlet switch.

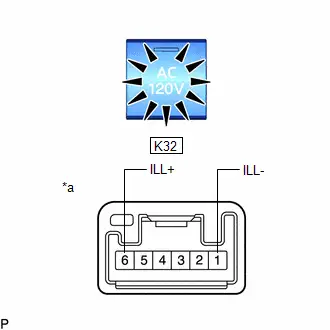

(c) Illumination Inspection
| (1) Apply auxiliary battery voltage to the power outlet switch and check that it illuminates. OK:  Click Location & Routing(K32) Click Connector(K32)
If the result is not as specified, replace the power outlet switch. |
|
Installation
INSTALLATION
CAUTION / NOTICE / HINT

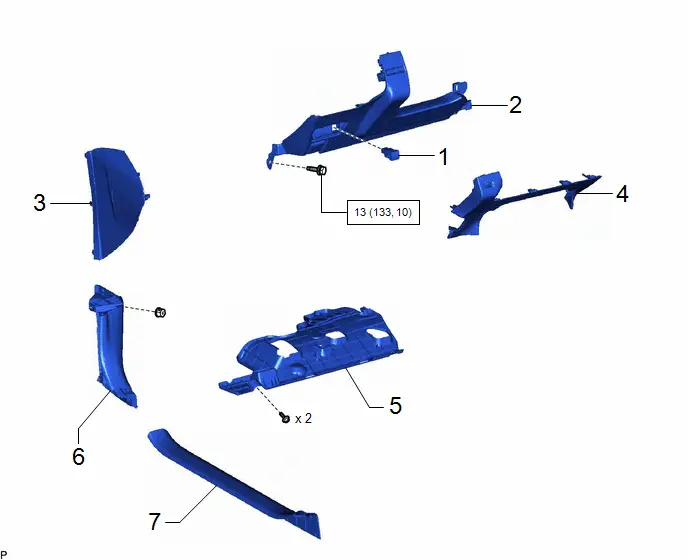

COMPONENTS (INSTALLATION)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | POWER OUTLET SWITCH | 84485C | - | - | - |
| 2 | LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY | 55480D | - | - | - |
| 3 | INSTRUMENT SIDE PANEL LH | 55318C | - | - | - |
| 4 | LOWER CENTER INSTRUMENT PANEL FINISH PANEL | 55434B | - | - | - |
| 5 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | 55606 | - | - | - |
| 6 | COWL SIDE TRIM BOARD LH | 62112 | - | - | - |
| 7 | FRONT DOOR SCUFF PLATE LH | 67914 | - | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
PROCEDURE
1. INSTALL POWER OUTLET SWITCH
2. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY
Click here
3. INSTALL INSTRUMENT SIDE PANEL LH
4. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL
5. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
6. INSTALL COWL SIDE TRIM BOARD LH
7. INSTALL FRONT DOOR SCUFF PLATE LH
Toyota Prius (XW60) 2023-2025 Service Manual
Power Outlet Switch
