Toyota Prius: Washer Nozzle (for Rear Television Camera)

Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during washer nozzle removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation. *1: w/ Rear Camera Cleaner System
Rear television camera assembly	Parking assist monitor system initialization* Rear television camera assembly optical axis (Back camera position setting)*	Parking Assist Monitor System
	Rear television camera view adjustment*	Parking Support Brake system
		Panoramic View Monitor System
		Advanced Park
	Camera cleaner setting operation*1	Multimedia switch is not displayed
Replacement or removal and installation of 2 or more parts: Front television camera assembly, Radiator grille or Front bumper assembly Rear television camera assembly Side television camera assembly LH, Parking assist light LH or Outer rear view mirror assembly LH Side television camera assembly RH, Parking assist light RH or Outer rear view mirror assembly RH	Television camera view adjustment	Panoramic View Monitor System

CAUTION / NOTICE / HINT

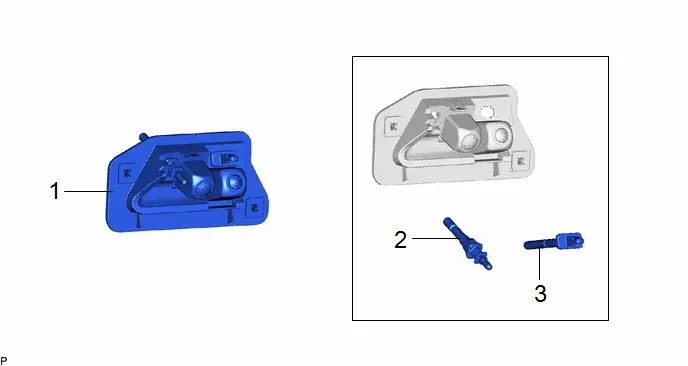

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	REAR TELEVISION CAMERA ASSEMBLY	86790D	-	-	-
2	NO. 1 CAMERA CLEANER NOZZLE ASSEMBLY	867F0A	-	-	-
3	NO. 2 CAMERA CLEANER NOZZLE ASSEMBLY	867F0B	-	-	-

PROCEDURE

1. REMOVE REAR TELEVISION CAMERA ASSEMBLY

Click here

2. REMOVE NO. 1 CAMERA CLEANER NOZZLE ASSEMBLY

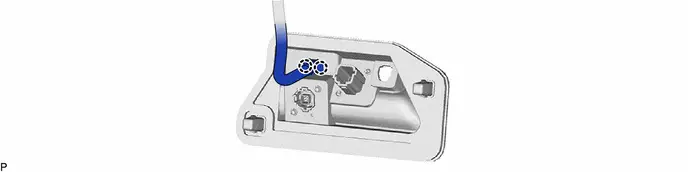

3. REMOVE NO. 2 CAMERA CLEANER NOZZLE ASSEMBLY

Installation

INSTALLATION

CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	NO. 1 CAMERA CLEANER NOZZLE ASSEMBLY	867F0A	-	-	-
2	NO. 2 CAMERA CLEANER NOZZLE ASSEMBLY	867F0B	-	-	-
3	REAR TELEVISION CAMERA ASSEMBLY	86790D	-	-	-
4	PERFORM CALIBRATION	-	-	-
5	PERFORM CALIBRATION (w/ Rear Camera Cleaner System)	-	-	-

PROCEDURE

1. INSTALL NO. 1 CAMERA CLEANER NOZZLE ASSEMBLY

2. INSTALL NO. 2 CAMERA CLEANER NOZZLE ASSEMBLY

3. INSTALL REAR TELEVISION CAMERA ASSEMBLY

Click here

4. PERFORM CALIBRATION

(a) w/ Parking Assist Monitor System:

Click here

(b) w/ Parking Support Brake System:

Click here

(c) w/ Panoramic View Monitor System:

Click here

(d) w/ Advanced Park:

Click here

5. PERFORM CALIBRATION (w/ Rear Camera Cleaner System)

Click here
