Toyota Prius: Washer Nozzle (for Front Side)

On-vehicle Inspection

ON-VEHICLE INSPECTION

PROCEDURE

1. INSPECT WASHER NOZZLE SUB-ASSEMBLY

(a) Operate the washer nozzle sub-assemblies and check the position that the washer fluid contacts the windshield.

Standard:

Center of washer fluid contacts the windshield in the areas shown in the illustration.

*a	Toyota Prius Vehicle center line	-	-
	Measurement	-	-

Standard Measurement:

Area	Measurement	Area	Measurement
A	309.6 mm (12.2 in.)	B	156.7 mm (6.17 in.)
C	87.7 mm (3.45 in.)	-	-

HINT:

If the result is not as specified, replace the washer nozzle sub-assembly.

Removal

REMOVAL

CAUTION / NOTICE / HINT

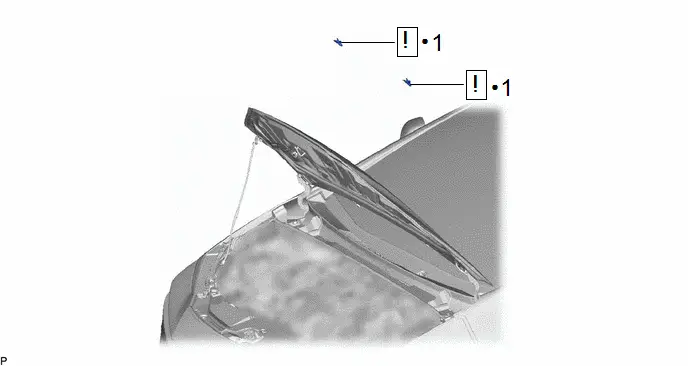

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	WASHER NOZZLE SUB-ASSEMBLY	85035		-	-

●

Non-reusable part

-

-

PROCEDURE

1. REMOVE WASHER NOZZLE SUB-ASSEMBLY

Remove in this Direction (1)

Remove in this Direction (2)

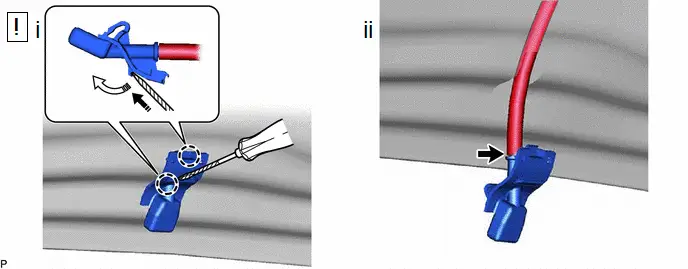

(1) Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws as shown in the illustration to separate the washer nozzle sub-assembly.

(2) Disconnect the washer hose to remove the washer nozzle sub-assembly.

(b) Use the same procedure for the RH side and LH side.

Installation

INSTALLATION

CAUTION / NOTICE / HINT

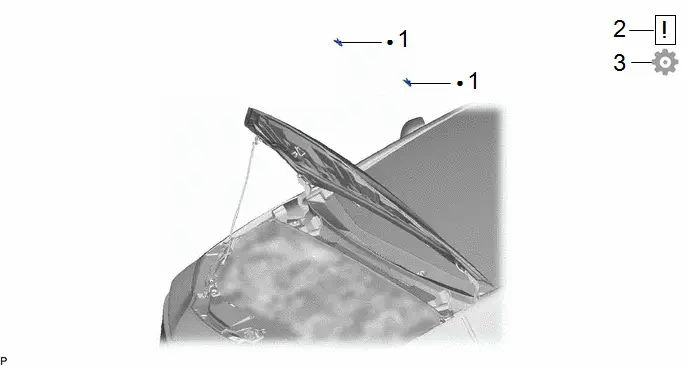

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	WASHER NOZZLE SUB-ASSEMBLY	85035	-	-	-
2	INSPECT WASHER NOZZLE SUB-ASSEMBLY	-		-	-
3	ADJUST WASHER NOZZLE SUB-ASSEMBLY	-	-	-

●

Non-reusable part

-

-

PROCEDURE

1. INSTALL WASHER NOZZLE SUB-ASSEMBLY

2. INSPECT WASHER NOZZLE SUB-ASSEMBLY

Click here

3. ADJUST WASHER NOZZLE SUB-ASSEMBLY

Click here

Adjustment

ADJUSTMENT

PROCEDURE

1. REMOVE WASHER NOZZLE SUB-ASSEMBLY

Click here

2. ADJUST WASHER NOZZLE SUB-ASSEMBLY

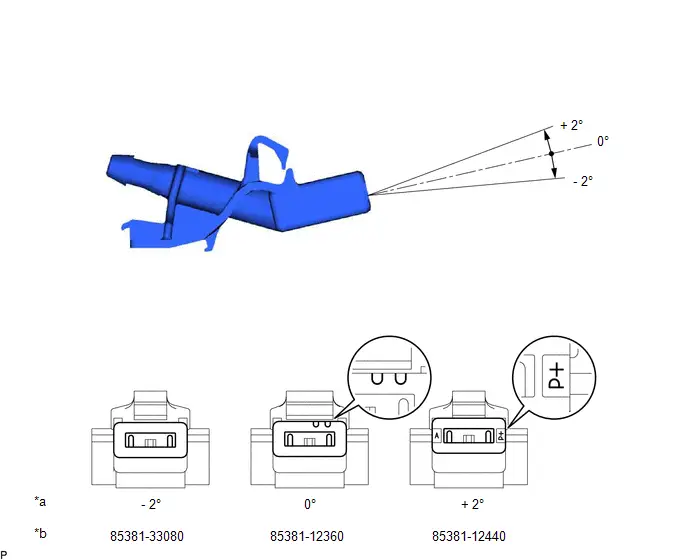

(a) Select a washer nozzle sub-assembly so that the position the washer fluid hits the windshield will be within the standard area. Replace the washer nozzle sub-assembly with the selected one.

*a

Washer Fluid Spray Angle

*b

Part Number

3. INSTALL WASHER NOZZLE SUB-ASSEMBLY

Click here
