Toyota Prius: Television Camera (for Side)
Toyota Prius (XW60) 2023-2025 Service Manual / Audio/Visual/Telematics / Park Assist / Monitoring / Television Camera (for Side)
Installation
INSTALLATION
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
CAUTION / NOTICE / HINT

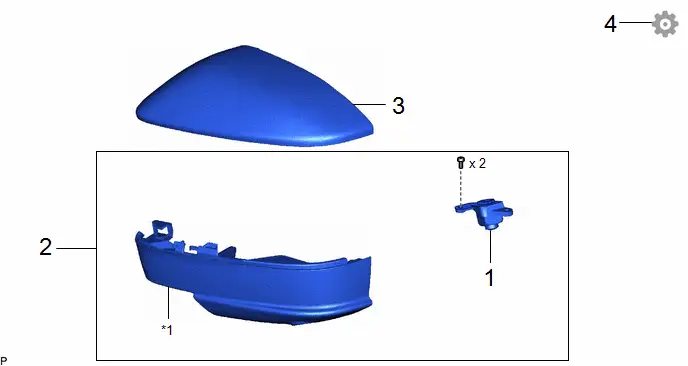

COMPONENTS (INSTALLATION)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | SIDE TELEVISION CAMERA ASSEMBLY | 86790F | - | - | - |
| 2 | NO. 3 OUTER MIRROR COVER WITH TELEVISION CAMERA | - | - | - | - |
| 3 | OUTER MIRROR COVER | 87945 | - | - | - |
| 4 | PERFORM CALIBRATION | - | - | - |
|
| *1 | NO. 3 OUTER MIRROR COVER | - | - |
PROCEDURE
1. INSTALL SIDE TELEVISION CAMERA ASSEMBLY
2. INSTALL NO. 3 OUTER MIRROR COVER WITH TELEVISION CAMERA
3. INSTALL OUTER MIRROR COVER
Click here
4. PERFORM CALIBRATION
(a) Click here
(b) w/ Parking Support Brake system:
Click here
(c) w/ Advanced Park:
Click here
