Toyota Prius: Ultrasonic Sensor (for Front)

Toyota Prius (XW60) 2023-2025 Service Manual / Audio/Visual/Telematics / Park Assist / Monitoring / Ultrasonic Sensor (for Front)

Removal
Installation

Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during ultrasonic sensor removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.
Front bumper assembly*	Front television camera view adjustment	Panoramic View Monitor System
Front bumper assembly*	Front television camera view adjustment	Advanced Park
Replacement or removal and installation of 2 or more parts: Front television camera assembly, Radiator grille or Front bumper assembly Rear television camera assembly Side television camera assembly LH, Parking assist light LH or Outer rear view mirror assembly LH Side television camera assembly RH, Parking assist light RH or Outer rear view mirror assembly RH	Television camera view adjustment	Panoramic View Monitor System
Ultrasonic sensor	w/ Parking Support Brake System: Measurement of Ultrasonic sensor detection angle Ultrasonic sensor detection angle registration	Intuitive Parking Assist Sensor System Parking Support Brake System
		Advanced Park
	w/o Parking Support Brake System: Initialization of ultrasonic sensors	Intuitive Parking Assist Sensor System

CAUTION / NOTICE / HINT

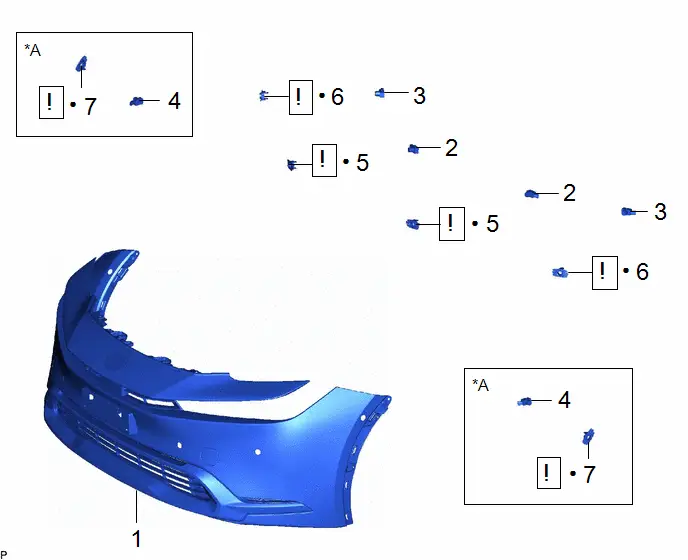

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	FRONT BUMPER ASSEMBLY	-	-	-	-
2	FRONT CENTER ULTRASONIC SENSOR	89341L	-	-	-
3	FRONT CORNER ULTRASONIC SENSOR	89341K	-	-	-
4	FRONT SIDE ULTRASONIC SENSOR	89341M	-	-	-
5	FRONT CENTER ULTRASONIC SENSOR RETAINER	89C48E		-	-
6	FRONT CORNER ULTRASONIC SENSOR RETAINER	89C48D		-	-
7	FRONT SIDE ULTRASONIC SENSOR RETAINER	89C48F		-	-

*A	w/ Advanced Park	-	-
●	Non-reusable part	-	-

Procedure		Part Name Code
8	ULTRASONIC SENSOR CUSHION SET	89305	-	-	-

PROCEDURE

1. REMOVE FRONT BUMPER ASSEMBLY

Click here

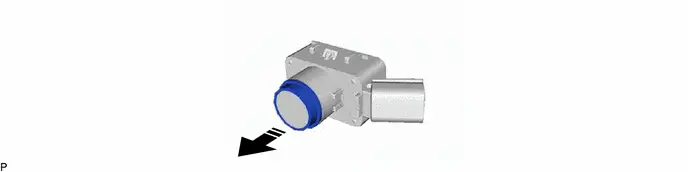

2. REMOVE FRONT CENTER ULTRASONIC SENSOR

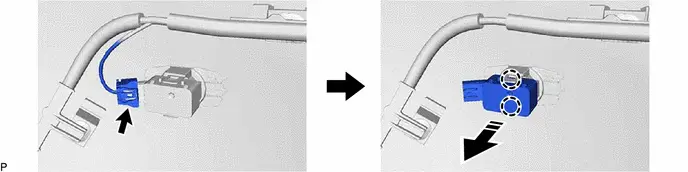

Remove in this Direction

(b) The orientation for the RH side is the opposite of the LH side.

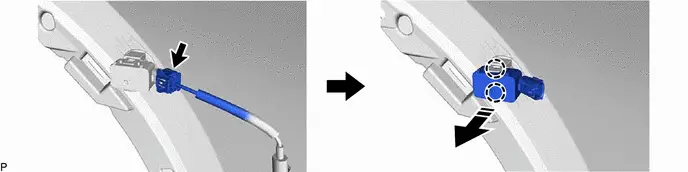

3. REMOVE FRONT CORNER ULTRASONIC SENSOR

Remove in this Direction

(b) The orientation for the RH side is the opposite of the LH side.

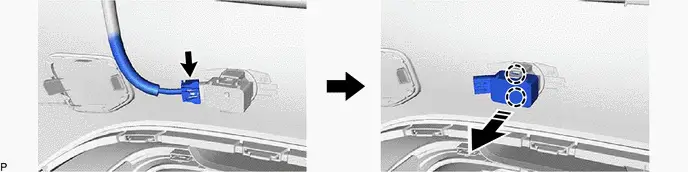

4. REMOVE FRONT SIDE ULTRASONIC SENSOR (w/ Advanced Park)

Remove in this Direction

(b) The orientation for the RH side is the opposite of the LH side.

5. REMOVE FRONT CENTER ULTRASONIC SENSOR RETAINER

HINT:

Perform this procedure only when replacement of the front center ultrasonic sensor retainer is necessary.

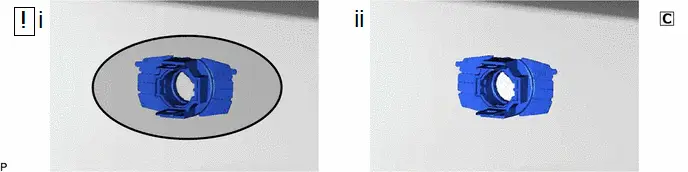

Heated Area

(1) Heat the adhesive of the front bumper assembly and front center ultrasonic sensor retainer using a heat light at the specified temperature for 3 to 5 minutes.

Standard Value:

Part	Temperature
Front Bumper Assembly	40 to 60°C (104 to 140°F)
Front Center Ultrasonic Sensor Retainer	40 to 60°C (104 to 140°F)

CAUTION:

Do not touch the heat light and heated parts.
Touching the heat light may result in burns.
Touching heated parts for a long time may result in burns.

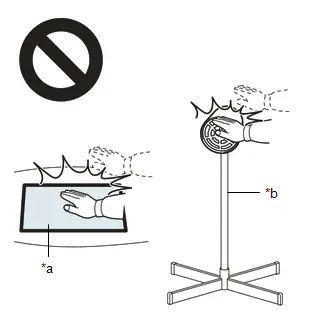

*a	Heated Part
*b	Heat Light

NOTICE:

Do not heat the front bumper assembly and front center ultrasonic sensor retainer excessively.

(2) Remove the front center ultrasonic sensor retainer.

(b) The orientation for the RH side is the opposite of the LH side.

6. REMOVE FRONT CORNER ULTRASONIC SENSOR RETAINER

HINT:

Perform this procedure only when replacement of the front corner ultrasonic sensor retainer is necessary.

Heated Area

(1) Heat the adhesive of the front bumper assembly and front corner ultrasonic sensor retainer using a heat light at the specified temperature for 3 to 5 minutes.

Standard Value:

Part	Temperature
Front Bumper Assembly	40 to 60°C (104 to 140°F)
Front Corner Ultrasonic Sensor Retainer	40 to 60°C (104 to 140°F)

CAUTION:

Do not touch the heat light and heated parts.
Touching the heat light may result in burns.
Touching heated parts for a long time may result in burns.

*a	Heated Part
*b	Heat Light

NOTICE:

Do not heat the front bumper assembly and front corner ultrasonic sensor retainer excessively.

(2) Remove the front corner ultrasonic sensor retainer.

(b) The orientation for the RH side is the opposite of the LH side.

7. REMOVE FRONT SIDE ULTRASONIC SENSOR RETAINER (w/ Advanced Park)

HINT:

Perform this procedure only when replacement of the front side ultrasonic sensor retainer is necessary.

Heated Area

(1) Heat the adhesive of the front bumper assembly and front side ultrasonic sensor retainer using a heat light at the specified temperature for 3 to 5 minutes.

Standard Value:

Part	Temperature
Front Bumper Assembly	40 to 60°C (104 to 140°F)
Front Side Ultrasonic Sensor Retainer	40 to 60°C (104 to 140°F)

CAUTION:

Do not touch the heat light and heated parts.
Touching the heat light may result in burns.
Touching heated parts for a long time may result in burns.

*a	Heated Part
*b	Heat Light

NOTICE:

Do not heat the front bumper assembly and front side ultrasonic sensor retainer excessively.

(2) Remove the front side ultrasonic sensor retainer.

(b) The orientation for the RH side is the opposite of the LH side.

8. REMOVE ULTRASONIC SENSOR CUSHION SET

HINT:

Perform this procedure only when replacement of the ultrasonic sensor cushion set is necessary.

Remove in this Direction

Installation

INSTALLATION

CAUTION / NOTICE / HINT

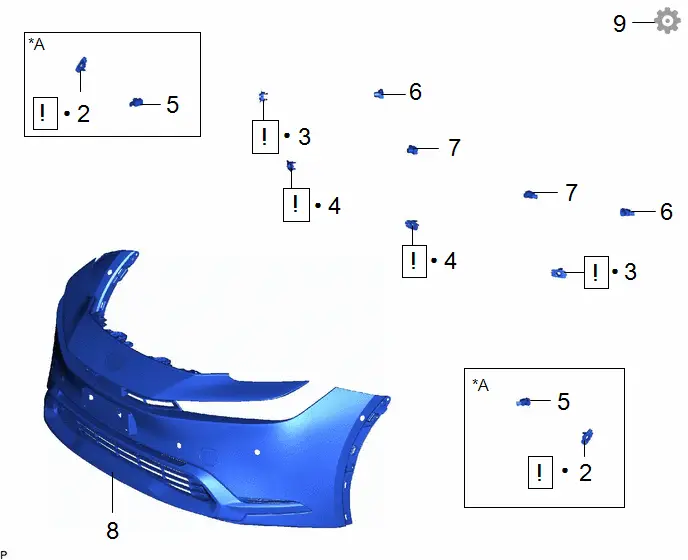

COMPONENTS (INSTALLATION)

Procedure		Part Name Code

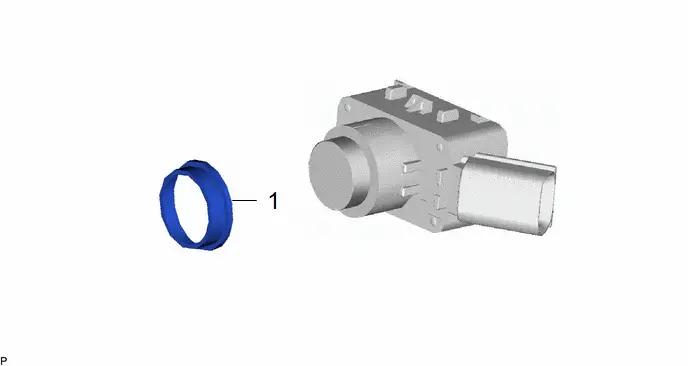

1	ULTRASONIC SENSOR CUSHION SET	89305	-	-	-

Procedure		Part Name Code
2	FRONT SIDE ULTRASONIC SENSOR RETAINER	89C48F		-	-
3	FRONT CORNER ULTRASONIC SENSOR RETAINER	89C48D		-	-
4	FRONT CENTER ULTRASONIC SENSOR RETAINER	89C48E		-	-
5	FRONT SIDE ULTRASONIC SENSOR	89341M	-	-	-
6	FRONT CORNER ULTRASONIC SENSOR	89341K	-	-	-
7	FRONT CENTER ULTRASONIC SENSOR	89341L	-	-	-
8	FRONT BUMPER ASSEMBLY	-	-	-	-
9	PERFORM CALIBRATION	-	-	-

*A	w/ Advanced Park	-	-
●	Non-reusable part	-	-

PROCEDURE

1. INSTALL ULTRASONIC SENSOR CUSHION SET

HINT:

Perform this procedure only when replacement of the ultrasonic sensor cushion set is necessary.

2. INSTALL FRONT SIDE ULTRASONIC SENSOR RETAINER (w/ Advanced Park)

HINT:

Perform this procedure only when replacement of the front side ultrasonic sensor retainer is necessary.
If a front side ultrasonic sensor retainer has been removed, replace it with a new one.

*a	Scribed Line	-	-

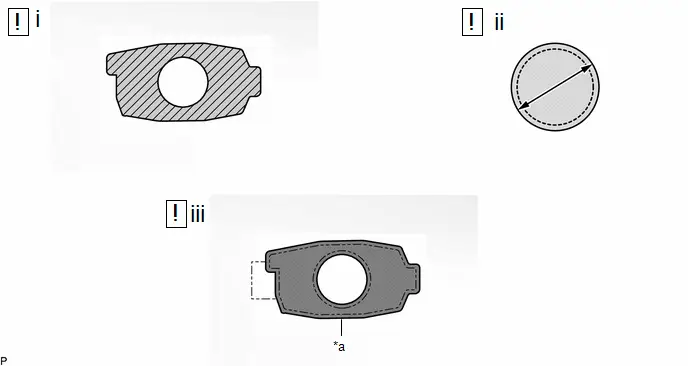

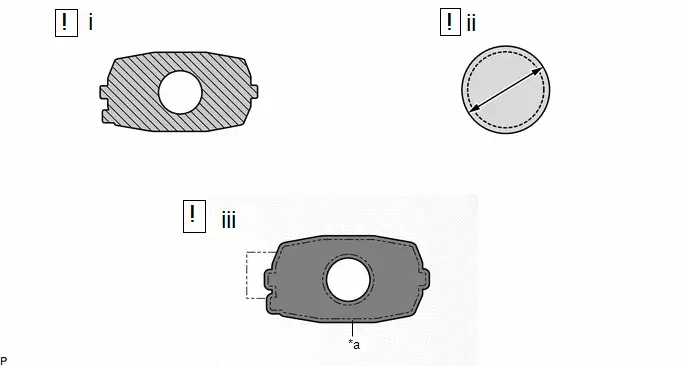

	Cleaning Area		Primer

(1) Clean the surface of the front bumper assembly.

1. Remove any remaining double-sided tape from the front bumper assembly.

NOTICE:

Installing the front side ultrasonic sensor retainer with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.

2. Wipe off any adhesive residue with cleaner.

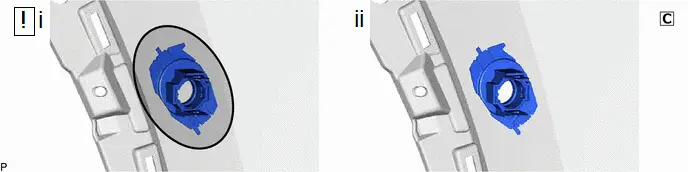

(2) Cover the sensor installation hole with a 25 mm (0.984 in.) circular piece of tape.

NOTICE:

If the primer contacts a painted surface, it may leave light primer marks. Therefore, use protective tape when using liquid primer.

(3) Apply primer to the installation area of the front side ultrasonic sensor retainer on the front bumper assembly.

1. Using a brush or felt, apply primer or equivalent to the front side ultrasonic sensor retainer installation area.

NOTICE:

Replace the brush or felt if it is dirty or has become hardened.
Do not apply primer to the painted side.
Do not touch the front bumper assembly until the primer has dried.

2. Let the primer dry sufficiently.

NOTICE:

Do not touch applied surfaces until the primer is dry.

Recommended drying time:

10 minutes or more (at 23°C (73°F))

3. Confirm that the primer has completely dried by touching the front bumper assembly. Then remove the tape.

*A	for LH Side	*B	for RH Side

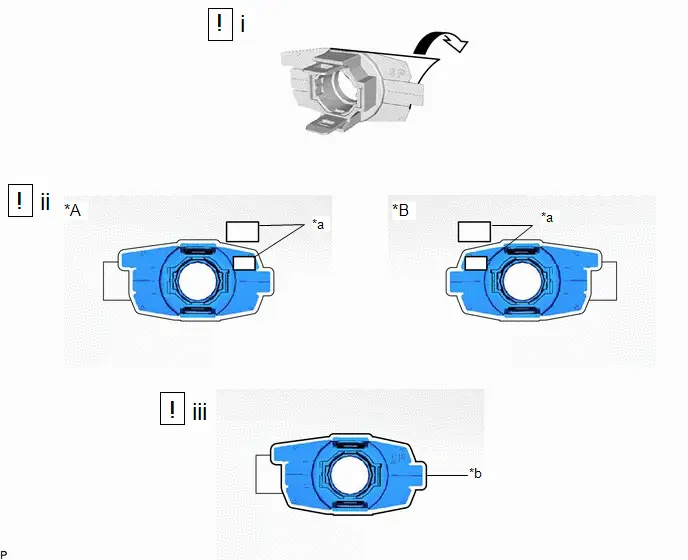

*a	Identification Code	*b	Scribed Line

(1) Peel off the release paper from a new front side ultrasonic sensor retainer.

NOTICE:

After removing the release paper, do not touch the surface of the tape with your fingers or cotton work gloves.

(2) Check that the identification codes on the front bumper assembly and the front side ultrasonic sensor retainer are identical.

(3) Align the front side ultrasonic sensor retainer with the mark on the front bumper assembly and install it as shown in the illustration.

NOTICE:

The application strength of the front side ultrasonic sensor retainer will weaken if reapplied. If reapplication is necessary, be sure to replace it with a new one.

HINT:

Apply pressure so that it does not lift up from the front bumper assembly.
Pushing force: 50 N (5.1 kgf) for 3 seconds

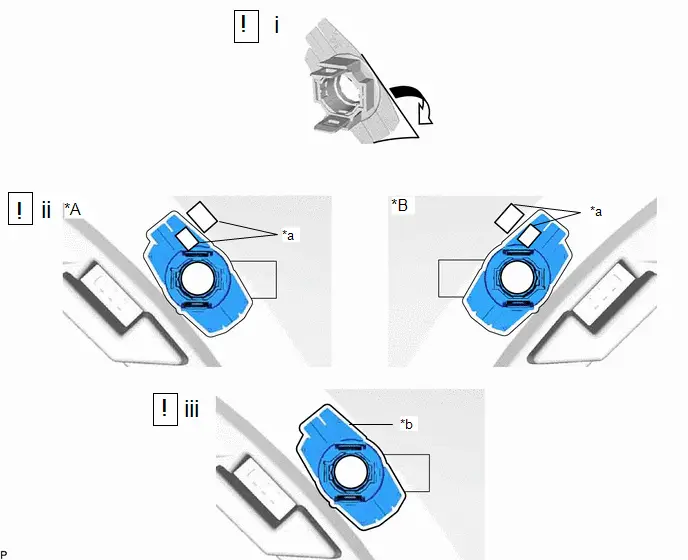

3. INSTALL FRONT CORNER ULTRASONIC SENSOR RETAINER

HINT:

Perform this procedure only when replacement of the front corner ultrasonic sensor retainer is necessary.
If a front corner ultrasonic sensor retainer has been removed, replace it with a new one.

*a	Scribed Line	-	-

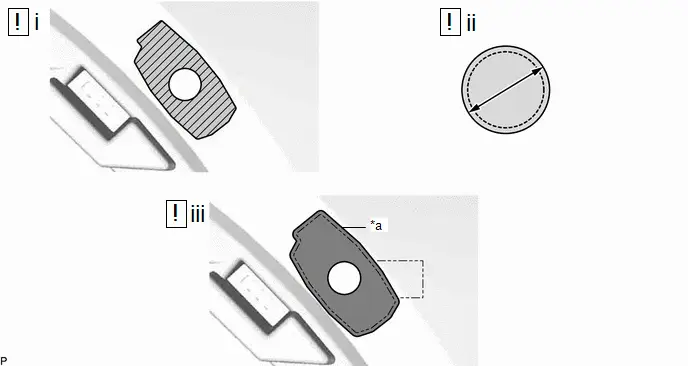

	Cleaning Area		Primer

(1) Clean the surface of the front bumper assembly.

1. Remove any remaining double-sided tape from the front bumper assembly.

NOTICE:

Installing the front corner ultrasonic sensor retainer with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.

2. Wipe off any adhesive residue with cleaner.

(2) Cover the sensor installation hole with a 25 mm (0.984 in.) circular piece of tape.

NOTICE:

If the primer contacts a painted surface, it may leave light primer marks. Therefore, use protective tape when using liquid primer.

(3) Apply primer to the installation area of the front corner ultrasonic sensor retainer on the front bumper assembly.

1. Using a brush or felt, apply primer or equivalent to the front corner ultrasonic sensor retainer installation area.

NOTICE:

Replace the brush or felt if it is dirty or has become hardened.
Do not apply primer to the painted side.
Do not touch the front bumper assembly until the primer has dried.

2. Let the primer dry sufficiently.

NOTICE:

Do not touch applied surfaces until the primer is dry.

Recommended drying time:

10 minutes or more (at 23°C (73°F))

3. Confirm that the primer has completely dried by touching the front bumper assembly. Then remove the tape.

*A	for LH Side	*B	for RH Side
*a	Identification Code	*b	Scribed Line

(1) Peel off the release paper from a new front corner ultrasonic sensor retainer.

NOTICE:

After removing the release paper, do not touch the surface of the tape with your fingers or cotton work gloves.

(2) Check that the identification codes on the front bumper assembly and the front corner ultrasonic sensor retainer are identical.

(3) Align the front corner ultrasonic sensor retainer with the mark on the front bumper assembly and install it as shown in the illustration.

NOTICE:

The application strength of the front corner ultrasonic sensor retainer will weaken if reapplied. If reapplication is necessary, be sure to replace it with a new one.

HINT:

Apply pressure so that it does not lift up from the front bumper assembly.
Pushing force: 50 N (5.1 kgf) for 3 seconds.

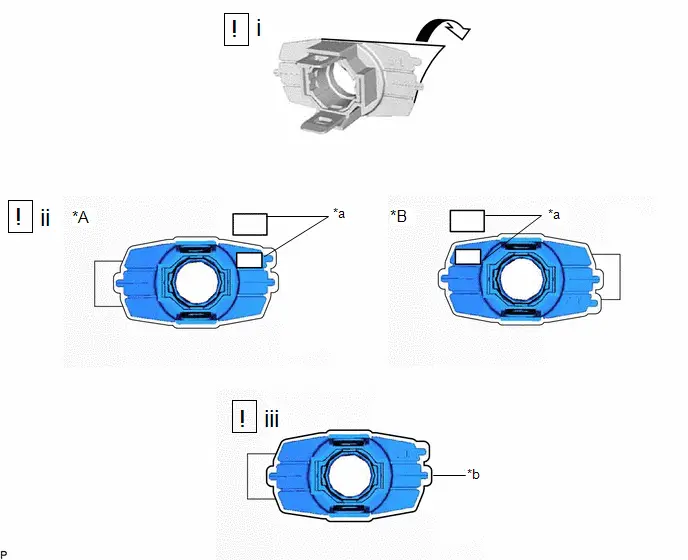

4. INSTALL FRONT CENTER ULTRASONIC SENSOR RETAINER

HINT:

Perform this procedure only when replacement of the front center ultrasonic sensor retainer is necessary.
If a front center ultrasonic sensor retainer has been removed, replace it with a new one.

*a	Scribed Line	-	-
	Cleaning Area		Primer

(1) Clean the surface of the front bumper assembly.

1. Remove any remaining double-sided tape from the front bumper assembly.

NOTICE:

Installing the front center ultrasonic sensor retainer with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.

2. Wipe off any adhesive residue with cleaner.

(2) Cover the sensor installation hole with a 25 mm (0.984 in.) circular piece of tape.

NOTICE:

If the primer contacts a painted surface, it may leave light primer marks. Therefore, use protective tape when using liquid primer.

(3) Apply primer to the installation area of the front center ultrasonic sensor retainer on the front bumper assembly.

1. Using a brush or felt, apply primer or equivalent to the front center ultrasonic sensor retainer installation area.

NOTICE:

Replace the brush or felt if it is dirty or has become hardened.
Do not apply primer to the painted side.
Do not touch the front bumper assembly until the primer has dried.

2. Let the primer dry sufficiently

NOTICE:

Do not touch applied surfaces until the primer is dry.

Recommended drying time:

10 minutes or more (at 23°C (73°F))

3. Confirm that the primer has completely dried by touching the front bumper assembly. Then remove the tape.

*A	for LH Side	*B	for RH Side
*a	Identification Code	*b	Scribed Line

(1) Peel off the release paper from a new front center ultrasonic sensor retainer.

NOTICE:

After removing the release paper, do not touch the surface of the tape with your fingers or cotton work gloves.

(2) Check that the identification codes on the front bumper assembly and the front center ultrasonic sensor retainer are identical.

(3) Align the front center ultrasonic sensor retainer with the mark on the front bumper assembly and install it as shown in the illustration.

NOTICE:

The application strength of the front center ultrasonic sensor retainer will weaken if reapplied. If reapplication is necessary, be sure to replace it with a new one.

HINT:
