Toyota Prius: Television Camera (for Front)

Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during front television camera assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.
Front television camera assembly*	Front television camera view adjustment	Panoramic View Monitor System
		Advanced Park
Replacement or removal and installation of 2 or more parts: Front television camera assembly, Radiator grille or Front bumper assembly Rear television camera assembly Side television camera assembly LH, Parking assist light LH or Outer rear view mirror assembly LH Side television camera assembly RH, Parking assist light RH or Outer rear view mirror assembly RH	Television camera view adjustment	Panoramic View Monitor System

CAUTION / NOTICE / HINT

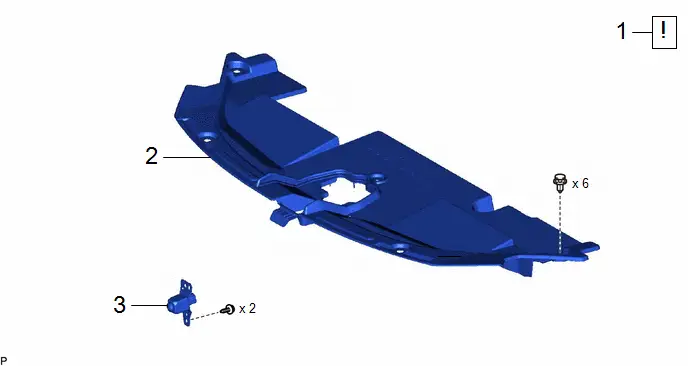

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	PRECAUTION	-		-	-
2	RADIATOR SUPPORT OPENING COVER	53289A	-	-	-
3	FRONT TELEVISION CAMERA ASSEMBLY	86790B	-	-	-

PROCEDURE

1. PRECAUTION

Click here

2. REMOVE RADIATOR SUPPORT OPENING COVER

Click here

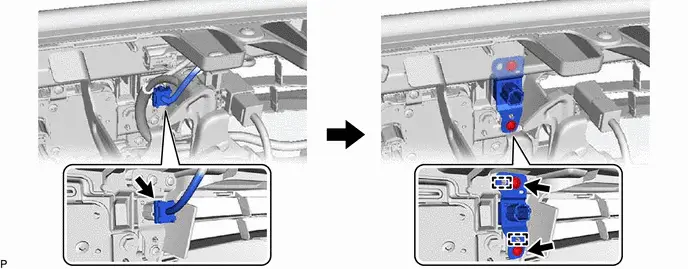

3. REMOVE FRONT TELEVISION CAMERA ASSEMBLY

Installation

INSTALLATION

CAUTION / NOTICE / HINT

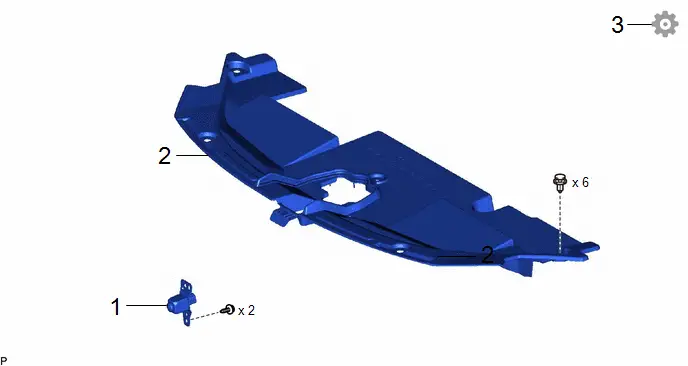

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	FRONT TELEVISION CAMERA ASSEMBLY	86790B	-	-	-
2	RADIATOR SUPPORT OPENING COVER	53289A	-	-	-
3	PERFORM CALIBRATION	-	-	-

PROCEDURE

1. INSTALL FRONT TELEVISION CAMERA ASSEMBLY

2. INSTALL RADIATOR SUPPORT OPENING COVER

3. PERFORM CALIBRATION

(a) Click here

(b) w/ Advanced Park:

Click here
