Toyota Prius: Telephone And Gps Antenna (for Roof Side)

• Removal
• Installation

Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during telephone and GPS antenna assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.
w/ Occupant Classification System: Front passenger seat*	Zero point calibration (Occupant classification system)	Occupant Classification System Passenger airbag ON/OFF indicator Airbag System (Front passenger side) Seat Belt Warning System (Front passenger)

CAUTION:

Be sure to read Precaution thoroughly before servicing.

Click here

NOTICE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click here

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when Toyota Prius vehicle is driven

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Front Camera System	Drive the Toyota Prius vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.

Learning completes when vehicle is operated normally

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
*1: w/o Power Back Door System *2: w/ Power Back Door System
Power Door Lock Control System*1 Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.
Power Back Door System*2	Reset back door close position
Air Conditioning System	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

CAUTION / NOTICE / HINT

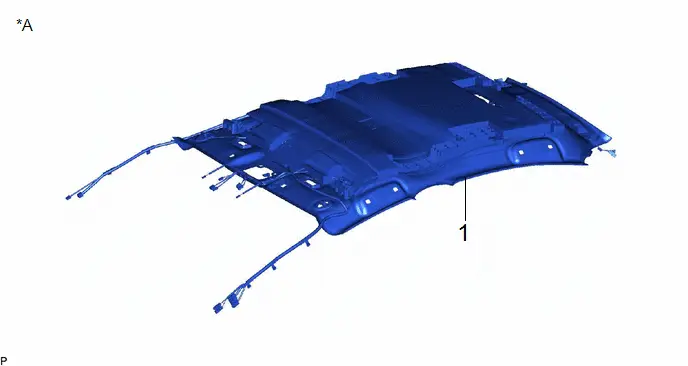

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	ROOF HEADLINING ASSEMBLY	-	-	-	-

*A

for Normal Roof

-

-

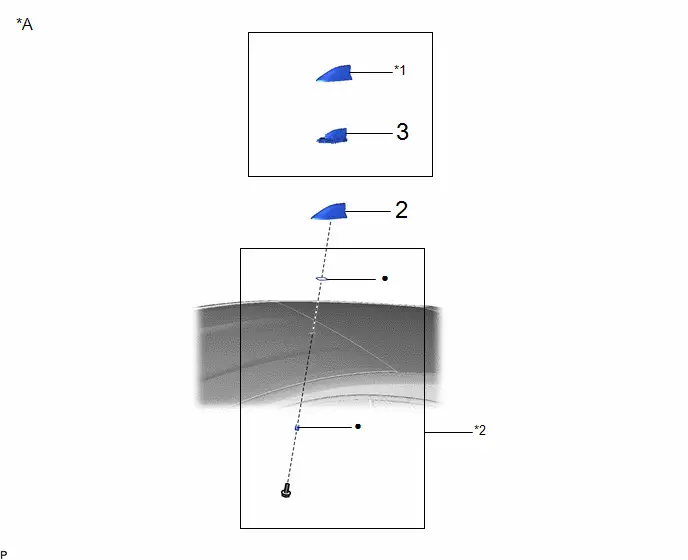

Procedure		Part Name Code
2	TELEPHONE AND GPS ANTENNA ASSEMBLY WITH COVER	-	-	-	-
3	TELEPHONE AND GPS ANTENNA ASSEMBLY	86300J	-	-	-

*A	for Normal Roof	-	-
*1	COVER	*2	ROOF ANTENNA HOUSING
●	Non-reusable part	-	-

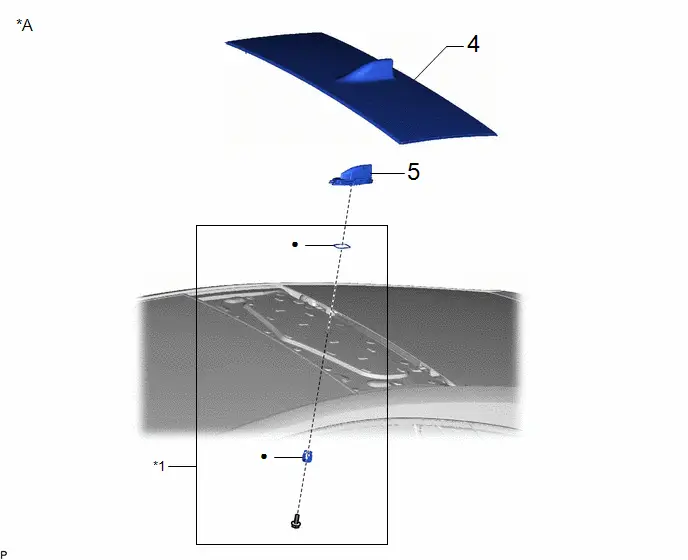

Procedure		Part Name Code
4	ROOF TOP MOULDING SUB-ASSEMBLY	75607B	-	-	-
5	TELEPHONE AND GPS ANTENNA ASSEMBLY	86300J	-	-	-

*A	for Panoramic Moon Roof	-	-
*1	ROOF ANTENNA HOUSING	-	-
●	Non-reusable part	-	-

PROCEDURE

1. REMOVE ROOF HEADLINING ASSEMBLY (for Normal Roof)

Click here

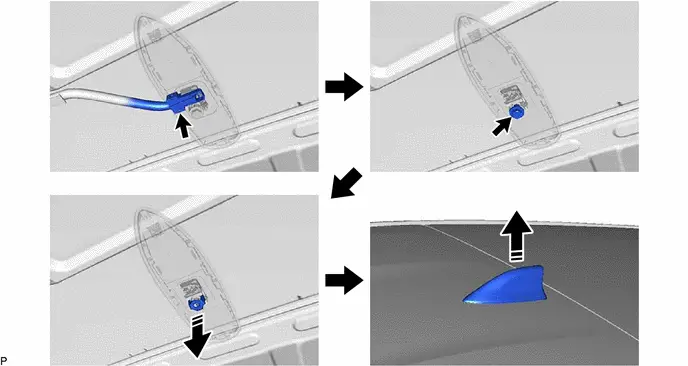

2. REMOVE TELEPHONE AND GPS ANTENNA ASSEMBLY WITH COVER (for Normal Roof)

Remove in this Direction

-

-

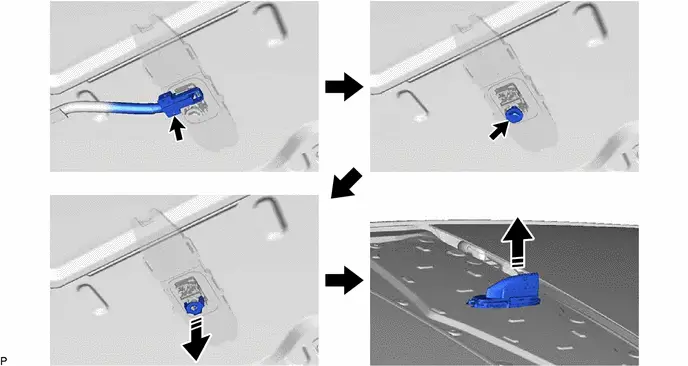

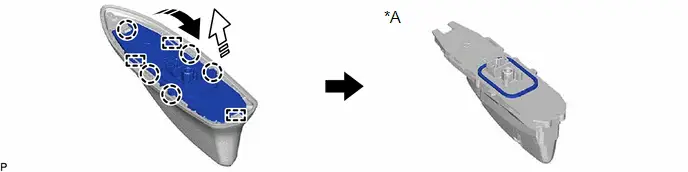

3. REMOVE TELEPHONE AND GPS ANTENNA ASSEMBLY (for Normal Roof)

*A	When reusing the telephone antenna assembly	-	-
	Remove in this Direction (1)		Remove in this Direction (2)

4. REMOVE ROOF TOP MOULDING SUB-ASSEMBLY (for Panoramic Moon Roof)

Click here

5. REMOVE TELEPHONE AND GPS ANTENNA ASSEMBLY (for Panoramic Moon Roof)

Remove in this Direction

-

-

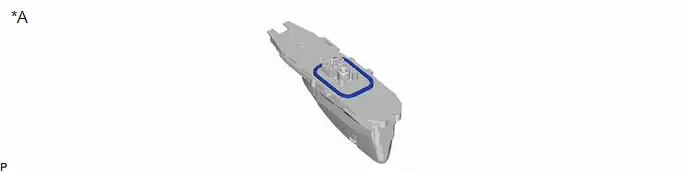

*A

When reusing the telephone antenna assembly

-

-

Installation

INSTALLATION

CAUTION / NOTICE / HINT

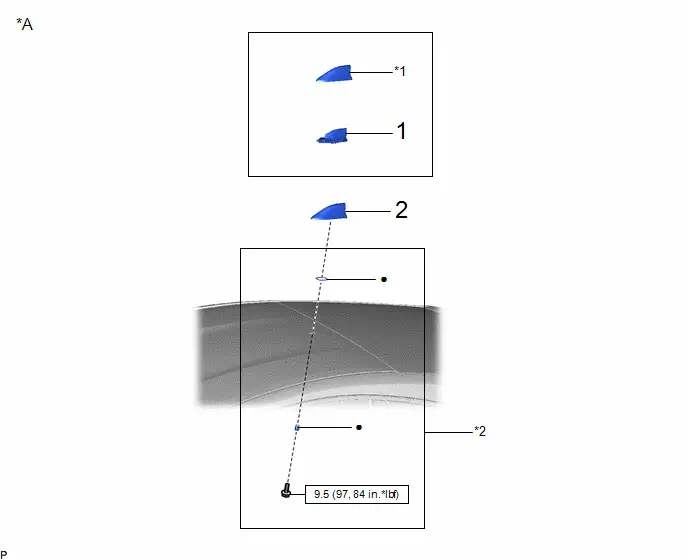

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	TELEPHONE AND GPS ANTENNA ASSEMBLY	86300J	-	-	-
2	TELEPHONE AND GPS ANTENNA ASSEMBLY WITH COVER	-	-	-	-

*A	for Normal Roof	-	-
*1	COVER	*2	ROOF ANTENNA HOUSING
	N*m (kgf*cm, ft.*lbf): Specified torque	●	Non-reusable part

Procedure		Part Name Code
3	ROOF HEADLINING ASSEMBLY	-	-	-	-

*A

for Normal Roof

-

-

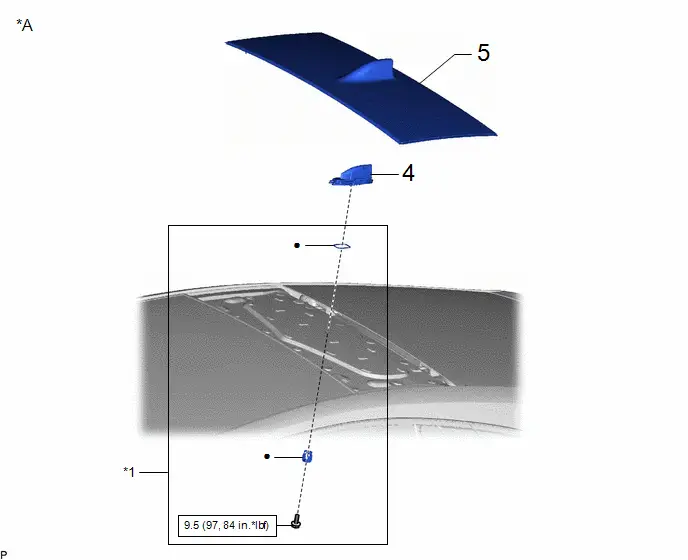

Procedure		Part Name Code
4	TELEPHONE AND GPS ANTENNA ASSEMBLY	86300J	-	-	-
5	ROOF TOP MOULDING SUB-ASSEMBLY	75607B	-	-	-

*A	for Panoramic Moon Roof	-	-
*1	ROOF ANTENNA HOUSING	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	●	Non-reusable part

PROCEDURE

1. INSTALL TELEPHONE AND GPS ANTENNA ASSEMBLY (for Normal Roof)

2. INSTALL TELEPHONE AND GPS ANTENNA ASSEMBLY WITH COVER (for Normal Roof)

Torque:

9.5 N·m {97 kgf·cm, 84 in·lbf}

3. INSTALL ROOF HEADLINING ASSEMBLY (for Normal Roof)

Click here

4. INSTALL TELEPHONE AND GPS ANTENNA ASSEMBLY (for Panoramic Moon Roof)

Torque:

9.5 N·m {97 kgf·cm, 84 in·lbf}

5. INSTALL ROOF TOP MOULDING SUB-ASSEMBLY (for Panoramic Moon Roof)

Click here
