Toyota Prius: Telephone And Gps Antenna Cords

Toyota Prius (XW60) 2023-2025 Service Manual / Audio/Visual/Telematics / Cellular Communication / Telephone And Gps Antenna Cords

Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during antenna cord sub-assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.
w/ Occupant Classification System:
  • Front passenger seat*

Zero point calibration (Occupant classification system)

  • Occupant Classification System
  • Passenger airbag ON/OFF indicator
  • Airbag System (Front passenger side)
  • Seat Belt Warning System (Front passenger)

CAUTION:

Be sure to read Precaution thoroughly before servicing.

Click here

NOTICE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click here

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when Toyota Prius vehicle is driven

Effect/Inoperative Function when Necessary Procedure not Performed

Necessary Procedure

Link

Front Camera System

Drive the Toyota Prius vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.

Learning completes when vehicle is operated normally

Effect/Inoperative Function when Necessary Procedure not Performed

Necessary Procedure

Link

*1: w/o Power Back Door System

*2: w/ Power Back Door System

Power Door Lock Control System*1

  • Back door opener

Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.

Power Back Door System*2

Reset back door close position

Air Conditioning System

After the ignition switch is turned to ON, the servo motor standard position is recognized.

-

CAUTION / NOTICE / HINT

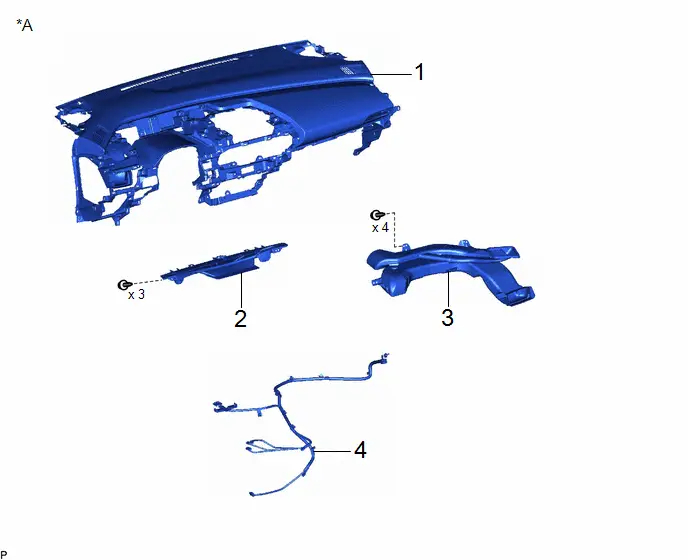

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

-

-

-

-

2

DEFROSTER NOZZLE ASSEMBLY

55950G

-

-

-

3

NO. 2 HEATER TO REGISTER DUCT SUB-ASSEMBLY

55085

-

-

-

4

ANTENNA CORD SUB-ASSEMBLY

86101T

-

-

-

*A

for Instrument Panel

-

-

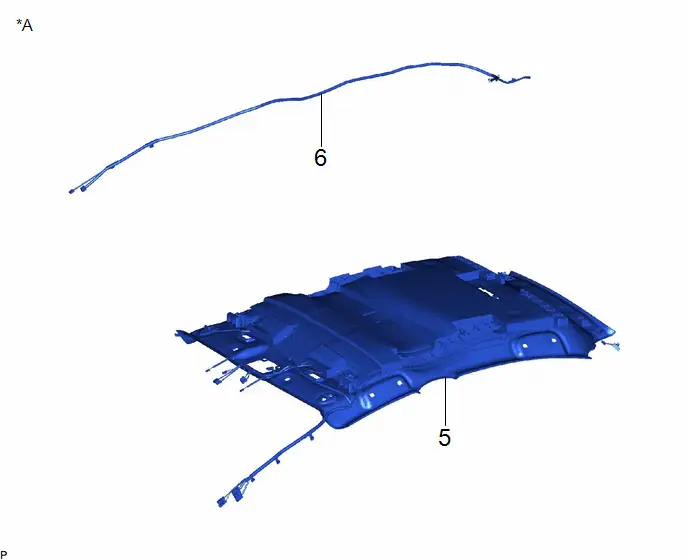

Procedure

Part Name Code

5

ROOF HEADLINING ASSEMBLY

-

-

-

-

6

NO. 3 ANTENNA CORD SUB-ASSEMBLY

86101D

-

-

-

*A

for Roof

-

-

Procedure

Part Name Code

7

ANTENNA CORD SUB-ASSEMBLY

86101

-

-

-

*A

for Roof

-

-

PROCEDURE

1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY (for Instrument Panel)

Click here

2. REMOVE DEFROSTER NOZZLE ASSEMBLY (for Instrument Panel)

Click here

3. REMOVE NO. 2 HEATER TO REGISTER DUCT SUB-ASSEMBLY (for Instrument Panel)

Click here

4. REMOVE ANTENNA CORD SUB-ASSEMBLY (for Instrument Panel)

Click here

5. REMOVE ROOF HEADLINING ASSEMBLY (for Roof)

Click here

6. REMOVE NO. 3 ANTENNA CORD SUB-ASSEMBLY (for Roof)

Click here

7. REMOVE ANTENNA CORD SUB-ASSEMBLY (for Roof)

Click here

Installation

INSTALLATION

CAUTION / NOTICE / HINT

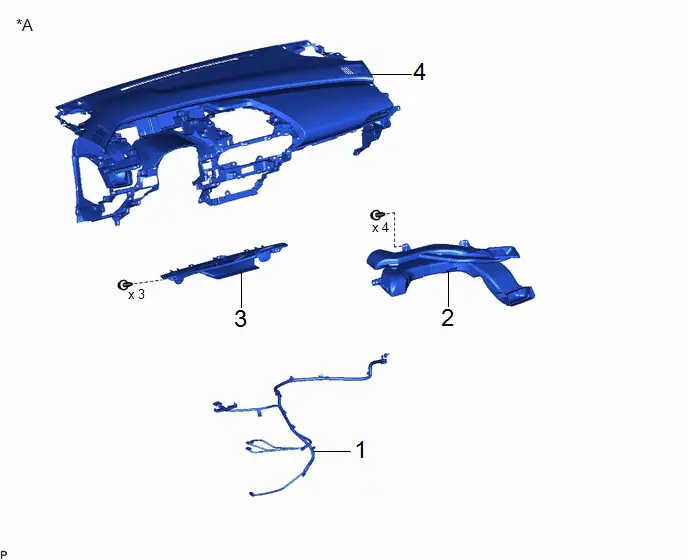

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

ANTENNA CORD SUB-ASSEMBLY

86101T

-

-

-

2

NO. 2 HEATER TO REGISTER DUCT SUB-ASSEMBLY

55085

-

-

-

3

DEFROSTER NOZZLE ASSEMBLY

55950G

-

-

-

4

INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

-

-

-

-

*A

for Instrument Panel

-

-

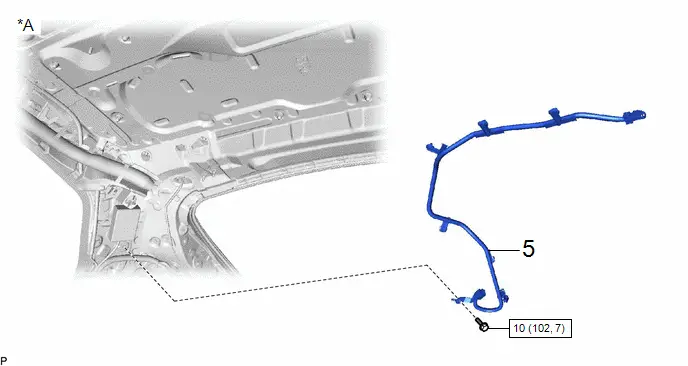

Procedure

Part Name Code

5

ANTENNA CORD SUB-ASSEMBLY

86101

-

-

-

*A

for Roof

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

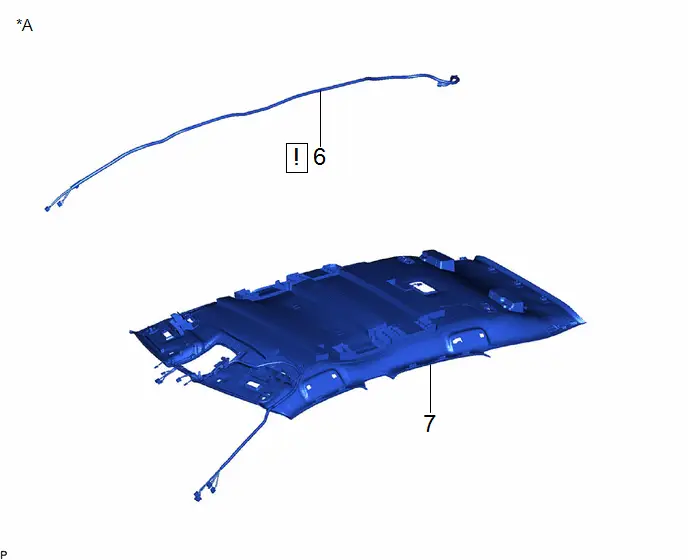

Procedure

Part Name Code

6

NO. 3 ANTENNA CORD SUB-ASSEMBLY

86101D

-

-

7

ROOF HEADLINING ASSEMBLY

-

-

-

-

*A

for Roof

-

-

PROCEDURE

1. INSTALL ANTENNA CORD SUB-ASSEMBLY (for Instrument Panel)

2. INSTALL NO. 2 HEATER TO REGISTER DUCT SUB-ASSEMBLY (for Instrument Panel)

3. INSTALL DEFROSTER NOZZLE ASSEMBLY (for Instrument Panel)

4. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY (for Instrument Panel)

Click here

5. INSTALL ANTENNA CORD SUB-ASSEMBLY (for Roof)

Click here

6. INSTALL NO. 3 ANTENNA CORD SUB-ASSEMBLY (for Roof)

Click here

7. INSTALL ROOF HEADLINING ASSEMBLY (for Roof)

Click here
