Toyota Prius: Telephone And Gps Antenna (for Front Side)

Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during telephone and GPS antenna assembly removal/installation are shown below.

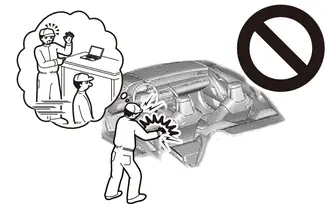

CAUTION:

Be sure to read Precaution thoroughly before servicing.

Click here

NOTICE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click here

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when Toyota Prius vehicle is driven

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Front Camera System	Drive the Toyota Prius vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.

Learning completes when vehicle is operated normally

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
*1: w/o Power Back Door System *2: w/ Power Back Door System
Power Door Lock Control System*1 Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.
Power Back Door System*2	Reset back door close position
Air Conditioning System	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

CAUTION / NOTICE / HINT

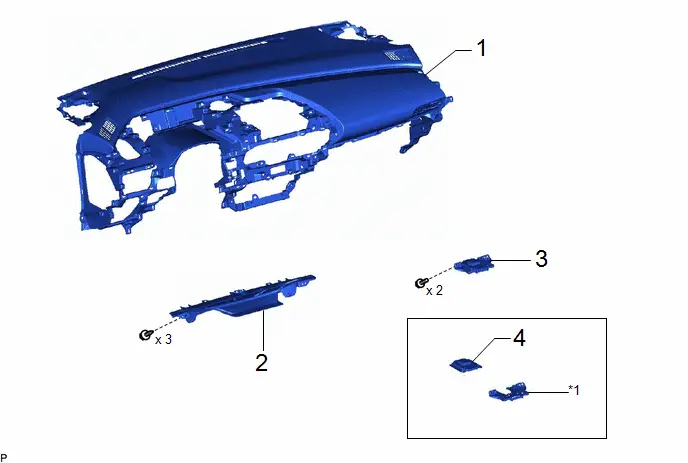

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY	-	-	-	-
2	DEFROSTER NOZZLE ASSEMBLY	55950G	-	-	-
3	TELEPHONE AND GPS ANTENNA ASSEMBLY WITH BRACKET	-	-	-	-
4	TELEPHONE AND GPS ANTENNA ASSEMBLY	86860	-	-	-

*1

TELEPHONE AND GPS ANTENNA BRACKET

-

-

PROCEDURE

1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

Click here

2. REMOVE DEFROSTER NOZZLE ASSEMBLY

Click here

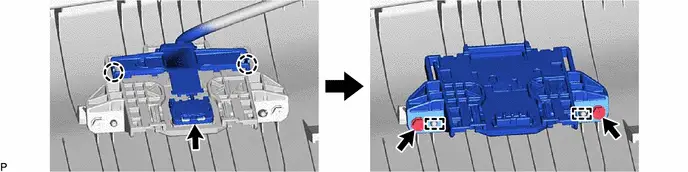

3. REMOVE TELEPHONE AND GPS ANTENNA ASSEMBLY WITH BRACKET

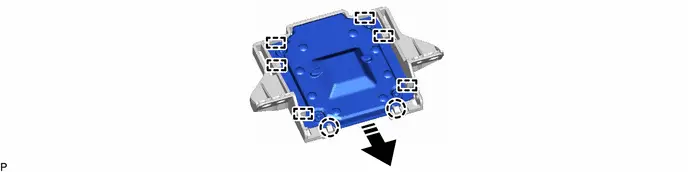

4. REMOVE TELEPHONE AND GPS ANTENNA ASSEMBLY

Remove in this Direction

-

-

Installation

INSTALLATION

CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	TELEPHONE AND GPS ANTENNA ASSEMBLY	86860	-	-	-
2	TELEPHONE AND GPS ANTENNA ASSEMBLY WITH BRACKET	-	-	-	-
3	DEFROSTER NOZZLE ASSEMBLY	55950G	-	-	-
4	INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY	-	-	-	-

*1

TELEPHONE AND GPS ANTENNA BRACKET

-

-

PROCEDURE

1. INSTALL TELEPHONE AND GPS ANTENNA ASSEMBLY

2. INSTALL TELEPHONE AND GPS ANTENNA ASSEMBLY WITH BRACKET

3. INSTALL DEFROSTER NOZZLE ASSEMBLY

4. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

Click here
