Toyota Prius (XW60) 2023-2025 Service Manual / Audio/Visual/Telematics / Audio / Video / Stereo Component Amplifier

Removal
Removal
Installation

Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during stereo component amplifier assembly removal/installation are shown below.

CAUTION:

Be sure to read Precaution thoroughly before servicing.

Click here

NOTICE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.
Click here
To prevent the key from being locked in the Toyota Prius vehicle, make sure to enter e-latch inspection mode and enable the manual release handle before disconnecting the cable from the negative (-) auxiliary battery terminal.
Click here

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used. Learning completes when Toyota Prius vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Front Camera System	Drive the Toyota Prius vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
1: w/o Power Back Door System 2: w/ Power Back Door System
Power Door Lock Control System*1 Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.
Power Back Door System*2	Reset back door close position
Air Conditioning System	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

CAUTION / NOTICE / HINT

COMPONENTS (REMOVAL)

Procedure		Part Name Code

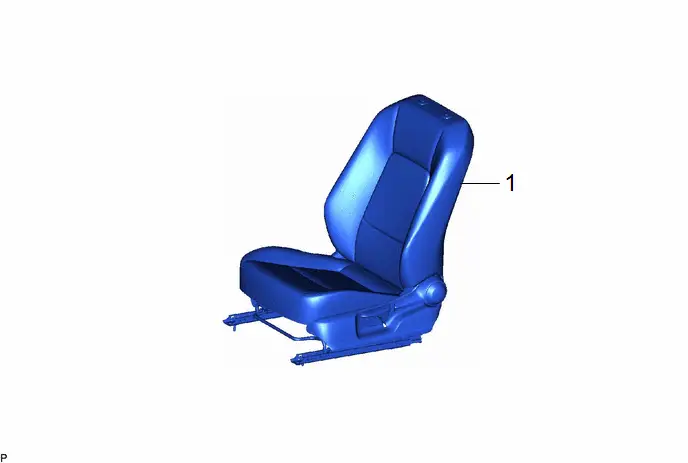

1	FRONT SEAT ASSEMBLY	-	-	-	-

Procedure		Part Name Code

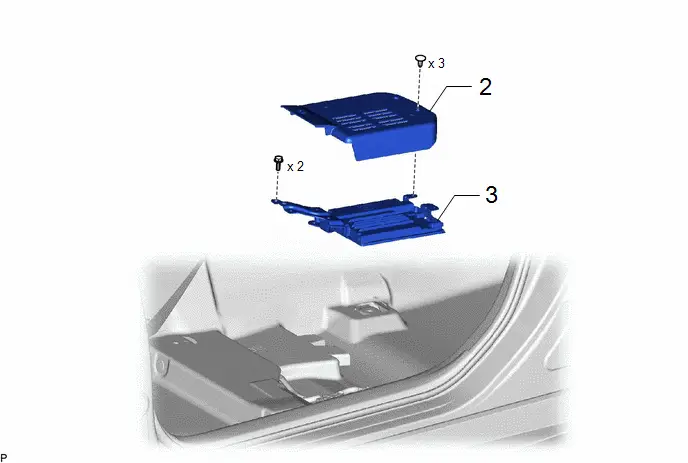

2	AUDIO AMPLIFIER COVER	86183D	-	-	-
3	STEREO COMPONENT AMPLIFIER ASSEMBLY WITH BRACKET	-	-	-	-

Procedure		Part Name Code

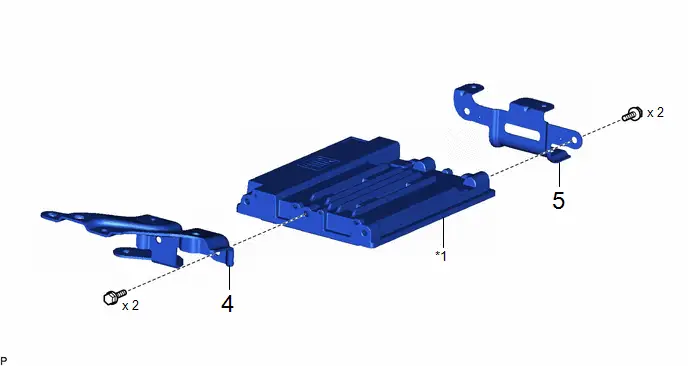

4	NO. 1 AMPLIFIER BRACKET	86285	-	-	-
5	NO. 2 AMPLIFIER BRACKET	86285F	-	-	-

STEREO COMPONENT AMPLIFIER ASSEMBLY

PROCEDURE

1. REMOVE FRONT SEAT ASSEMBLY

for Manual Seat:

Click here

for Power Seat:

Click here

2. REMOVE AUDIO AMPLIFIER COVER

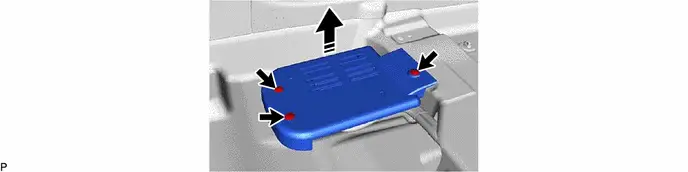

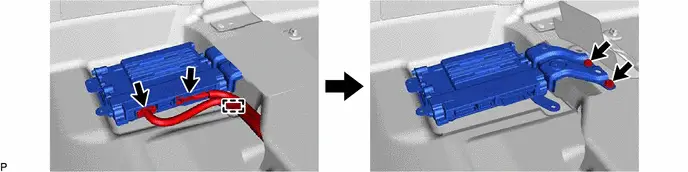

3. REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY WITH BRACKET

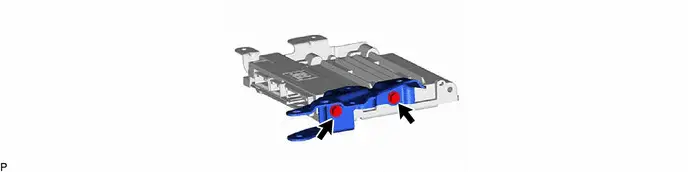

4. REMOVE NO. 1 AMPLIFIER BRACKET

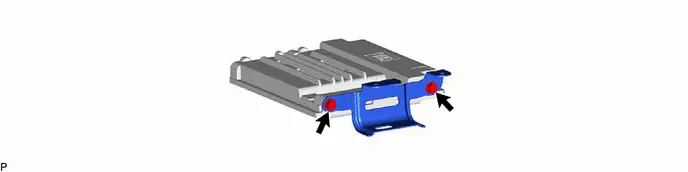

5. REMOVE NO. 2 AMPLIFIER BRACKET

Removal

REMOVAL

CAUTION / NOTICE / HINT

CAUTION:

Be sure to read Precaution thoroughly before servicing.

Click here

NOTICE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.
Click here
To prevent the key from being locked in the Toyota Prius vehicle, make sure to enter e-latch inspection mode and enable the manual release handle before disconnecting the cable from the negative (-) auxiliary battery terminal.
Click here

HINT:

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Front Camera System	Drive the Toyota Prius vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
1: w/o Power Back Door System 2: w/ Power Back Door System
Power Door Lock Control System*1 Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.
Power Back Door System*2	Reset back door close position
Air Conditioning System	for HEV Model: After the ignition switch is turned to ON, the servo motor standard position is recognized. for PHEV Model: After the ignition switch is turned to ON, the servo motor and expansion valve standard position is recognized.	-
