Toyota Prius: Stereo Jack Adapter Assembly

Removal

REMOVAL

CAUTION / NOTICE / HINT

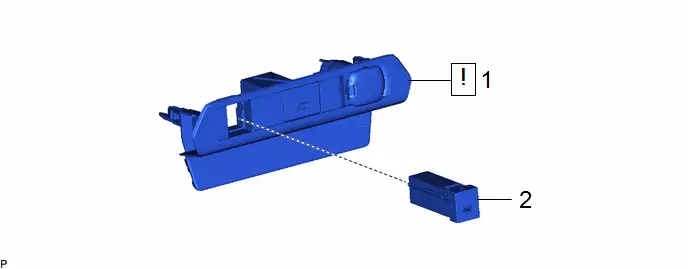

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	FRONT CONSOLE BOX COVER	58818A		-	-
2	STEREO JACK ADAPTER ASSEMBLY	86190E	-	-	-

PROCEDURE

1. REMOVE FRONT CONSOLE BOX COVER

Click here

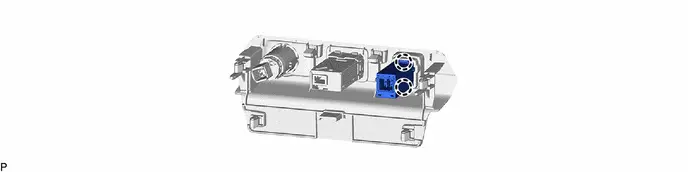

2. REMOVE STEREO JACK ADAPTER ASSEMBLY

Installation

INSTALLATION

CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	STEREO JACK ADAPTER ASSEMBLY	86190E	-	-	-
2	FRONT CONSOLE BOX COVER	58818A	-	-	-

PROCEDURE

1. INSTALL STEREO JACK ADAPTER ASSEMBLY

2. INSTALL FRONT CONSOLE BOX COVER
