Toyota Prius: Roof Antenna
Removal
REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during roof antenna removal/installation are shown below.
Necessary Procedures After Parts Removed/Installed/Replaced| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| *: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation. | |||
| w/ Occupant Classification System:
| Zero point calibration (Occupant classification system) |
|
|
CAUTION:
Be sure to read Precaution thoroughly before servicing.
Click here
NOTICE:
-

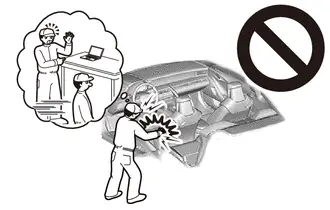

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.
Click here
HINT:
-
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used. Learning completes when Toyota Prius vehicle is driven
Learning completes when vehicle is operated normallyEffect/Inoperative Function When Necessary Procedures are not Performed
Necessary Procedures
Link
Front Camera System
Drive the Toyota Prius vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.
Effect/Inoperative Function When Necessary Procedures are not Performed
Necessary Procedures
Link
*1: w/o Power Back Door System *2: w/ Power Back Door System
Power Door Lock Control System*1
- Back door opener
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.
Power Back Door System*2
Reset back door close position
Air Conditioning System
After the ignition switch is turned to ON, the servo motor standard position is recognized.
-
CAUTION / NOTICE / HINT
COMPONENTS (REMOVAL)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | ROOF HEADLINING ASSEMBLY | - | - | - | - |
| *A | for Normal Roof | - | - |

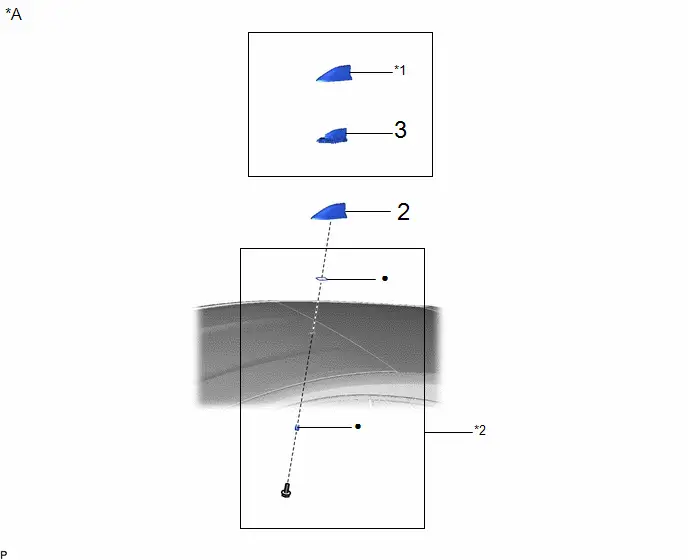

| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 2 | ROOF ANTENNA ASSEMBLY WITH COVER | - | - | - | - |
| 3 | ROOF ANTENNA ASSEMBLY | 86300J | - | - | - |
| *A | for Normal Roof | - | - |
| *1 | COVER | *2 | ROOF ANTENNA HOUSING |
| ● | Non-reusable part | - | - |

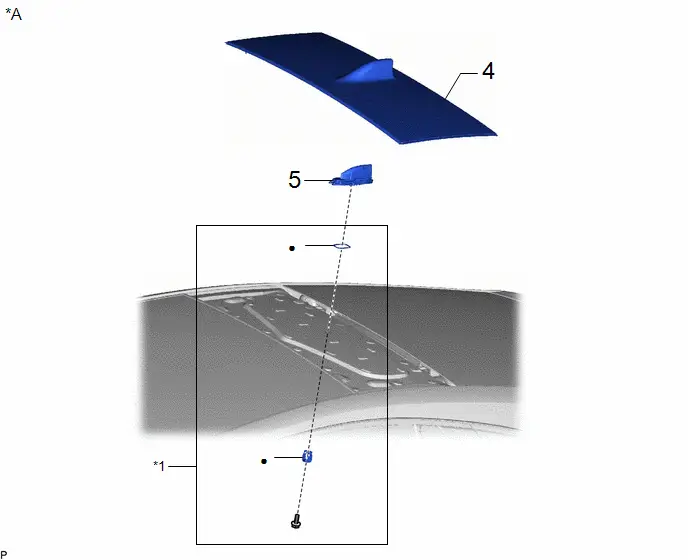

| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 4 | ROOF TOP MOULDING SUB-ASSEMBLY | 75607B | - | - | - |
| 5 | ROOF ANTENNA ASSEMBLY | 86300J | - | - | - |
| *A | for Panoramic Moon Roof | - | - |
| *1 | ROOF ANTENNA HOUSING | - | - |
| ● | Non-reusable part | - | - |
PROCEDURE
1. REMOVE ROOF HEADLINING ASSEMBLY (for Normal Roof)
Click here

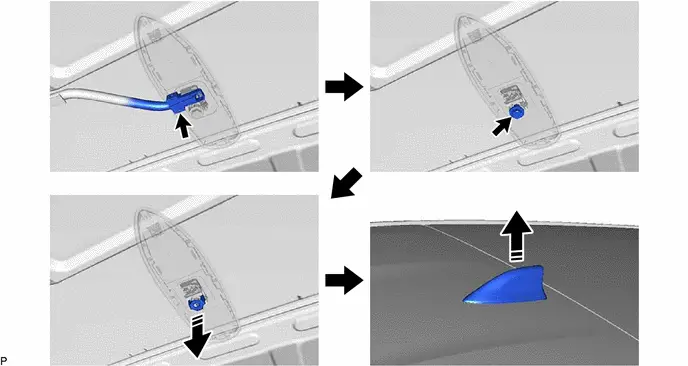

2. REMOVE ROOF ANTENNA ASSEMBLY WITH COVER (for Normal Roof)
| Remove in this Direction | - | - |

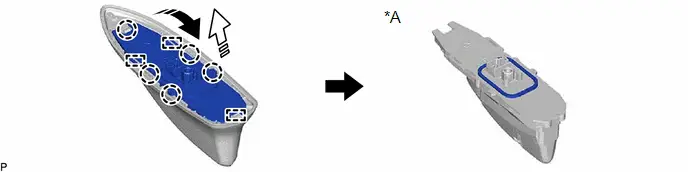

3. REMOVE ROOF ANTENNA ASSEMBLY (for Normal Roof)

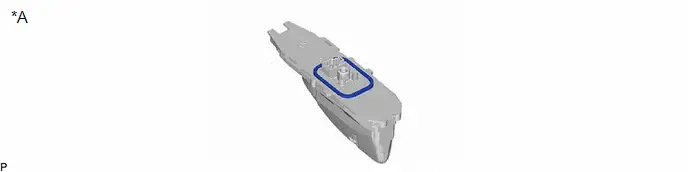

| *A | When reusing the telephone antenna assembly | - | - |
| Remove in this Direction (1) |
| Remove in this Direction (2) |
4. REMOVE ROOF TOP MOULDING SUB-ASSEMBLY (for Panoramic Moon Roof)
Click here

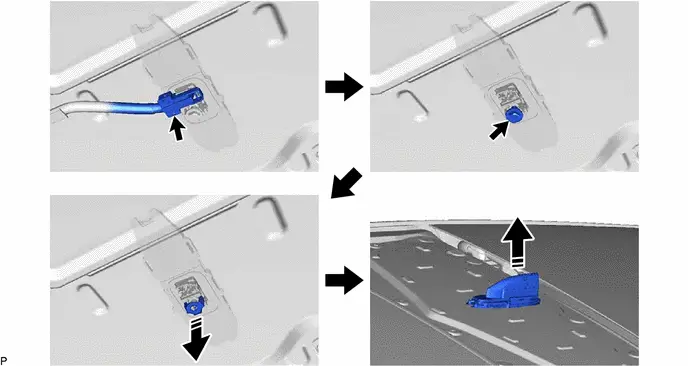

5. REMOVE ROOF ANTENNA ASSEMBLY (for Panoramic Moon Roof)
| Remove in this Direction | - | - |
| *A | When reusing the telephone antenna assembly | - | - |
| Remove in this Direction (1) | - | - |
Installation
INSTALLATION
CAUTION / NOTICE / HINT
COMPONENTS (INSTALLATION)

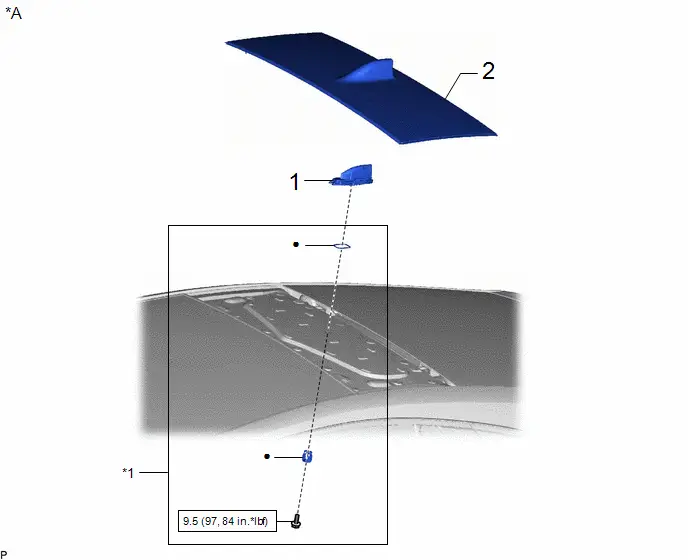

| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | ROOF ANTENNA ASSEMBLY | 86300J | - | - | - |
| 2 | ROOF TOP MOULDING SUB-ASSEMBLY | 75607B | - | - | - |
| *A | for Panoramic Moon Roof | - | - |
| *1 | ROOF ANTENNA HOUSING | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |

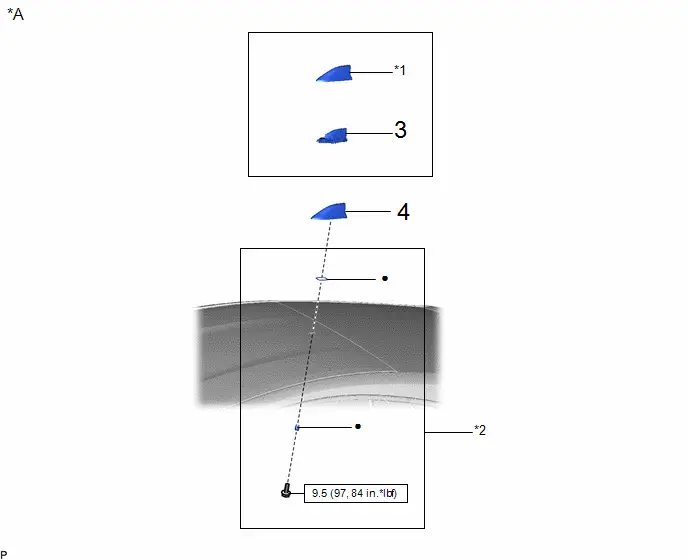

| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 3 | ROOF ANTENNA ASSEMBLY | 86300J | - | - | - |
| 4 | ROOF ANTENNA ASSEMBLY WITH COVER | - | - | - | - |
| *A | for Normal Roof | - | - |
| *1 | COVER | *2 | ROOF ANTENNA HOUSING |
| N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |

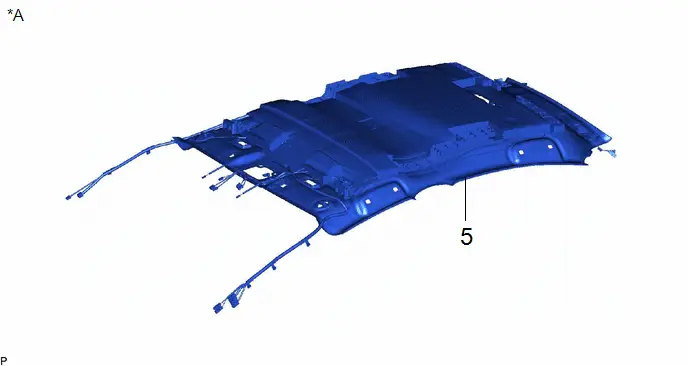

| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 5 | ROOF HEADLINING ASSEMBLY | - | - | - | - |
| *A | for Normal Roof | - | - |
PROCEDURE
1. INSTALL ROOF ANTENNA ASSEMBLY (for Panoramic Moon Roof)
Torque:
9.5 N·m {97 kgf·cm, 84 in·lbf}
2. INSTALL ROOF TOP MOULDING SUB-ASSEMBLY (for Panoramic Moon Roof)
Click here
3. INSTALL ROOF ANTENNA ASSEMBLY (for Normal Roof)
4. INSTALL ROOF ANTENNA ASSEMBLY WITH COVER (for Normal Roof)
Torque:
9.5 N·m {97 kgf·cm, 84 in·lbf}
5. INSTALL ROOF HEADLINING ASSEMBLY (for Normal Roof)
Click here
