Toyota Prius: Steering Heater Switch

• Removal
• Installation

Removal

REMOVAL

CAUTION / NOTICE / HINT

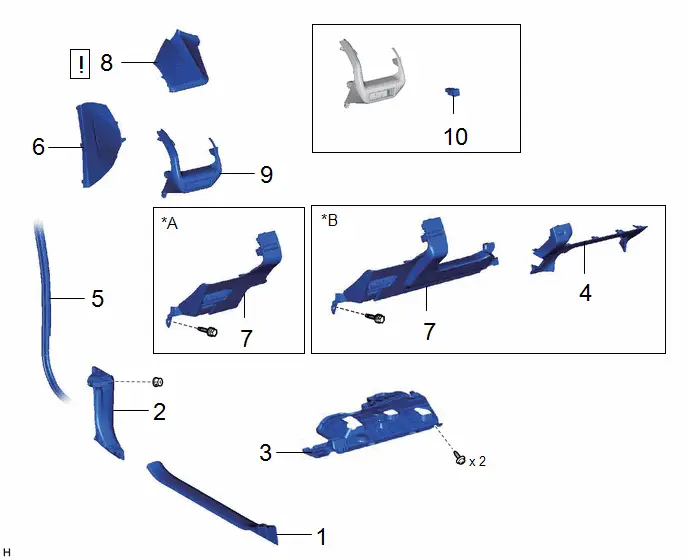

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	FRONT DOOR SCUFF PLATE	67914	-	-	-
2	COWL SIDE TRIM BOARD	62112	-	-	-
3	NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	55606	-	-	-
4	LOWER CENTER INSTRUMENT PANEL FINISH PANEL	55434B	-	-	-
5	FRONT DOOR OPENING TRIM WEATHERSTRIP	62312B	-	-	-
6	INSTRUMENT SIDE PANEL	55318C	-	-	-
7	LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY	55480D	-	-	-
8	INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY	55410C		-	-
9	NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY	55011A	-	-	-
10	STEERING HEATER SWITCH	84255	-	-	-

*A

w/ Knee Airbag

*B

w/o Knee Airbag

PROCEDURE

1. REMOVE FRONT DOOR SCUFF PLATE

Click here

2. REMOVE COWL SIDE TRIM BOARD

Click here

3. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click here

4. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL (w/o Knee Airbag)

Click here

5. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP

Click here

6. REMOVE INSTRUMENT SIDE PANEL

Click here

7. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY

Click here

8. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

Click here

9. REMOVE NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

Click here

10. REMOVE STEERING HEATER SWITCH

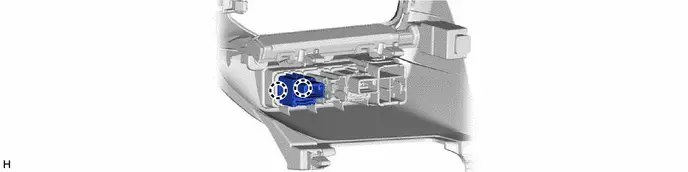

Installation

INSTALLATION

CAUTION / NOTICE / HINT

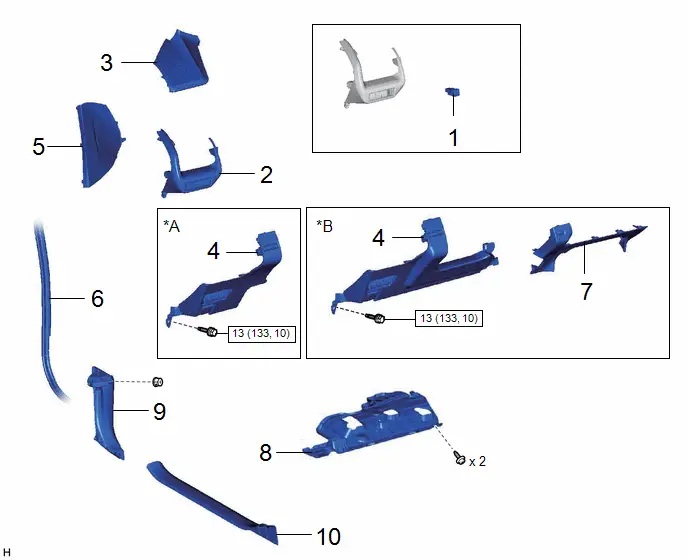

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	STEERING HEATER SWITCH	84255	-	-	-
2	NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY	55011A	-	-	-
3	INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY	55410C	-	-	-
4	LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY	55480D	-	-	-
5	INSTRUMENT SIDE PANEL	55318C	-	-	-
6	FRONT DOOR OPENING TRIM WEATHERSTRIP	62312B	-	-	-
7	LOWER CENTER INSTRUMENT PANEL FINISH PANEL	55434B	-	-	-
8	NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	55606	-	-	-
9	COWL SIDE TRIM BOARD	62112	-	-	-
10	FRONT DOOR SCUFF PLATE	67914	-	-	-

*A	w/ Knee Airbag	*B	w/o Knee Airbag
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

PROCEDURE

1. INSTALL STEERING HEATER SWITCH

2. INSTALL NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

3. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

4. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY

5. INSTALL INSTRUMENT SIDE PANEL

6. CONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP

7. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL (w/o Knee Airbag)

8. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

9. INSTALL COWL SIDE TRIM BOARD

10. INSTALL FRONT DOOR SCUFF PLATE
