Toyota Prius: Steering Pad Switch

Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during steering pad switch assembly removal/installation are shown below.

CAUTION / NOTICE / HINT

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when Toyota Prius vehicle is driven

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Front Camera System	Drive the Toyota Prius vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.

Learning completes when vehicle is operated normally

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
*1: w/o Power Back Door System *2: w/ Power Back Door System
Power Door Lock Control System*1 Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.
Power Back Door System*2	Reset back door close position
Air Conditioning System	for HEV Model: After the ignition switch is turned to ON, the servo motor standard position is recognized. for PHEV Model: After the ignition switch is turned to ON, the servo motor and cooler expansion valve standard position is recognized.	-

CAUTION / NOTICE / HINT

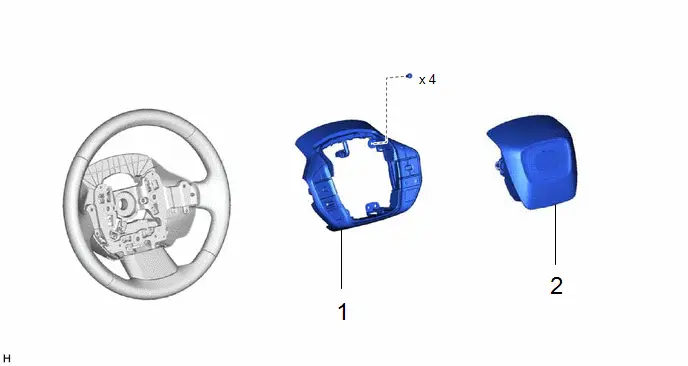

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	HORN BUTTON ASSEMBLY	45130	-	-	-
2	STEERING PAD SWITCH ASSEMBLY	84250A	-	-	-

PROCEDURE

1. REMOVE HORN BUTTON ASSEMBLY

Click here

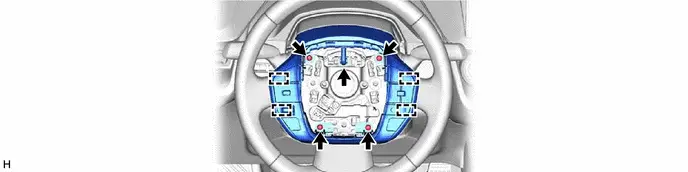

2. REMOVE STEERING PAD SWITCH ASSEMBLY

Installation

INSTALLATION

CAUTION / NOTICE / HINT

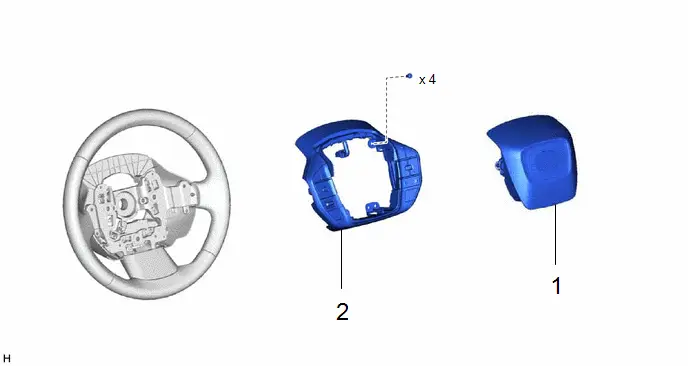

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	STEERING PAD SWITCH ASSEMBLY	84250A	-	-	-
2	HORN BUTTON ASSEMBLY	45130	-	-	-

PROCEDURE

1. INSTALL STEERING PAD SWITCH ASSEMBLY

2. INSTALL HORN BUTTON ASSEMBLY

Click here
