Toyota Prius: Solar Control Unit
Removal
REMOVAL
CAUTION / NOTICE / HINT
COMPONENTS (REMOVAL)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|

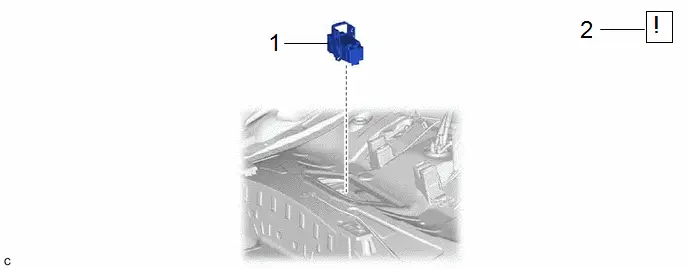

| 1 | SERVICE PLUG GRIP | G3834 | - | - | - |
| 2 | CHECK TERMINAL VOLTAGE | - |
| - | - |
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|

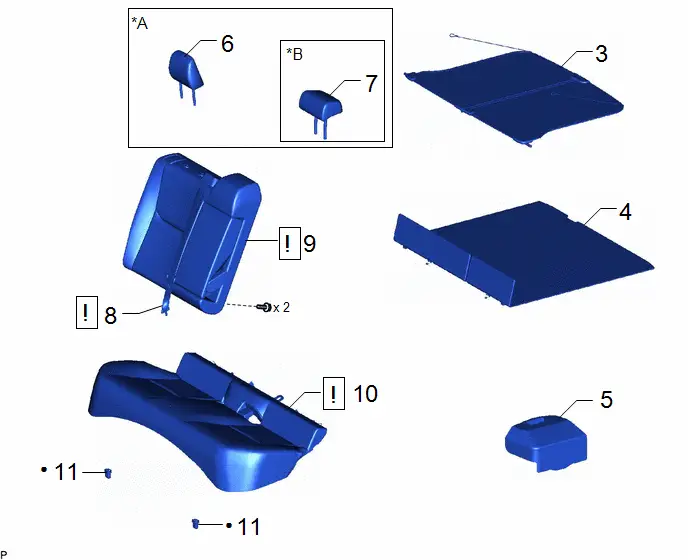

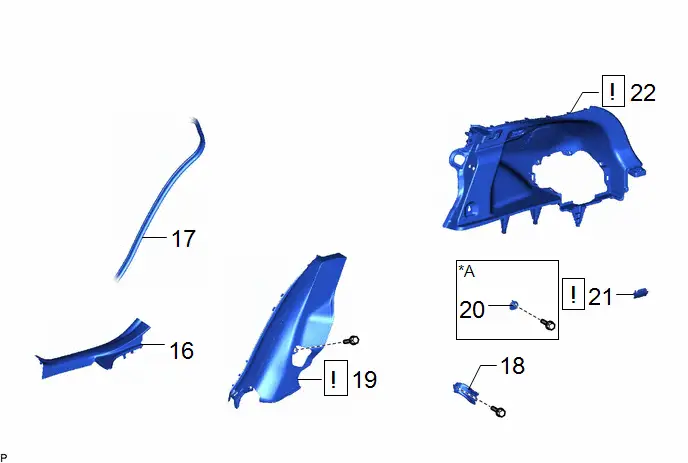

| 3 | TONNEAU COVER ASSEMBLY | 64910J | - | - | - |
| 4 | DECK BOARD ASSEMBLY | 58410B | - | - | - |
| 5 | BATTERY SERVICE HOLE COVER ASSEMBLY | 58440 | - | - | - |
| 6 | REAR SEAT HEADREST ASSEMBLY | 71940A | - | - | - |
| 7 | REAR SEAT CENTER HEADREST ASSEMBLY | 71960B | - | - | - |
| 8 | REAR CENTER SEAT OUTER BELT ASSEMBLY | 73350C |
| - | - |
| 9 | REAR SEATBACK ASSEMBLY RH | - |
| - | - |
| 10 | REAR SEAT CUSHION ASSEMBLY | - |
| - | - |
| 11 | REAR SEAT CUSHION LOCK HOOK | 72693 | - | - | - |
| *A | for RH Side | *B | w/ Center Headrest |
| ● | Non-reusable part | - | - |
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 12 | DECK FLOOR BOX RH | 64995 | - | - | - |
| 13 | DECK FLOOR BOX LH | 64997 | - | - | - |
| 14 | LUGGAGE HOLD BELT STRIKER ASSEMBLY | 58460D | - | - | - |
| 15 | REAR DECK TRIM COVER | 64716D | - | - | - |
| *A | for Rear Side | - | - |
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 16 | REAR DOOR SCUFF PLATE INSIDE RH | 67917F | - | - | - |
| 17 | REAR DOOR OPENING TRIM WEATHERSTRIP RH | 62331A | - | - | - |
| 18 | REAR SEAT BACK HINGE SUB-ASSEMBLY RH | 71303C | - | - | - |
| 19 | REAR SEAT SIDE GARNISH RH | 62551F |
| - | - |
| 20 | LUGGAGE HOLD BELT STRIKER ASSEMBLY | 58460D | - | - | - |
| 21 | NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY | 81330 |
| - | - |
| 22 | DECK TRIM SIDE PANEL ASSEMBLY RH | 64730B |
| - | - |
| *A | for RH Side | - | - |
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|

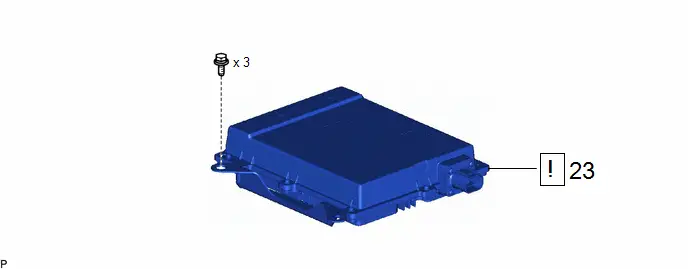

| 23 | SOLAR ENERGY CONTROL ECU ASSEMBLY | 894B0 |
| - | - |
PROCEDURE
1. REMOVE SERVICE PLUG GRIP
Click here
2. CHECK TERMINAL VOLTAGE
| Click here
|
3. REMOVE TONNEAU COVER ASSEMBLY
Click here
4. REMOVE DECK BOARD ASSEMBLY
Click here
5. REMOVE BATTERY SERVICE HOLE COVER ASSEMBLY
Click here
6. REMOVE REAR SEAT HEADREST ASSEMBLY (for RH Side)
Click here
7. REMOVE REAR SEAT CENTER HEADREST ASSEMBLY (for RH Side)
(a) w/ Center Headrest:
Click here
8. DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY
| Click here
|
9. REMOVE REAR SEATBACK ASSEMBLY RH
| Click here
|
10. REMOVE REAR SEAT CUSHION ASSEMBLY
| Click here
|
11. REMOVE REAR SEAT CUSHION LOCK HOOK
Click here
12. REMOVE DECK FLOOR BOX RH
Click here
13. REMOVE DECK FLOOR BOX LH
Click here
14. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY (for Rear Side)
Click here
15. REMOVE REAR DECK TRIM COVER
Click here
16. REMOVE REAR DOOR SCUFF PLATE INSIDE RH
(a) Use the same procedure as for the LH side.
Click here
17. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH
(a) Use the same procedure as for the LH side.
Click here
18. REMOVE REAR SEAT BACK HINGE SUB-ASSEMBLY RH
(a) Use the same procedure as for the LH side.
Click here
19. REMOVE REAR SEAT SIDE GARNISH RH
| HINT: Use the same procedure as for the LH side. Click here
|
20. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY (for RH Side)
Click here
21. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY
| Click here
|
22. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH
| HINT: Use the same procedure as for the LH side. Click here
|
23. REMOVE SOLAR ENERGY CONTROL ECU ASSEMBLY
| *a | Green-colored Lock | - | - |
| Slide | - | - |

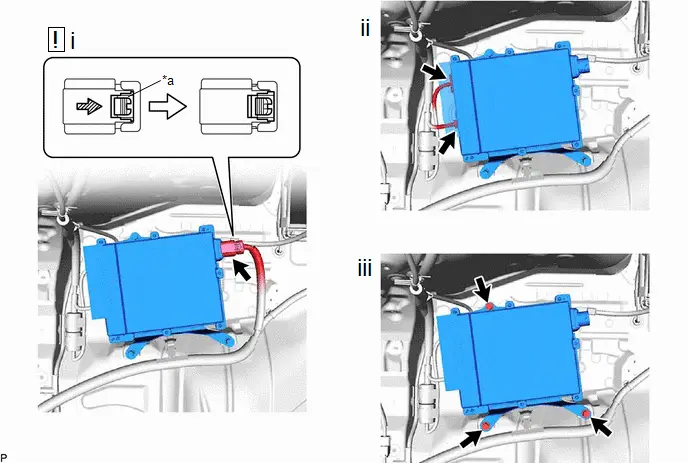

(1) Slide the green-colored lock of the connector as shown in the illustration to release it and disconnect the connector.
CAUTION:
Make sure to wear insulated gloves.
NOTICE:
Insulate the disconnected terminals and connector with insulating tape.
(2) Disconnect the 2 connectors.
(3) Remove the 3 bolts and solar energy control ECU assembly.
Installation
INSTALLATION
CAUTION / NOTICE / HINT
COMPONENTS (INSTALLATION)

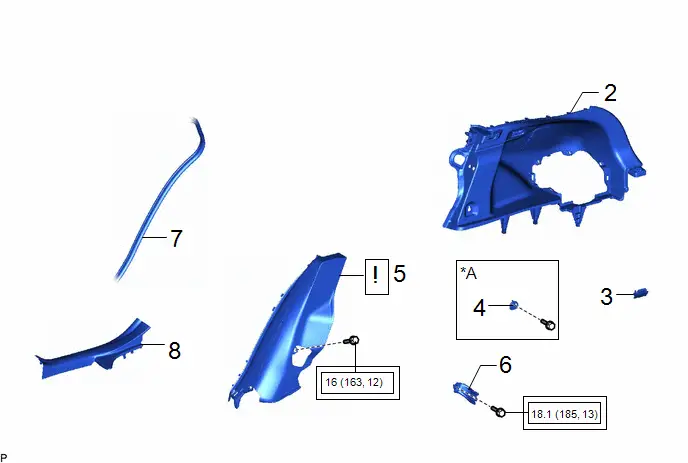

| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|

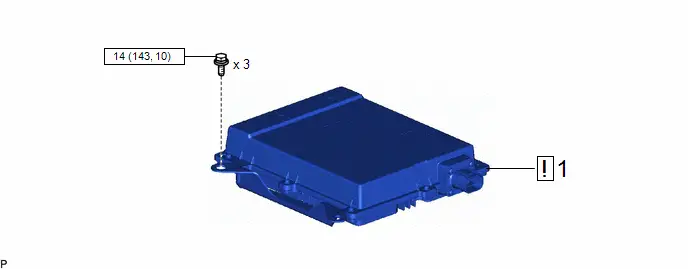

| 1 | SOLAR ENERGY CONTROL ECU ASSEMBLY | 894B0 |
| - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 2 | DECK TRIM SIDE PANEL ASSEMBLY RH | 64730B | - | - | - |
| 3 | NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY | 81330 | - | - | - |
| 4 | LUGGAGE HOLD BELT STRIKER ASSEMBLY | 58460D | - | - | - |
| 5 | REAR SEAT SIDE GARNISH RH | 62551F |
| - | - |
| 6 | REAR SEAT BACK HINGE SUB-ASSEMBLY RH | 71303C | - | - | - |
| 7 | REAR DOOR OPENING TRIM WEATHERSTRIP RH | 62331A | - | - | - |
| 8 | REAR DOOR SCUFF PLATE INSIDE RH | 67917F | - | - | - |
| *A | for RH Side | - | - |
| Tightening torque for "Major areas involving basic Toyota Prius vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|

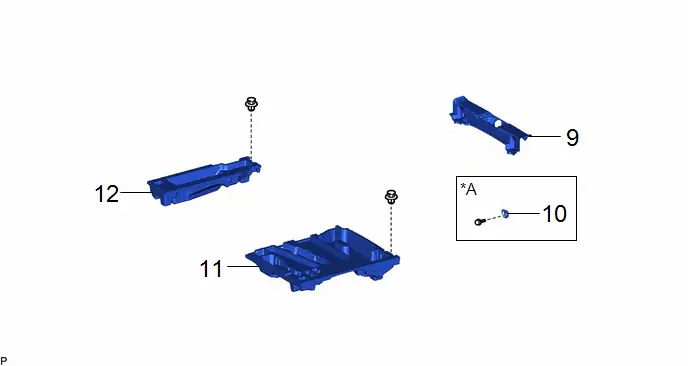

| 9 | REAR DECK TRIM COVER | 64716D | - | - | - |
| 10 | LUGGAGE HOLD BELT STRIKER ASSEMBLY | 58460D | - | - | - |
| 11 | DECK FLOOR BOX LH | 64997 | - | - | - |
| 12 | DECK FLOOR BOX RH | 64995 | - | - | - |
| *A | for Rear Side | - | - |
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 13 | REAR SEAT CUSHION LOCK HOOK | 72693 | - | - | - |
| 14 | REAR SEAT CUSHION ASSEMBLY | - |
| - | - |
| 15 | REAR SEATBACK ASSEMBLY RH | - |
| - | - |

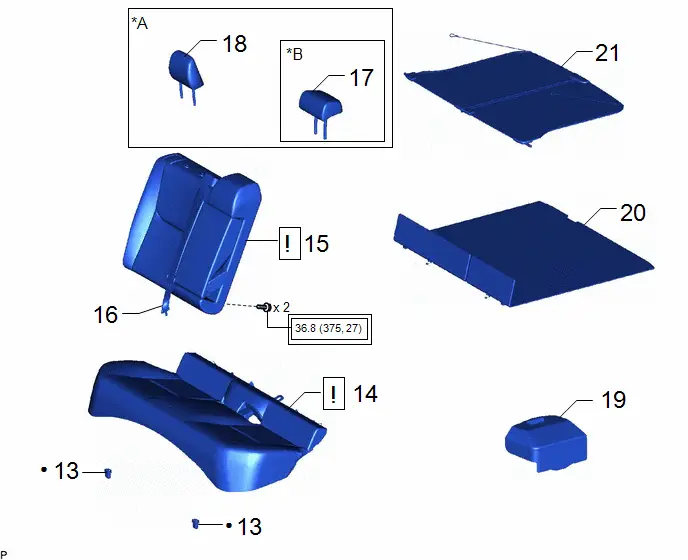

| 16 | REAR CENTER SEAT OUTER BELT ASSEMBLY | 73350C | - | - | - |
| 17 | REAR SEAT CENTER HEADREST ASSEMBLY | 71960B | - | - | - |
| 18 | REAR SEAT HEADREST ASSEMBLY | 71940A | - | - | - |
| 19 | BATTERY SERVICE HOLE COVER ASSEMBLY | 58440 | - | - | - |
| 20 | DECK BOARD ASSEMBLY | 58410B | - | - | - |
| 21 | TONNEAU COVER ASSEMBLY | 64910J | - | - | - |
| *A | for RH Side | *B | w/ Center Headrest |
| Tightening torque for "Major areas involving basic Toyota Prius vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|

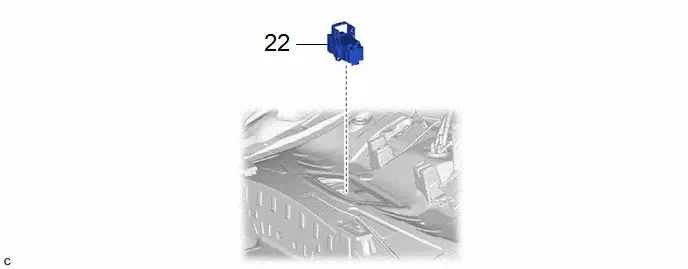

| 22 | SERVICE PLUG GRIP | G3834 | - | - | - |
PROCEDURE
1. INSTALL SOLAR ENERGY CONTROL ECU ASSEMBLY
| *a | Green-colored Lock | - | - |
| Slide | - | - |

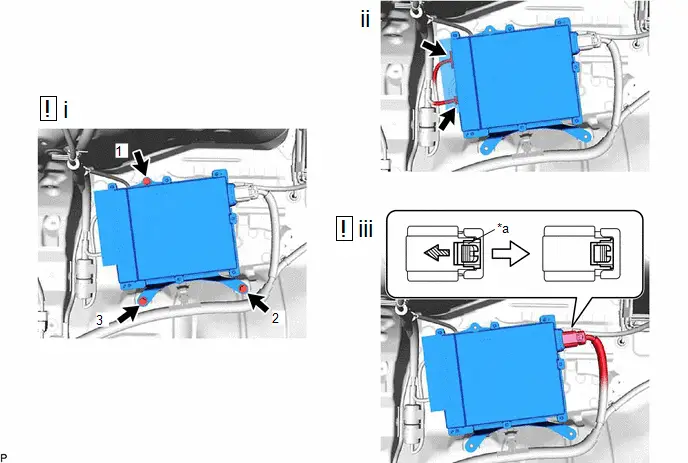

(1) Install the solar energy control ECU assembly with the 3 bolts.
Torque:
14 N·m {143 kgf·cm, 10 ft·lbf}
HINT:
Tighten the bolts in the order shown in the illustration.
(2) Connect the 2 connectors.
(3) Remove the insulating tape from the connector, and connect the connector and slide the green-colored lock as shown in the illustration to securely lock it.
CAUTION:
Make sure to wear insulated gloves.
NOTICE:
- Make sure that the connector is connected securely.
- Check that the waterproof sheet is properly set.
2. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH
3. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY
4. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY (for RH Side)
5. INSTALL REAR SEAT SIDE GARNISH RH
| HINT: Use the same procedure as for the LH side. Click here
|
6. INSTALL REAR SEAT BACK HINGE SUB-ASSEMBLY RH
Click here
7. CONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH
8. INSTALL REAR DOOR SCUFF PLATE INSIDE RH
9. INSTALL REAR DECK TRIM COVER
10. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY (for Rear Side)
11. INSTALL DECK FLOOR BOX LH
12. INSTALL DECK FLOOR BOX RH
13. INSTALL REAR SEAT CUSHION LOCK HOOK
14. INSTALL REAR SEAT CUSHION ASSEMBLY
| Click here
|
15. INSTALL REAR SEATBACK ASSEMBLY RH
| Click here
|
16. CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY
17. INSTALL REAR SEAT CENTER HEADREST ASSEMBLY (for RH Side)
18. INSTALL REAR SEAT HEADREST ASSEMBLY (for RH Side)
19. INSTALL BATTERY SERVICE HOLE COVER ASSEMBLY
20. INSTALL DECK BOARD ASSEMBLY
21. INSTALL TONNEAU COVER ASSEMBLY
22. INSTALL SERVICE PLUG GRIP
Click here
