Toyota Prius: Rear Door Speaker
Removal
REMOVAL
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
CAUTION / NOTICE / HINT

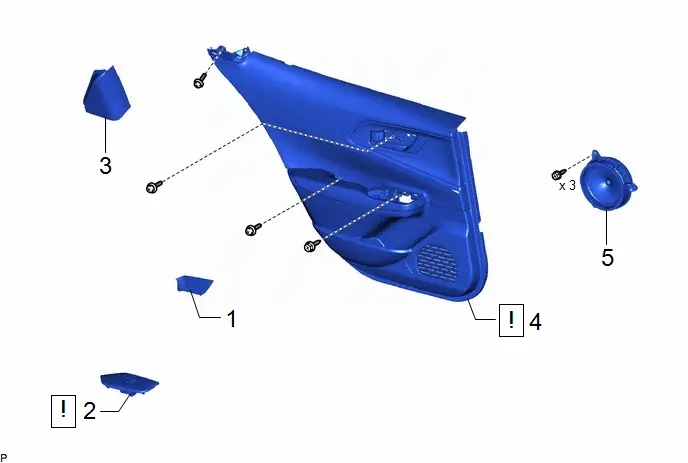

COMPONENTS (REMOVAL)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | REAR DOOR TRIM UPPER COVER | 67782D | - | - | - |
| 2 | REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL | - |
| - | - |
| 3 | REAR DOOR REAR FRAME BRACKET | 67498 | - | - | - |
| 4 | REAR DOOR TRIM BOARD SUB-ASSEMBLY | 67604 |
| - | - |
| 5 | REAR SPEAKER ASSEMBLY | 86160B | - | - | - |
PROCEDURE
1. REMOVE REAR DOOR TRIM UPPER COVER
Click here
2. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL
| Click here
|
3. REMOVE REAR DOOR REAR FRAME BRACKET
Click here
4. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY
| Click here
|

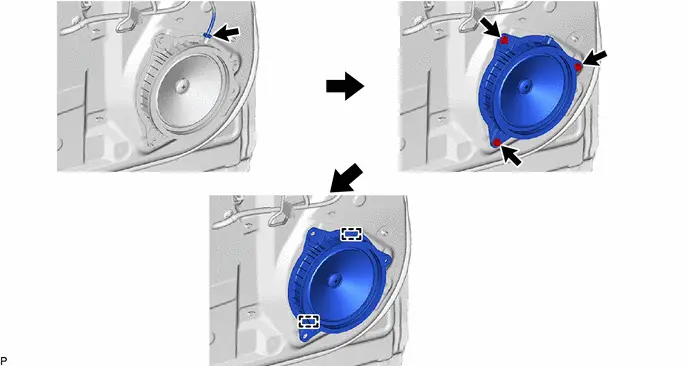

5. REMOVE REAR SPEAKER ASSEMBLY
Inspection
INSPECTION
PROCEDURE
1. INSPECT REAR SPEAKER ASSEMBLY (for LH Side)
Pre-procedure1
(a) With the speaker installed, check that there is no looseness or other abnormalities.
(b) Check that there is no foreign matter in the speaker, no tears on the speaker cone or other abnormalities.
Procedure1
(c) Measure the resistance of the speaker.
| (1) except 8 Speakers: Standard Resistance:  Click Location & Routing(M4) Click Connector(M4)
If the result is not as specified, replace the rear speaker assembly. |
|
(2) for 8 Speakers:
Standard Resistance:

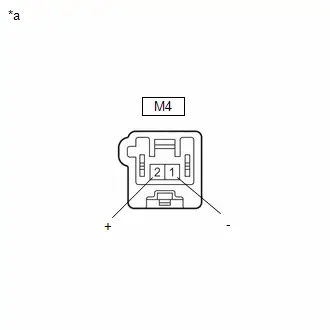

Click Location & Routing(M4) Click Connector(M4) | Tester Connection | Condition | Specified Condition | Result |
|---|---|---|---|
| M4-1 (-) - M4-2 ( ) | Always | 6.2 to 9.6 Ω | Ω |
If the result is not as specified, replace the rear speaker assembly.
Post-procedure1
(d) None.
2. INSPECT REAR SPEAKER ASSEMBLY (for RH Side)
Pre-procedure1
(a) With the speaker installed, check that there is no looseness or other abnormalities.
(b) Check that there is no foreign matter in the speaker, no tears on the speaker cone or other abnormalities.
Procedure1
(c) Measure the resistance of the speaker.
| (1) except 8 Speakers: Standard Resistance:  Click Location & Routing(L4) Click Connector(L4)
If the result is not as specified, replace the rear speaker assembly. |
|
(2) for 8 Speakers:
Standard Resistance:
Click Location & Routing(L4) Click Connector(L4) | Tester Connection | Condition | Specified Condition | Result |
|---|---|---|---|
| L4-1 (-) - L4-2 ( ) | Always | 6.2 to 9.6 Ω | Ω |
If the result is not as specified, replace the rear speaker assembly.
Post-procedure1
(d) None.
Installation
INSTALLATION
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
CAUTION / NOTICE / HINT

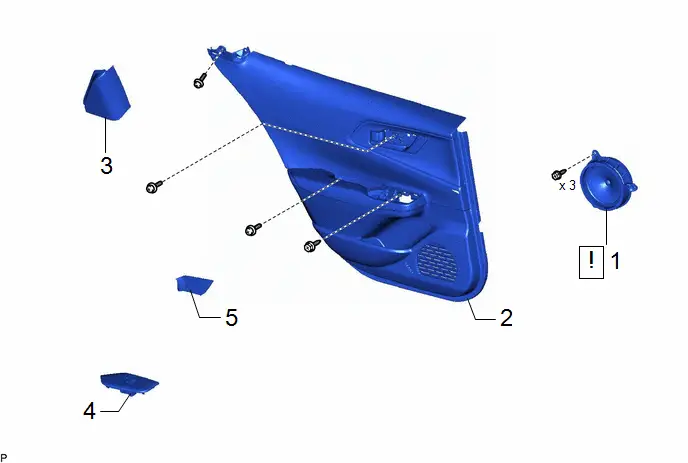

COMPONENTS (INSTALLATION)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | REAR SPEAKER ASSEMBLY | 86160B |
| - | - |
| 2 | REAR DOOR TRIM BOARD SUB-ASSEMBLY | 67604 | - | - | - |
| 3 | REAR DOOR REAR FRAME BRACKET | 67498 | - | - | - |
| 4 | REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL | - | - | - | - |
| 5 | REAR DOOR TRIM UPPER COVER | 67782D | - | - | - |
PROCEDURE

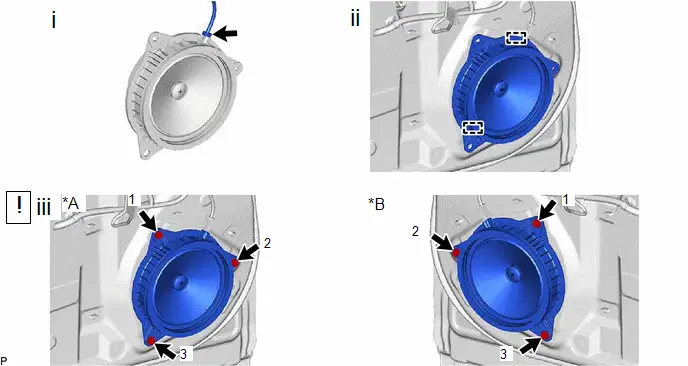

1. INSTALL REAR SPEAKER ASSEMBLY
| *A | for LH Side | *B | for RH Side |
(1) Connect the connector.
(2) Engage the 2 guides to temporarily install the rear speaker assembly.
(3) Install the rear speaker assembly with the 3 screws.
HINT:
Install the screws in the order shown in the illustration.
2. INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY
3. INSTALL REAR DOOR REAR FRAME BRACKET
4. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL
5. INSTALL REAR DOOR TRIM UPPER COVER
