Toyota Prius: Relay

On-vehicle Inspection

ON-VEHICLE INSPECTION

PROCEDURE

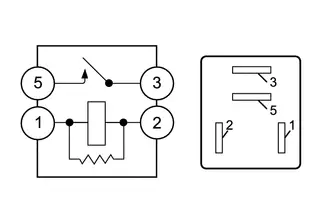

1. INSPECT DEICER RELAY

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition	Result
3 - 5	Auxiliary battery voltage applied between terminals 1 and 2	Below 1 Ω	Ω
3 - 5	Auxiliary battery voltage not applied between terminals	10 kΩ or higher	kΩ

If the result is not as specified, replace the deicer relay.
