Toyota Prius: Rear Power Window Switch

Removal

REMOVAL

CAUTION / NOTICE / HINT

CAUTION / NOTICE / HINT

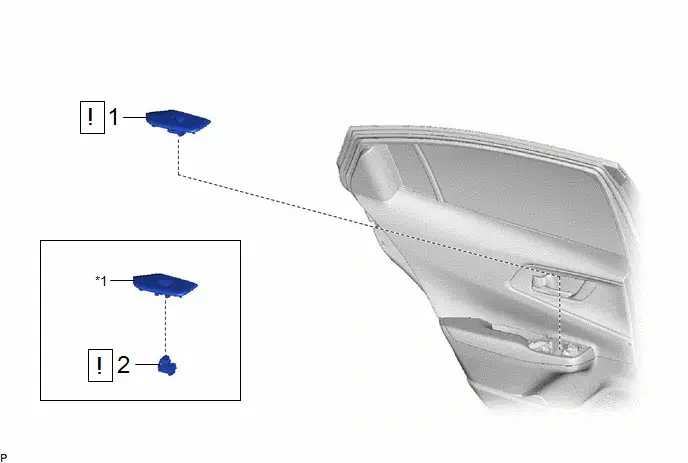

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL	-		-	-
2	REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY	84810D		-	-

*1

REAR DOOR ARMREST BASE PANEL

-

-

PROCEDURE

1. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL

Click here

2. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

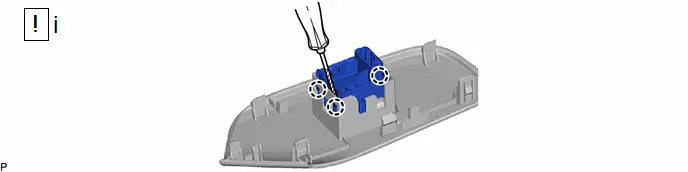

(1) Using a screwdriver with its tip wrapped with protective tape, disengage the 3 claws to remove the rear power window regulator switch assembly.

Inspection

INSPECTION

PROCEDURE

1. INSPECT REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY (for LH/RH DOOR)

(a) Check the switch function.

(1) Measure the resistance according to the value(s) in the table below. Standard Resistance: Click Location & Routing(M3) Click Connector(M3) Tester Connection Condition Specified Condition Result M3-5 (UP) - M3-7 (GND) Auto up or manual up position Below 100 Ω Ω M3-4 (DOWN) - M3-7 (GND) Auto down or manual down position Below 100 Ω Ω M3-8 (AUTO) - M3-7 (GND) Auto up or auto down position Below 100 Ω Ω M3-5 (UP) - M3-7 (GND) Off 10 kΩ or higher kΩ M3-4 (DOWN) - M3-7 (GND) Off 10 kΩ or higher kΩ M3-8 (AUTO) - M3-7 (GND) Off 10 kΩ or higher kΩ If the result is not as specified, replace the rear power window regulator switch assembly (for LH/RH door).

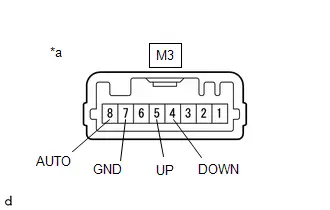

*a Component without harness connected (Rear Power Window Regulator Switch Assembly (for LH/RH Door))

(b) Check that the LED illuminates.

(1) Apply auxiliary battery voltage to the power window regulator switch assembly and check that the LED illuminates. OK: Battery Connection Specified Condition Auxiliary battery positive ( ) → M3-6 (LED) Auxiliary battery negative (-) → M3-7 (GND) LED illuminates If the result is not as specified, replace the rear power window regulator switch assembly (for LH/RH door).

*a Component without harness connected (Rear Power Window Regulator Switch Assembly (for LH/RH Door))

Installation

INSTALLATION

CAUTION / NOTICE / HINT

CAUTION / NOTICE / HINT

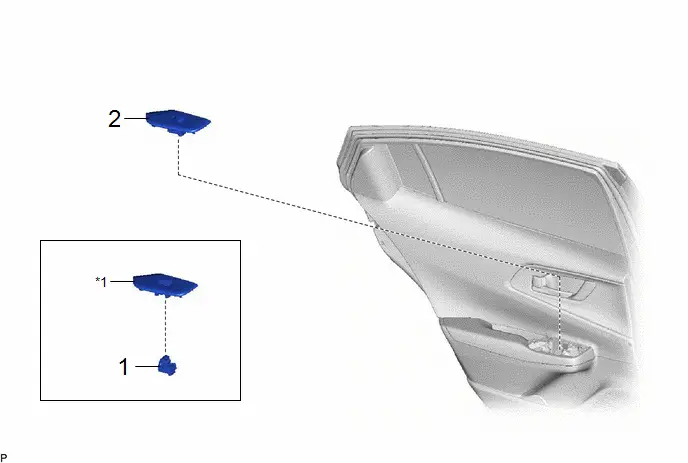

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY	84810D	-	-	-
2	REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL	-	-	-	-

*1

REAR DOOR ARMREST BASE PANEL

-

-

PROCEDURE

1. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

2. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL
