REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear stabilizer bar removal/installation are shown below.
Necessary Procedures After Parts Removed/Installed/Replaced Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
---|---|---|---|
*1: Also necessary after performing a tire rotation.
*2: It is not necessary to perform this procedure if the tire pressure warning valve and transmitters are installed to the same location. *3: The Toyota Prius vehicle height changes because of suspension or tire replacement. | |||
Tires |
| Tire Pressure Warning System | Refer to Procedures Necessary When Replacing Parts (for Tire Pressure Warning System)
|
Rear television camera assembly optical axis (Back camera position setting)*3 | Parking Assist Monitor System |
| |
Parking assist ECU initialization*3 | Panoramic View Monitor System |
| |
Advanced Park |
|
CAUTION / NOTICE / HINT

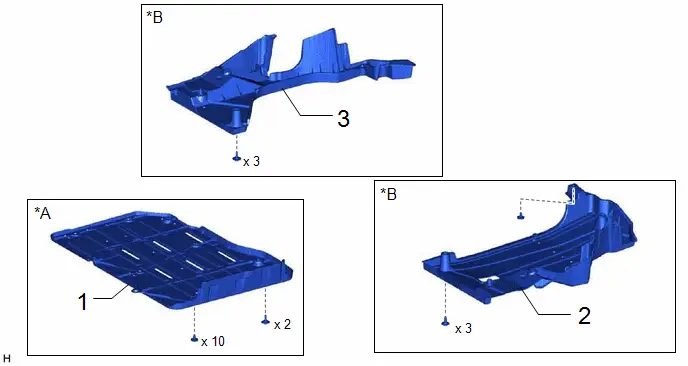

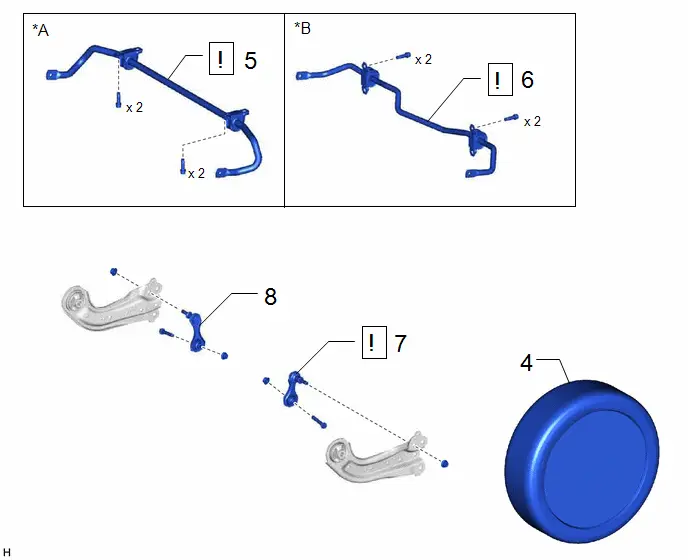

COMPONENTS (REMOVAL) Procedure | Part Name Code |
![]() |
![]() |
![]() | |
---|---|---|---|---|---|
1 | BATTERY BOX COVER | 58219K | - | - | - |
2 | REAR FLOOR SIDE MEMBER COVER LH | 57628E | - | - | - |
3 | REAR FLOOR SIDE MEMBER COVER RH | 57627G | - | - | - |
*A | for PHEV Model | *B | for HEV Model |
Procedure | Part Name Code |
![]() |
![]() |
![]() | |
---|---|---|---|---|---|
4 | REAR WHEEL | - | - | - | - |
5 | REAR STABILIZER BAR (for HEV Model 2WD) | 48812 |
| - | - |
6 | REAR STABILIZER BAR (for HEV Model AWD, PHEV Model) | 48812 |
| - | - |
7 | SEPARATE REAR STABILIZER LINK ASSEMBLY LH | 48840A |
| - | - |
8 | SEPARATE REAR STABILIZER LINK ASSEMBLY RH | 48830D | - | - | - |
*A | for HEV Model 2WD | *B | for HEV Model AWD, PHEV Model |
PROCEDURE
1. REMOVE BATTERY BOX COVER (for PHEV Model)
Click here
2. REMOVE REAR FLOOR SIDE MEMBER COVER LH (for HEV Model)
Click here
3. REMOVE REAR FLOOR SIDE MEMBER COVER RH (for HEV Model)
Click here
4. REMOVE REAR WHEEL
Click here

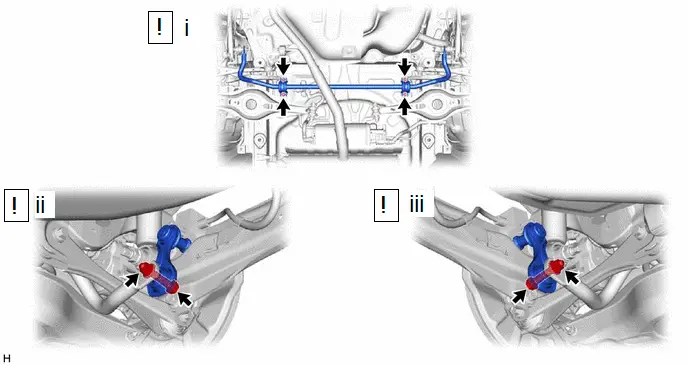

5. REMOVE REAR STABILIZER BAR (for HEV Model 2WD)
(1) Remove the 4 bolts and rear stabilizer bar sub-assembly from the rear suspension member sub-assembly.
(2) Remove the bolt and nut, and separate the rear stabilizer bar sub-assembly from the rear stabilizer link assembly LH.
NOTICE:
Loosen the nut with the bolt secured.
(3) Remove the bolt and nut, and remove the rear stabilizer bar sub-assembly from the rear stabilizer link assembly RH.
NOTICE:
Loosen the nut with the bolt secured.

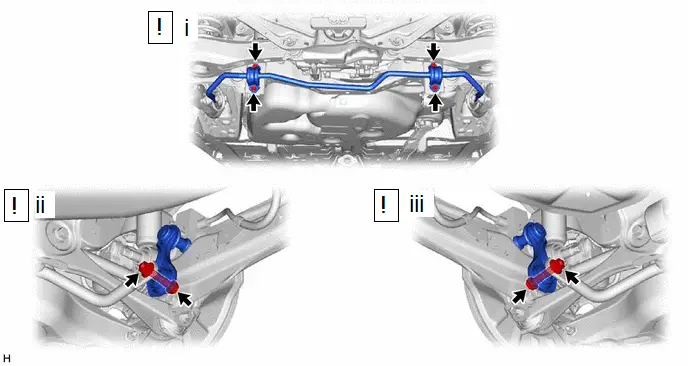

6. REMOVE REAR STABILIZER BAR (for HEV Model AWD, PHEV Model)
(1) Remove the 4 bolts and rear stabilizer bar sub-assembly from the rear suspension member sub-assembly.
(2) Remove the bolt and nut, and separate the rear stabilizer bar sub-assembly from the rear stabilizer link assembly LH.
NOTICE:
Loosen the nut with the bolt secured.
(3) Remove the bolt and nut, and remove the rear stabilizer bar sub-assembly from the rear stabilizer link assembly LH.
NOTICE:
Loosen the nut with the bolt secured.

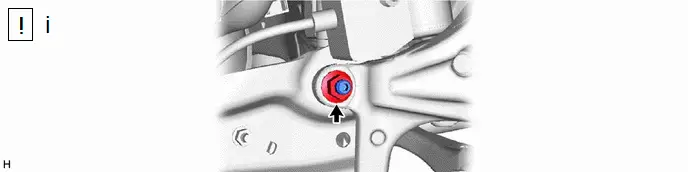

7. REMOVE REAR STABILIZER LINK ASSEMBLY LH
(1) Remove the nut and rear stabilizer link assembly LH from the rear trailing arm assembly.
HINT:
If the ball joint turns together with the nut, use a 6 mm hexagon socket wrench to hold the stud bolt.
8. REMOVE REAR STABILIZER LINK ASSEMBLY RH
(a) Perform the same procedure as for the LH side.
INSPECTION
PROCEDURE
1. INSPECT REAR STABILIZER LINK ASSEMBLY

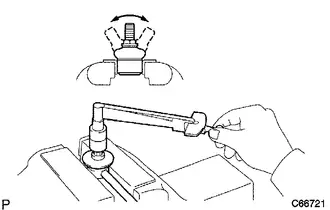

(a) Inspect the turning torque of the ball joint. (1) Secure the rear stabilizer link assembly in a vise using aluminum plates. NOTICE: Do not overtighten the vise. (2) Install the nut to the rear stabilizer link assembly stud. (3) Move the stud back and forth several times. Using a torque wrench, turn the stud continuously at a rate of 3 to 5 seconds per turn and take the torque reading on the 5th turn. Standard Turning Torque
(4) Turn the stud to check that the stud does not catch and there is no play. (5) If the turning torque is not within the specified range, replace the rear stabilizer link assembly with a new one. |
|
(b) Inspect the dust cover.
(1) Check that the dust cover is not cracked and that there is no grease on it.
(2) If the dust cover is cracked or there is grease on it, replace the rear stabilizer link assembly with a new one.
INSTALLATION
CAUTION / NOTICE / HINT

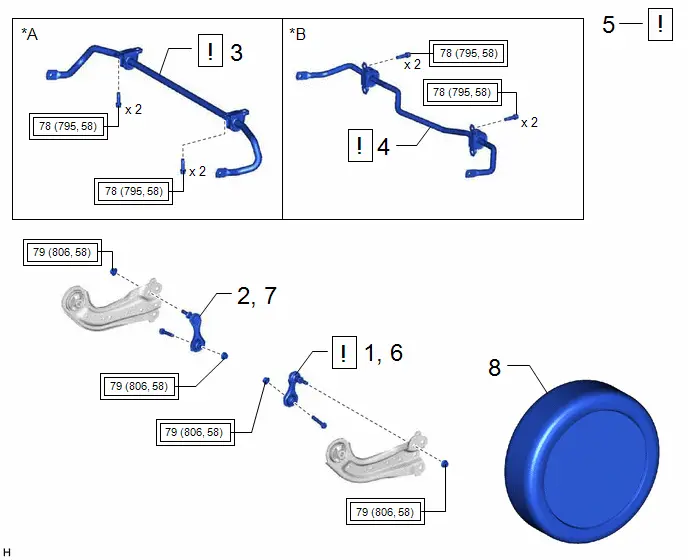

COMPONENTS (INSTALLATION) Procedure | Part Name Code |
![]() |
![]() |
![]() | |
---|---|---|---|---|---|
1 | REAR STABILIZER LINK ASSEMBLY LH | 48840A |
| - | - |
2 | REAR STABILIZER LINK ASSEMBLY RH | 48830D | - | - | - |
3 | REAR STABILIZER BAR (for HEV Model 2WD) | 48812 |
| - | - |
4 | REAR STABILIZER BAR (for HEV Model AWD, PHEV Model) | 48812 |
| - | - |
5 | STABILIZE SUSPENSION | - | - | - | - |
6 | REAR STABILIZER LINK ASSEMBLY LH | 48840A |
| - | - |
7 | REAR STABILIZER LINK ASSEMBLY RH | 48830D | - | - | - |
8 | REAR WHEEL | - | - | - | - |
*A | for HEV Model 2WD | *B | for HEV Model AWD, PHEV Model |
![]() | Tightening torque for "Major areas involving basic Toyota Prius vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |

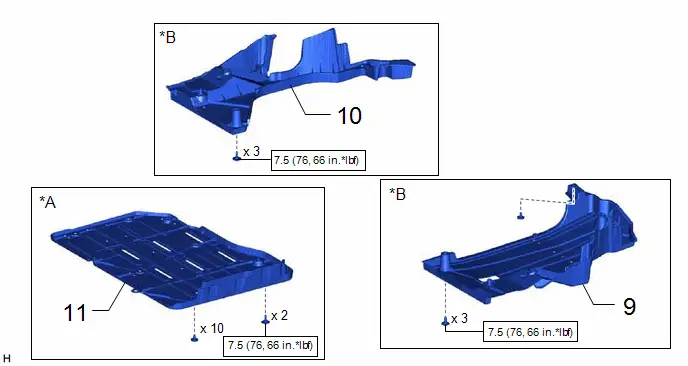

Procedure | Part Name Code |
![]() |
![]() |
![]() | |
---|---|---|---|---|---|
9 | REAR FLOOR SIDE MEMBER COVER LH | 57628E | - | - | - |
10 | REAR FLOOR SIDE MEMBER COVER RH | 57627G | - | - | - |
11 | BATTERY BOX COVER | 58219K | - | - | - |
![]() | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
PROCEDURE
1. INSTALL REAR STABILIZER LINK ASSEMBLY LH
(1) Install the rear stabilizer link assembly LH to the rear trailing arm assembly with the nut.
Torque:
79 N·m {806 kgf·cm, 58 ft·lbf}
HINT:
If the ball joint turns together with the nut, use a 6 mm hexagon socket wrench to hold the stud bolt.
2. INSTALL REAR STABILIZER LINK ASSEMBLY RH

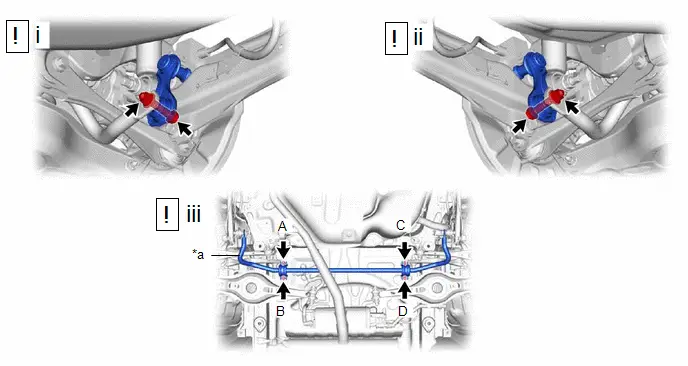

3. INSTALL REAR STABILIZER BAR (for HEV Model 2WD)
*a | Identification Mark | - | - |

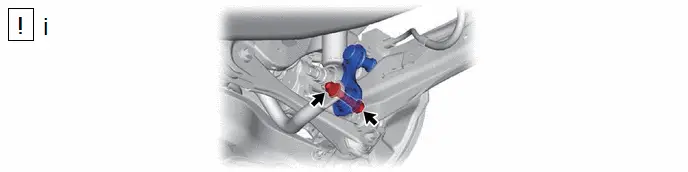

(1) Temporarily Install the rear stabilizer bar sub-assembly to the rear stabilizer link assembly LH with the bolt and nut.
NOTICE:
Tighten the nut with the bolt secured.
(2) Temporarily Install the rear stabilizer bar sub-assembly to the rear stabilizer link assembly RH with the bolt and nut.
NOTICE:
Tighten the nut with the bolt secured.
(3) Install the rear stabilizer bar sub-assembly to the rear suspension member sub-assembly with the 4 bolts.
Torque:
78 N·m {795 kgf·cm, 58 ft·lbf}
NOTICE:

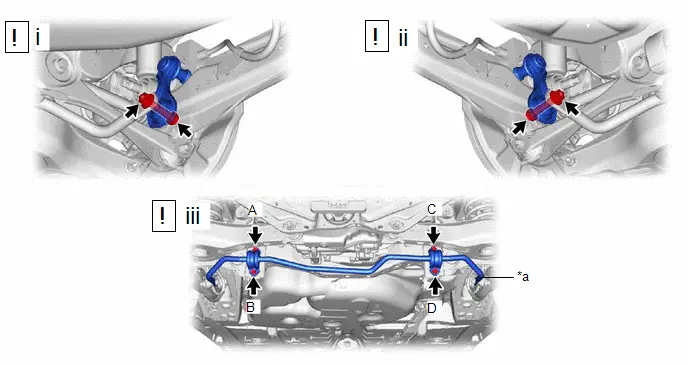

4. INSTALL REAR STABILIZER BAR (for HEV Model AWD, PHEV Model)
*a | Identification Mark | - | - |
(1) Temporarily Install the rear stabilizer bar sub-assembly to the rear stabilizer link assembly LH with the bolt and nut.
NOTICE:
Tighten the nut with the bolt secured.
(2) Temporarily Install the rear stabilizer bar sub-assembly to the rear stabilizer link assembly RH with the bolt and nut.
NOTICE:
Tighten the nut with the bolt secured.
(3) Install the rear stabilizer bar sub-assembly to the rear suspension member sub-assembly with the 4 bolts.
Torque:
78 N·m {795 kgf·cm, 58 ft·lbf}
NOTICE:
5. STABILIZE SUSPENSION
![]() | Click here
|
6. INSTALL REAR STABILIZER LINK ASSEMBLY LH
(1) Fully tighten the rear stabilizer link assembly LH with the nut.
Torque:
79 N·m {806 kgf·cm, 58 ft·lbf}
NOTICE:
Tighten the nut with the bolt secured.
7. INSTALL REAR STABILIZER LINK ASSEMBLY RH
8. INSTALL REAR WHEEL
Click here
9. INSTALL REAR FLOOR SIDE MEMBER COVER LH (for HEV Model)
Click here
10. INSTALL REAR FLOOR SIDE MEMBER COVER RH (for HEV Model)
Click here
11. INSTALL BATTERY BOX COVER (for PHEV Model)
Click here
