Removal

REMOVAL

CAUTION / NOTICE / HINT

HINT:

Use the same procedure for the RH side and LH side.
The following procedure is for the LH side.

CAUTION / NOTICE / HINT

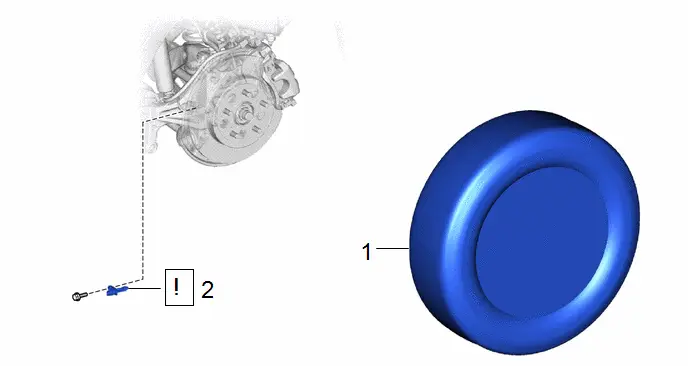

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	REAR WHEEL	-	-	-	-
2	REAR SKID CONTROL SENSOR	89544E		-	-

PROCEDURE

1. REMOVE REAR WHEEL

Click here

2. REMOVE REAR SKID CONTROL SENSOR

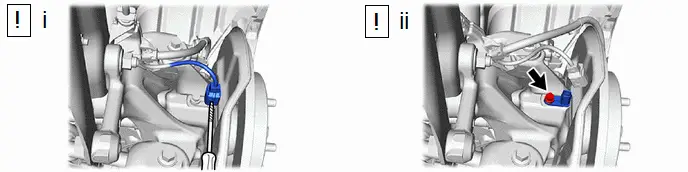

(1) Using a screwdriver with its tip wrapped with protective tape, Disconnect the rear skid control sensor connector from the rear skid control sensor.

NOTICE:

Remove any dirt or foreign matter on and around the rear speed sensor connector before performing this step.
Be careful not to damage the rear speed sensor or connector cover.

(2) Remove the bolt and rear skid control sensor from the rear axle carrier sub-assembly.

NOTICE:

Keep the tip of the rear skid control sensor and installation hole free of foreign matter.
Do not rotate or apply excessive force to the rear skid control sensor when removing it from the rear axle carrier sub-assembly. Rotating or applying excessive force may result in damage to the rear speed sensor.

Installation

INSTALLATION

CAUTION / NOTICE / HINT

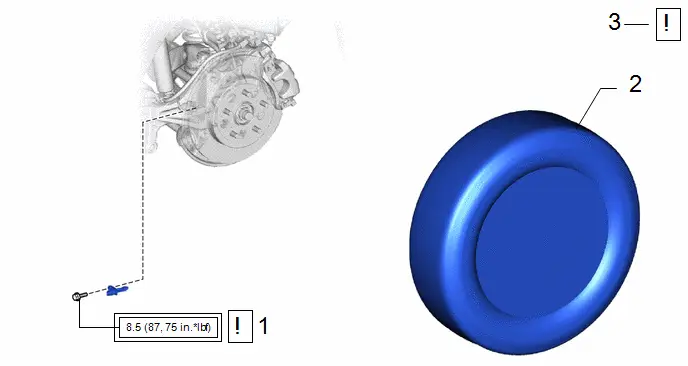

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	REAR SKID CONTROL SENSOR	89544E		-	-
2	REAR WHEEL	-	-	-	-
3	CHECK FOR SPEED SENSOR SIGNAL	-		-	-

Tightening torque for "Major areas involving basic Toyota Prius vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

CAUTION / NOTICE / HINT

HINT:

Use the same procedure for the RH side and LH side.
The following procedure is for the LH side.

PROCEDURE

1. INSTALL REAR SKID CONTROL SENSOR

NOTICE:

Keep the tip of the rear skid control sensor and installation hole free of foreign matter.
Firmly insert the rear speed sensor body into the rear axle carrier sub-assembly before tightening the bolt.
After installing the rear speed sensor to the rear axle carrier sub-assembly, make sure that there is no clearance between the rear speed sensor stay and rear axle carrier sub-assembly. Also make sure that no foreign matter is stuck between the parts.

Torque:

8.5 N·m {87 kgf·cm, 75 in·lbf}

2. INSTALL REAR WHEEL

Click here
