Toyota Prius: Steering Angle Sensor

• Removal
• Installation

Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during steering angle sensor removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Steering sensor	Update ECU security key	Toyota Prius Vehicle Control History (RoB) are stored

NOTICE:

If both the spiral cable sub-assembly and the steering sensor are malfunctioning, replace them with a new spiral cable with sensor sub-assembly.

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when Toyota Prius vehicle is driven

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Front Camera System	Drive the Toyota Prius vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.

Learning completes when vehicle is operated normally

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
*1: w/o Power Back Door System *2: w/ Power Back Door System
Power Door Lock Control System*1 Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.
Power Back Door System*2	Reset back door close position
Air Conditioning System	for HEV Model: After the ignition switch is turned to ON, the servo motor standard position is recognized. for PHEV Model: After the ignition switch is turned to ON, the servo motor and expansion valve standard position is recognized.	-

CAUTION / NOTICE / HINT

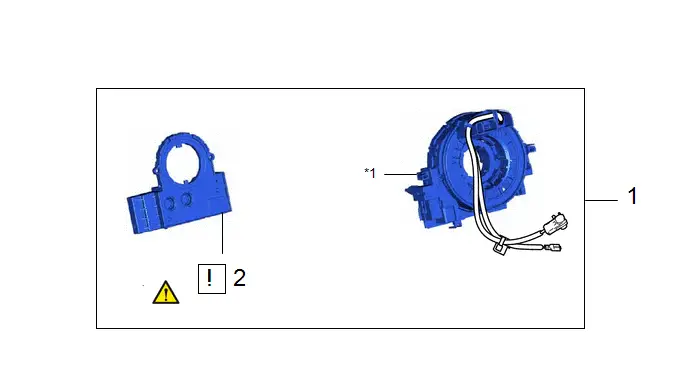

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY	-	-	-	-
2	STEERING SENSOR	89245B		-	-

*1

SPIRAL CABLE SUB-ASSEMBLY

-

-

PROCEDURE

1. REMOVE SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

Click here

2. REMOVE STEERING SENSOR

NOTICE: Remove the steering sensor from the spiral cable sub-assembly only when replacing the spiral cable sub-assembly or the steering sensor. Removing the steering sensor from the spiral cable sub-assembly without using a lock pin may result in the center position of the steering sensor becoming misaligned. Therefore, make sure to use the lock pin provided with a new spiral cable sub-assembly when removing the steering sensor from the spiral cable sub-assembly. When replacing the spiral cable sub-assembly:

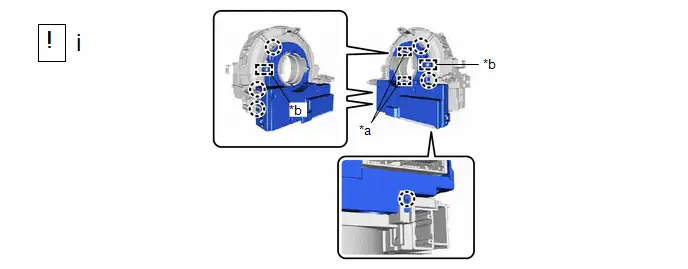

*a

Guide

*b

Pin

(1) Disengage the 6 claws, 2 guides and 2 pins, and remove the steering sensor from the spiral cable sub-assembly.

NOTICE:

Do not damage the claws or pins of the spiral cable sub-assembly.

Installation

INSTALLATION

CAUTION / NOTICE / HINT

CAUTION / NOTICE / HINT

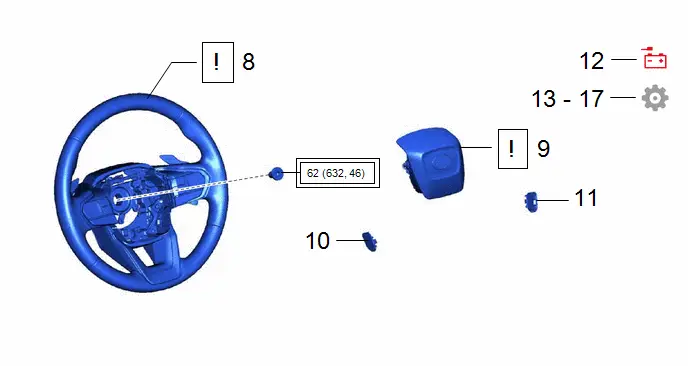

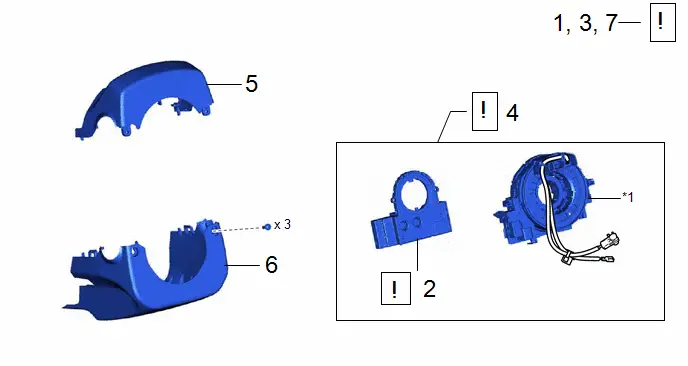

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	INSPECT SPIRAL CABLE SUB-ASSEMBLY	84306		-	-
2	STEERING SENSOR	89245B		-	-
3	SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY	-		-	-
4	UPPER STEERING COLUMN COVER	45286B	-	-	-
5	LOWER STEERING COLUMN COVER	45287	-	-	-
6	ALIGN FRONT WHEELS FACING STRAIGHT AHEAD	-		-	-
7	ADJUST SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY	84306		-	-

*1

SPIRAL CABLE SUB-ASSEMBLY

-

-

Procedure		Part Name Code
8	STEERING WHEEL ASSEMBLY	45100		-	-
9	HORN BUTTON ASSEMBLY	45130		-	-
10	NO. 3 STEERING WHEEL COVER LOWER	45187	-	-	-
11	NO. 2 STEERING WHEEL COVER LOWER	45186	-	-	-
12	CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL	-	-	-	-
13	UPDATE ECU SECURITY KEY	-	-	-
14	INSPECT SRS WARNING LIGHT	-	-	-
15	INSPECT HORN BUTTON ASSEMBLY	45130	-	-
16	CHECK STEERING WHEEL CENTER POINT	-	-	-
17	INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL	-	-	-

Tightening torque for "Major areas involving basic Toyota Prius vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

-

-

PROCEDURE

1. INSPECT SPIRAL CABLE SUB-ASSEMBLY

Click here

2. INSTALL STEERING SENSOR

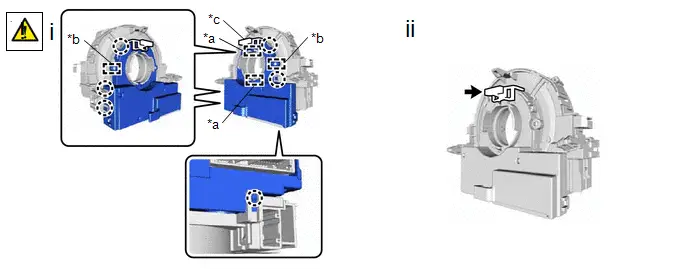

*a	Guide	*b	Pin
*c	Lock Pin	-	-

(1) Align the 2 pins and 2 guides, and engage the 6 claws to install the steering sensor to the spiral cable sub-assembly.

(2) Remove the lock pin from the steering sensor.

3. INSTALL SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

Click here

4. INSTALL UPPER STEERING COLUMN COVER

Click here

5. INSTALL LOWER STEERING COLUMN COVER

Click here

6. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD

7. ADJUST SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

Click here

8. INSTALL STEERING WHEEL ASSEMBLY

Click here

9. INSTALL HORN BUTTON ASSEMBLY

Click here

10. INSTALL NO. 3 STEERING WHEEL COVER LOWER

Click here

11. INSTALL NO. 2 STEERING WHEEL COVER LOWER

Click here

12. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

for M20A-FXS: Click here

for 2ZR-FXE: Click here

13. UPDATE ECU SECURITY KEY

Click here

HINT:

When the steering sensor is replaced with a new one, ECU security key is necessary.

14. INSPECT SRS WARNING LIGHT

Click here

15. INSPECT HORN BUTTON ASSEMBLY

Click here

16. CHECK STEERING WHEEL CENTER POINT

Click here

17. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system are used.

Click here
