Toyota Prius: Rear Seat Inner Belt Assembly (for Rh Side)

• Removal
• Inspection
• Installation

Removal

REMOVAL

CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.

CAUTION / NOTICE / HINT

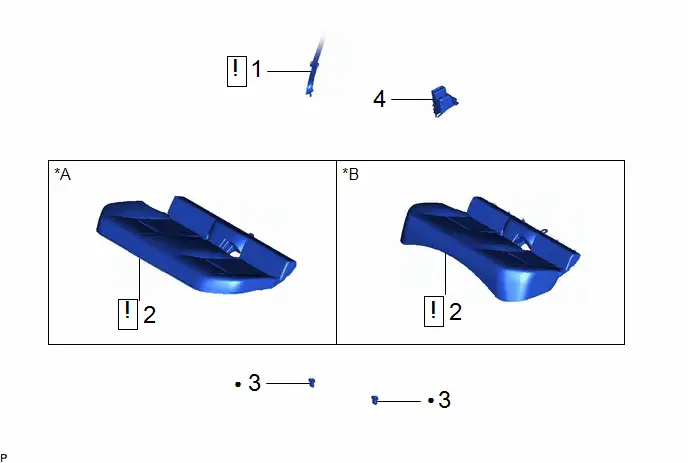

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	REAR CENTER SEAT OUTER BELT ASSEMBLY	73350C		-	-
2	REAR SEAT CUSHION ASSEMBLY	-		-	-
3	REAR SEAT CUSHION LOCK HOOK	72693	-	-	-
4	REAR SEAT INNER BELT ASSEMBLY RH	73380X	-	-	-

*A	for HEV Model	*B	for PHEV Model
●	Non-reusable part	-	-

PROCEDURE

1. DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY

Click here

2. REMOVE REAR SEAT CUSHION ASSEMBLY

Click here

3. REMOVE REAR SEAT CUSHION LOCK HOOK

Click here

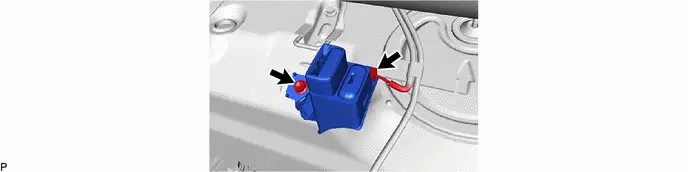

4. REMOVE REAR SEAT INNER BELT ASSEMBLY RH

Inspection

INSPECTION

PROCEDURE

1. INSPECT REAR SEAT INNER BELT ASSEMBLY RH

(a) Measure the resistance according to the value(s) in the table below. Standard Resistance: Click Location & Routing(R54) Click Connector(R54) Tester Connection Condition Specified Condition Result If the result is not as specified, replace the rear seat inner belt assembly RH. R54-5(RBR ) - R54-4(RBR-) Rear seat belt RH unfastened Below 1 Ω Ω R54-5(RBR ) - R54-4(RBR-) Rear seat belt RH fastened 10 kΩ or higher kΩ

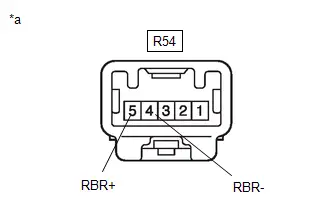

*a Component without harness connected (Rear Seat inner Belt Assembly RH)

Installation

INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.

CAUTION / NOTICE / HINT

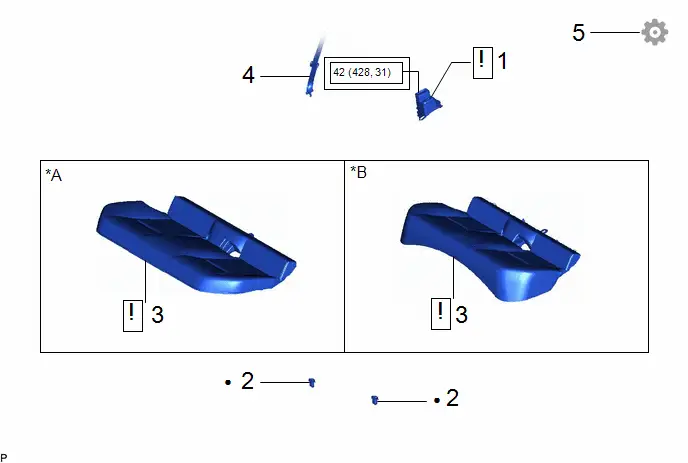

Procedure		Part Name Code
1	REAR SEAT INNER BELT ASSEMBLY RH	73380X		-	-
2	REAR SEAT CUSHION LOCK HOOK	72693	-	-	-
3	REAR SEAT CUSHION ASSEMBLY	-		-	-
4	REAR CENTER SEAT OUTER BELT ASSEMBLY	73350C	-	-	-
5	INSPECT SEAT BELT WARNING SYSTEM	-	-	-

*A	for HEV Model	*B	for PHEV Model
	Tightening torque for "Major areas involving basic Toyota Prius vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)	●	Non-reusable part

PROCEDURE

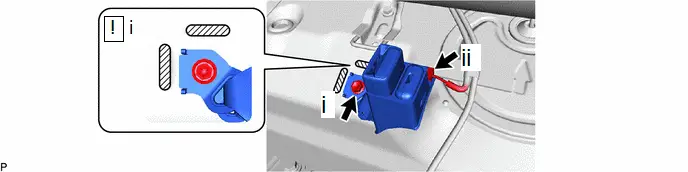

1. INSTALL REAR SEAT INNER BELT ASSEMBLY RH

Protruding Part

-

-

(1) Install the rear seat inner with center belt assembly LH with the bolt.

Torque:

42 N·m {428 kgf·cm, 31 ft·lbf}

NOTICE:

Do not allow the anchor part of the rear seat inner with center belt assembly LH to overlap the protruding parts of the Toyota Prius vehicle body.

(2) Connect the connector.

2. INSTALL REAR SEAT CUSHION LOCK HOOK

3. INSTALL REAR SEAT CUSHION ASSEMBLY

Click here

4. INSTALL REAR CENTER SEAT OUTER BELT ASSEMBLY

5. INSPECT SEAT BELT WARNING SYSTEM

(a) w/ Occupant Classification System:

Click here

(b) w/o Occupant Classification System:

Click here
