Toyota Prius: Rear Center Seat Outer Belt Assembly
Removal
REMOVAL
CAUTION / NOTICE / HINT
CAUTION:
Wear protective gloves. Sharp areas on the parts may injure your hands.
CAUTION / NOTICE / HINT

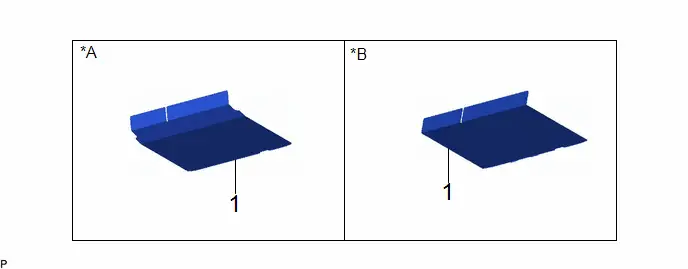

COMPONENTS (REMOVAL)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | DECK BOARD ASSEMBLY | 58410B | - | - | - |
| *A | for Type A | *B | for Type B |

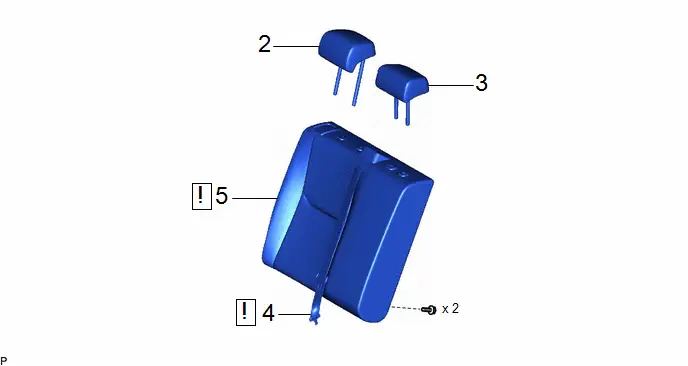

| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 2 | REAR SEAT HEADREST ASSEMBLY | 71940A | - | - | - |
| 3 | REAR SEAT CENTER HEADREST ASSEMBLY | 71960B | - | - | - |
| 4 | REAR CENTER SEAT OUTER BELT ASSEMBLY | 73350C |
| - | - |
| 5 | REAR SEATBACK ASSEMBLY RH | - |
| - | - |

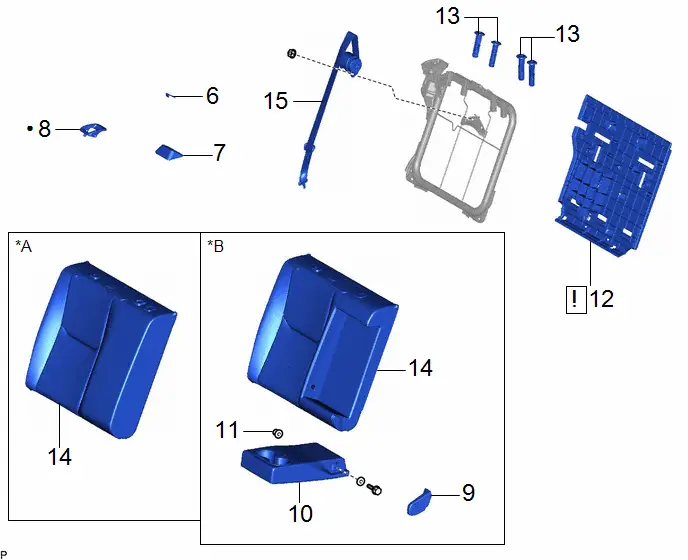

| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 6 | SEAT BELT ANCHOR COVER CAP | 73178A | - | - | - |
| 7 | REAR SEAT SHOULDER BELT COVER | 73373 | - | - | - |
| 8 | REAR SEATBACK UPPER LOCK BEZEL | 72667 | - | - | - |
| 9 | CENTER ARMREST HINGE COVER | 72868B | - | - | - |
| 10 | REAR SEAT CENTER ARMREST ASSEMBLY | 72830 | - | - | - |
| 11 | REAR SEAT ARMREST HINGE SHIM | 72839 | - | - | - |
| 12 | REAR SEATBACK BOARD SUB-ASSEMBLY RH | 71701C |
| - | - |
| 13 | REAR SEAT HEADREST SUPPORT | 71931A | - | - | - |
| 14 | SEPARATE TYPE REAR SEATBACK COVER WITH PAD | - | - | - | - |
| 15 | REAR CENTER SEAT OUTER BELT ASSEMBLY | 73350C | - | - | - |
| *A | w/o Armrest | *B | w/ Armrest |
| ● | Non-reusable part | - | - |
PROCEDURE
1. REMOVE DECK BOARD ASSEMBLY
Click here
2. REMOVE REAR SEAT HEADREST ASSEMBLY
Click here
3. REMOVE REAR SEAT CENTER HEADREST ASSEMBLY
Click here
4. DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY
| Click here
|
5. REMOVE REAR SEATBACK ASSEMBLY RH
| Click here
|
6. REMOVE SEAT BELT ANCHOR COVER CAP
Click here
7. REMOVE REAR SEAT SHOULDER BELT COVER
Click here
8. REMOVE REAR SEATBACK UPPER LOCK BEZEL
Click here
9. REMOVE CENTER ARMREST HINGE COVER (w/ Armrest)
Click here
10. REMOVE REAR SEAT CENTER ARMREST ASSEMBLY (w/ Armrest)
Click here
11. REMOVE REAR SEAT ARMREST HINGE SHIM (w/ Armrest)
Click here
12. REMOVE REAR SEATBACK BOARD SUB-ASSEMBLY RH
| Click here
|
13. REMOVE REAR SEAT HEADREST SUPPORT
Click here
14. REMOVE SEPARATE TYPE REAR SEATBACK COVER WITH PAD
Click here

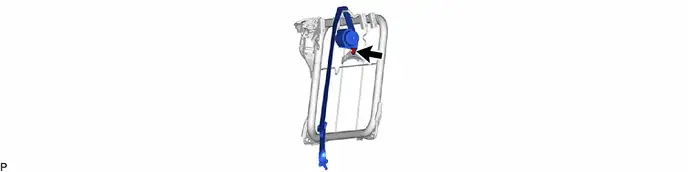

15. REMOVE REAR CENTER SEAT OUTER BELT ASSEMBLY
Inspection
INSPECTION
PROCEDURE
1. INSPECT REAR CENTER SEAT OUTER BELT ASSEMBLY

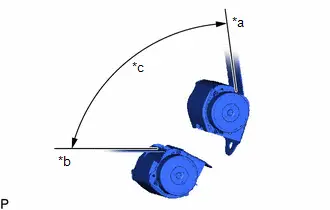

| (a) Before installing the rear center seat outer belt assembly, check the ELR function. NOTICE: Do not disassemble the retractor. (1) When the inclination of the retractor is 15° or less, check that the belt can be pulled from the retractor. When the inclination of the retractor is over 45°, check that the belt locks. If the result is not as specified, replace the rear center seat outer belt assembly. |
|
Installation
INSTALLATION
CAUTION / NOTICE / HINT
CAUTION:
Wear protective gloves. Sharp areas on the parts may injure your hands.
CAUTION / NOTICE / HINT

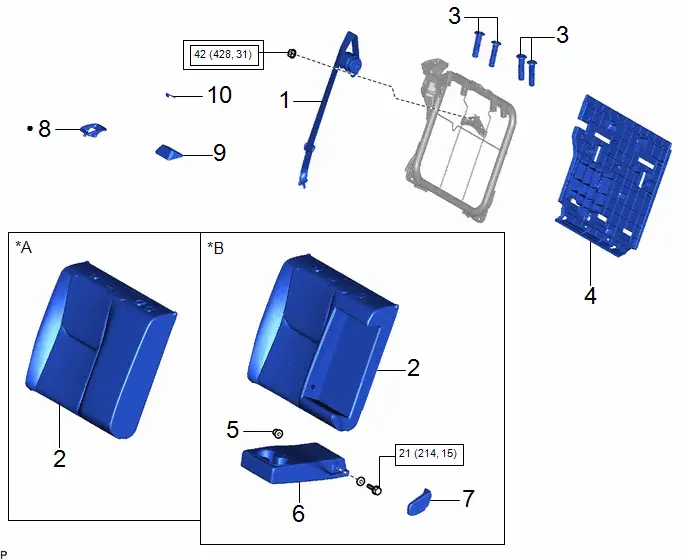

COMPONENTS (INSTALLATION)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | REAR CENTER OUTER SEAT BELT ASSEMBLY | 73350C | - | - | - |
| 2 | SEPARATE TYPE REAR SEATBACK COVER WITH PAD | - | - | - | - |
| 3 | REAR SEAT HEADREST SUPPORT | 71931A | - | - | - |
| 4 | REAR SEATBACK BOARD SUB-ASSEMBLY RH | 71701C | - | - | - |
| 5 | REAR SEAT ARMREST HINGE SHIM | 72839 | - | - | - |
| 6 | REAR SEAT CENTER ARMREST ASSEMBLY | 72830 | - | - | - |
| 7 | CENTER ARMREST HINGE COVER | 72868B | - | - | - |
| 8 | REAR SEATBACK UPPER LOCK BEZEL | 72667 | - | - | - |
| 9 | REAR SEAT SHOULDER BELT COVER | 73373 | - | - | - |
| 10 | SEAT BELT ANCHOR COVER CAP | 73178A | - | - | - |
| *A | w/o Armrest | *B | w/ Armrest |
| Tightening torque for "Major areas involving basic Toyota Prius vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
| N*m (kgf*cm, ft.*lbf): Specified torque |
| ● | Non-reusable part | - | - |

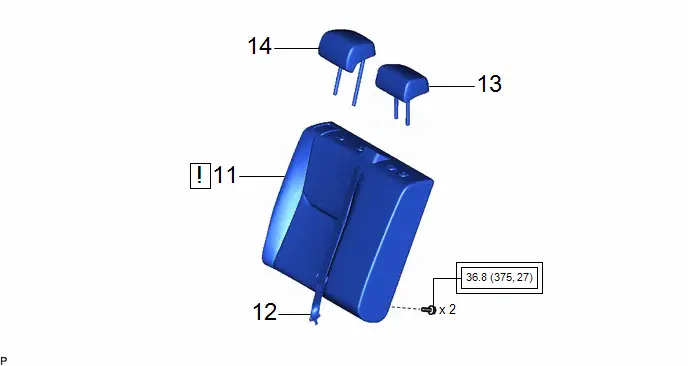

| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 11 | REAR SEATBACK ASSEMBLY RH | - |
| - | - |
| 12 | REAR CENTER SEAT OUTER BELT ASSEMBLY | 73350C | - | - | - |
| 13 | REAR SEAT CENTER HEADREST ASSEMBLY | 71960B | - | - | - |
| 14 | REAR SEAT HEADREST ASSEMBLY | 71940A | - | - | - |
| Tightening torque for "Major areas involving basic Toyota Prius vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 15 | DECK BOARD ASSEMBLY | 58410B | - | - | - |
| *A | for Type A | *B | for Type B |
PROCEDURE
1. INSTALL REAR CENTER SEAT OUTER BELT ASSEMBLY
Torque:
42 N·m {428 kgf·cm, 31 ft·lbf}
2. INSTALL SEPARATE TYPE REAR SEATBACK COVER WITH PAD
3. INSTALL REAR SEAT HEADREST SUPPORT
4. INSTALL REAR SEATBACK BOARD SUB-ASSEMBLY RH
5. INSTALL REAR SEAT ARMREST HINGE SHIM (w/ Armrest)
6. INSTALL REAR SEAT CENTER ARMREST ASSEMBLY (w/ Armrest)
Click here
7. INSTALL CENTER ARMREST HINGE COVER (w/ Armrest)
8. INSTALL REAR SEATBACK UPPER LOCK BEZEL
9. INSTALL REAR SEAT SHOULDER BELT COVER
10. INSTALL SEAT BELT ANCHOR COVER CAP
11. INSTALL REAR SEATBACK ASSEMBLY RH
| Click here
|
12. CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY
13. INSTALL REAR SEAT CENTER HEADREST ASSEMBLY
14. INSTALL REAR SEAT HEADREST ASSEMBLY
15. INSTALL DECK BOARD ASSEMBLY
Toyota Prius (XW60) 2023-2025 Service Manual
Rear Center Seat Outer Belt Assembly
