Toyota Prius: Rear Door Opening Trim Weatherstrip
Removal
REMOVAL
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
CAUTION / NOTICE / HINT

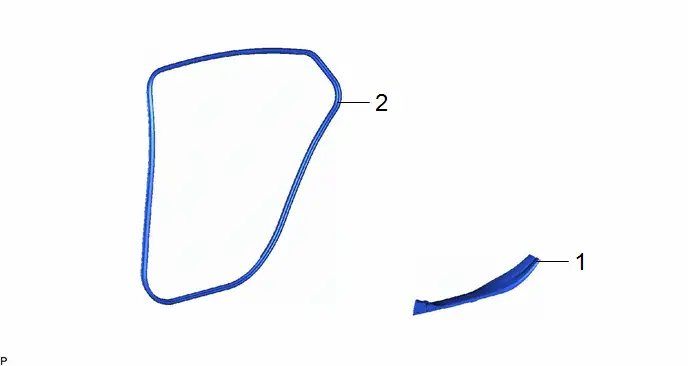

COMPONENTS (REMOVAL)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | REAR DOOR SCUFF PLATE INSIDE | 67918F | - | - | - |
| 2 | REAR DOOR OPENING TRIM WEATHERSTRIP | 62332A | - | - | - |
PROCEDURE
1. REMOVE REAR DOOR SCUFF PLATE INSIDE
Click here

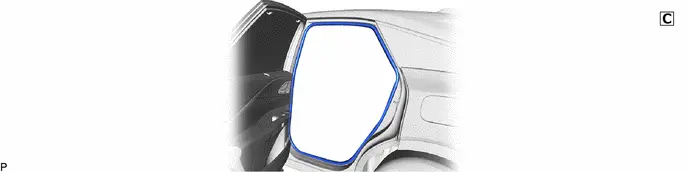

2. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP
Installation
INSTALLATION
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
CAUTION / NOTICE / HINT

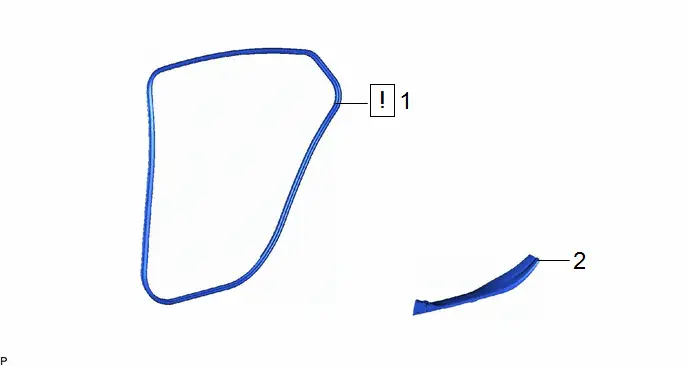

COMPONENTS (INSTALLATION)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | REAR DOOR OPENING TRIM WEATHERSTRIP | 62332A |
| - | - |
| 2 | REAR DOOR SCUFF PLATE INSIDE | 67918F | - | - | - |
PROCEDURE
1. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP
| *a | Paint Mark | - | - |
| Spot Weld | - | - |

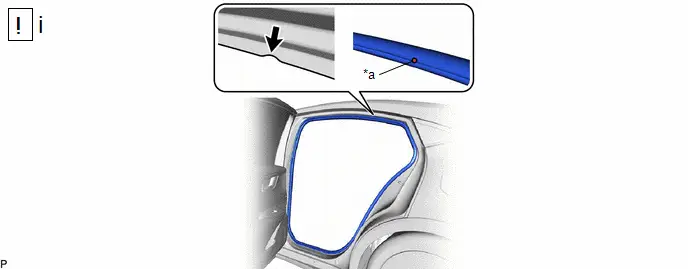

(1) Align the paint mark on the rear door opening trim weatherstrip with the spot weld on the Toyota Prius vehicle body indicated by the arrow in the illustration, and install the rear door opening trim weatherstrip.
NOTICE:
- Make sure that the paint mark is aligned with the spot weld when installing the rear door opening trim weatherstrip, otherwise water ingress may occur.
- After installation, check that the corners fit correctly.
HINT:
- Make sure to install the part of the rear door opening trim weatherstrip near the paint mark first.
-
The color of the paint marks on the rear door opening trim weatherstrip LH and rear door opening trim weatherstrip RH are different.
Paint Mark:
Location
Color
for LH Side
Pink
for RH Side
Blue
2. INSTALL REAR DOOR SCUFF PLATE INSIDE
