Toyota Prius: Radio Antenna Cord (for Instrument Panel)

• Removal
• Removal
• Installation

Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during antenna cord sub-assembly removal/installation are shown below.

CAUTION:

Be sure to read Precaution thoroughly before servicing.

Click here

NOTICE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click here

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when Toyota Prius vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Front Camera System	Drive the Toyota Prius vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
*1: w/o Power Back Door System *2: w/ Power Back Door System
Power Door Lock Control System*1 Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.
Power Back Door System*2	Reset back door close position
Air Conditioning System	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

CAUTION / NOTICE / HINT

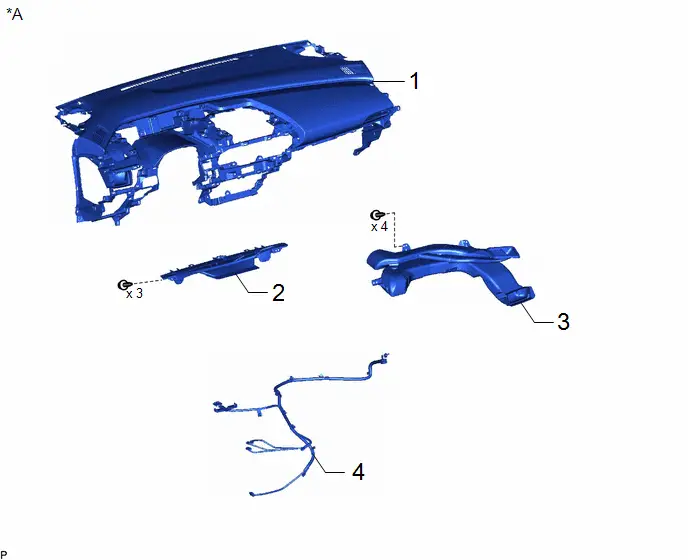

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY	-	-	-	-
2	DEFROSTER NOZZLE ASSEMBLY	55950G	-	-	-
3	NO. 2 HEATER TO REGISTER DUCT SUB-ASSEMBLY	55085	-	-	-
4	ANTENNA CORD SUB-ASSEMBLY	86101T	-	-	-

PROCEDURE

1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

Click here

2. REMOVE DEFROSTER NOZZLE ASSEMBLY

Click here

3. REMOVE NO. 2 HEATER TO REGISTER DUCT SUB-ASSEMBLY

Click here

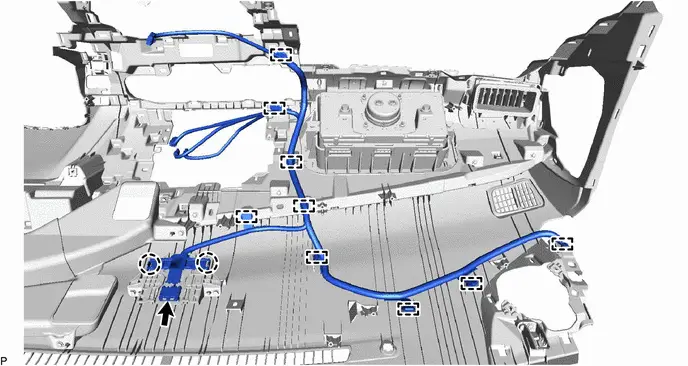

4. REMOVE ANTENNA CORD SUB-ASSEMBLY

Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during antenna cord sub-assembly removal/installation are shown below.

CAUTION:

Be sure to read Precaution thoroughly before servicing.

Click here

NOTICE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click here

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when Toyota Prius vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Front Camera System	Drive the Toyota Prius vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.

Learning completes when vehicle is operated normally *1: w/o Power Back Door System

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
*1: w/o Power Back Door System *2: w/ Power Back Door System
Power Door Lock Control System*1 Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.
Power Back Door System*2	Reset back door close position
Air Conditioning System	for HEV Model: After the ignition switch is turned to ON, the servo motor standard position is recognized. for PHEV Model: After the ignition switch is turned to ON, the servo motor and expansion valve standard position is recognized.	-

CAUTION / NOTICE / HINT

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY	-	-	-	-
2	DEFROSTER NOZZLE ASSEMBLY	55950G	-	-	-
3	NO. 2 HEATER TO REGISTER DUCT SUB-ASSEMBLY	55085	-	-	-
4	ANTENNA CORD SUB-ASSEMBLY	86101T	-	-	-

PROCEDURE

1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

Click here

2. REMOVE DEFROSTER NOZZLE ASSEMBLY

Click here

3. REMOVE NO. 2 HEATER TO REGISTER DUCT SUB-ASSEMBLY

Click here

4. REMOVE ANTENNA CORD SUB-ASSEMBLY

Installation

INSTALLATION

CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	ANTENNA CORD SUB-ASSEMBLY	86101T	-	-	-
2	NO. 2 HEATER TO REGISTER DUCT SUB-ASSEMBLY	55085	-	-	-
3	DEFROSTER NOZZLE ASSEMBLY	55950G	-	-	-
4	INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY	-	-	-	-

PROCEDURE

1. INSTALL ANTENNA CORD SUB-ASSEMBLY

2. INSTALL NO. 2 HEATER TO REGISTER DUCT SUB-ASSEMBLY

3. INSTALL DEFROSTER NOZZLE ASSEMBLY

4. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

Click here
