Toyota Prius: Quarter Garnish
Removal
REMOVAL
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
CAUTION / NOTICE / HINT

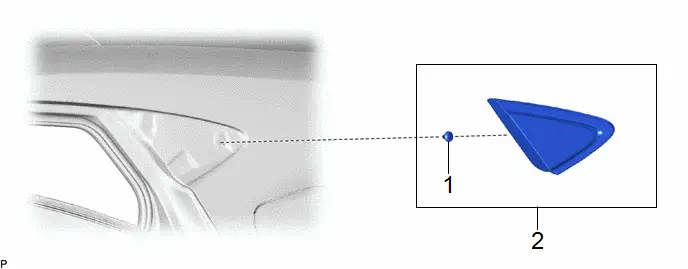

COMPONENTS (REMOVAL)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | QUARTER PILLAR COVER SUB-ASSEMBLY | 62506C |
| - | - |
| 2 | DOOR TRIM RETAINER CAP | - | - | - | - |
PROCEDURE
1. REMOVE QUARTER PILLAR COVER SUB-ASSEMBLY
| Remove in this Direction | - | - |

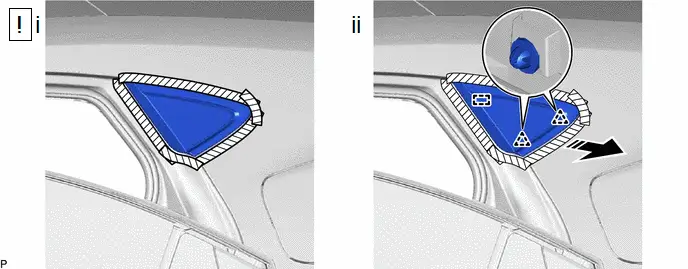

(1) Apply protective tape around the quarter pillar cover sub-assembly as shown in the illustration.
(2) Disengage the 2 clips and pin to remove the quarter pillar cover sub-assembly as shown in the illustration.

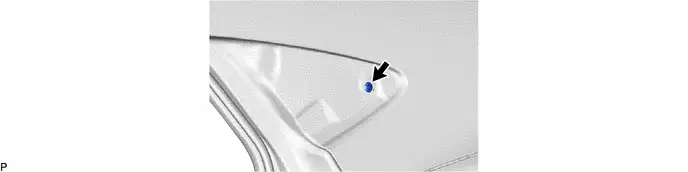

2. REMOVE DOOR TRIM RETAINER CAP
(a) When reusing the quarter pillar cover sub-assembly:
Installation
INSTALLATION
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
CAUTION / NOTICE / HINT
COMPONENTS (INSTALLATION)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | DOOR TRIM RETAINER CAP | - | - | - | - |
| 2 | QUARTER PILLAR COVER SUB-ASSEMBLY | 62506C | - | - | - |
PROCEDURE
1. INSTALL DOOR TRIM RETAINER CAP
(a) When reusing the quarter pillar cover sub-assembly:
2. INSTALL QUARTER PILLAR COVER SUB-ASSEMBLY
Removal
REMOVAL
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
CAUTION / NOTICE / HINT
COMPONENTS (REMOVAL)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | QUARTER PILLAR COVER SUB-ASSEMBLY | 62506C |
| - | - |
| 2 | DOOR TRIM RETAINER CAP | - | - | - | - |
PROCEDURE
1. REMOVE QUARTER PILLAR COVER SUB-ASSEMBLY
| Remove in this Direction | - | - |
(1) Apply protective tape around the quarter pillar cover sub-assembly as shown in the illustration.
(2) Disengage the 2 clips and pin to remove the quarter pillar cover sub-assembly as shown in the illustration.
2. REMOVE DOOR TRIM RETAINER CAP
(a) When reusing the quarter pillar cover sub-assembly:
Installation
INSTALLATION
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
CAUTION / NOTICE / HINT
COMPONENTS (INSTALLATION)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | DOOR TRIM RETAINER CAP | - | - | - | - |
| 2 | QUARTER PILLAR COVER SUB-ASSEMBLY | 62506C | - | - | - |
PROCEDURE
1. INSTALL DOOR TRIM RETAINER CAP
(a) When reusing the quarter pillar cover sub-assembly:
2. INSTALL QUARTER PILLAR COVER SUB-ASSEMBLY
