Toyota Prius: Power Window Master Switch

Removal

REMOVAL

CAUTION / NOTICE / HINT

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL	-		-	-
2	MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY	84040		-	-

*1

FRONT DOOR UPPER ARMREST BASE PANEL

-

-

PROCEDURE

1. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL

Click here

2. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY

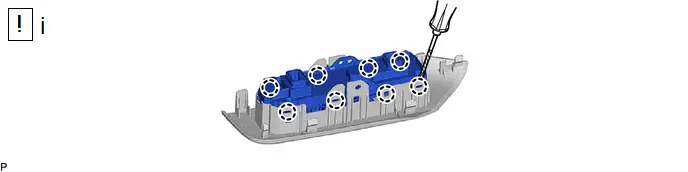

(1) Using a screwdriver with its tip wrapped with protective tape, disengage the 8 claws to remove the multiplex network master switch assembly.

Inspection

INSPECTION

PROCEDURE

1. INSPECT MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY

(a) Check that the LEDs illuminate.

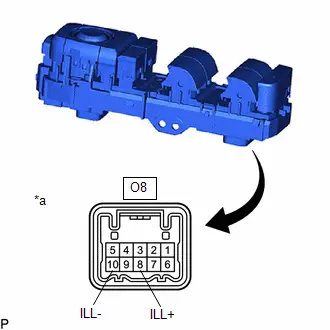

(1) Apply Auxiliary battery voltage to the multiplex network master switch assembly and check that the LED illuminates. OK: Click Location & Routing(O8) Click Connector(O8) Tester Connection Specified Condition Auxiliary battery positive ( ) → O8-8 (ILL ) Auxiliary battery negative (-) → O8-10 (ILL-) LEDs illuminate If the result is not as specified, replace the multiplex network master switch assembly.

*a Component without harness connected (Multiplex Network Master Switch Assembly)

Installation

INSTALLATION

CAUTION / NOTICE / HINT

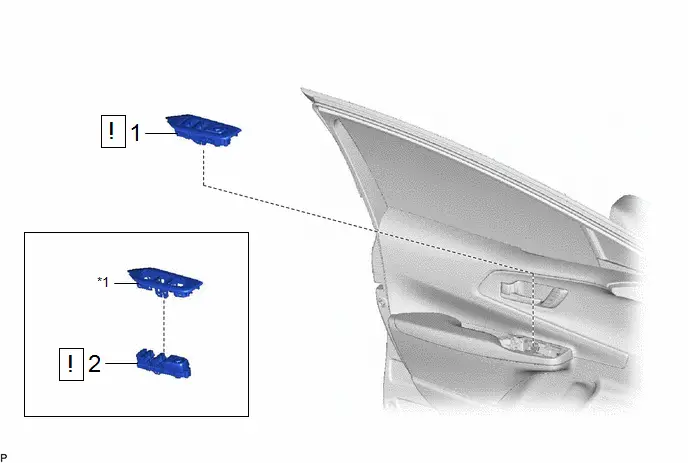

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY	84040	-	-	-
2	MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL	-	-	-	-

*1

FRONT DOOR UPPER ARMREST BASE PANEL

-

-

PROCEDURE

1. INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY

2. INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL
