Toyota Prius: Power Outlet Socket (for Console Box Rear Side)

Removal

REMOVAL

CAUTION / NOTICE / HINT

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	CONSOLE REAR END PANEL SUB-ASSEMBLY	58903A	-	-	-
2	NO. 3 USB CHARGER SOCKET	85532D	-	-	-
3	CENTER POWER OUTLET SOCKET ASSEMBLY	85530C	-	-	-

*A

w/ Power Outlet Socket

-

-

PROCEDURE

1. REMOVE CONSOLE REAR END PANEL SUB-ASSEMBLY

Click here

2. REMOVE NO. 3 USB CHARGER SOCKET

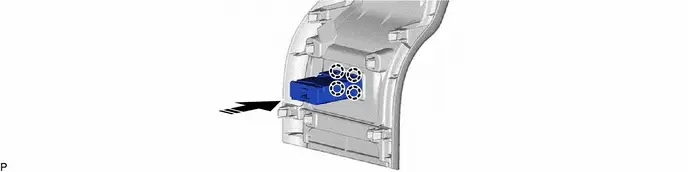

Remove in this Direction

-

-

3. REMOVE CENTER POWER OUTLET SOCKET ASSEMBLY (w/ Power Outlet Socket)

Remove in this Direction

-

-

Inspection

INSPECTION

PROCEDURE

1. INSPECT CENTER POWER OUTLET SOCKET ASSEMBLY

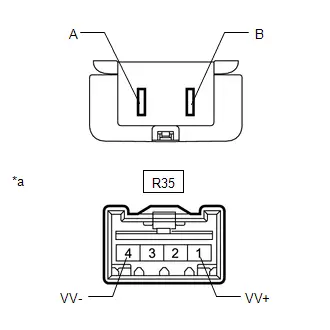

(a) Measure the resistance according to the value(s) in the table below. Standard Resistance: Click Location & Routing(R35) Click Connector(R35) Tester Connection Condition Specified Condition A - R35-1 (VV ) Always Below 1 Ω B - R35-4 (VV-) Always Below 1 Ω R35-1 (VV ) - R35-4 (VV-) Always 10 kΩ or higher If the result is not as specified, replace the center power outlet socket assembly.

*a Component without harness connected (Center Power Outlet Socket Assembly)

Installation

INSTALLATION

CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	CENTER POWER OUTLET SOCKET ASSEMBLY	85530C	-	-	-
2	NO. 3 USB CHARGER SOCKET	85532D	-	-	-
3	CONSOLE REAR END PANEL SUB-ASSEMBLY	58903A	-	-	-

*A

w/ Power Outlet Socket

-

-

PROCEDURE

1. INSTALL CENTER POWER OUTLET SOCKET ASSEMBLY (w/ Power Outlet Socket)

2. INSTALL NO. 3 USB CHARGER SOCKET

3. INSTALL CONSOLE REAR END PANEL SUB-ASSEMBLY
