Toyota Prius: Power Back Door Warning Buzzer

Removal

REMOVAL

CAUTION / NOTICE / HINT

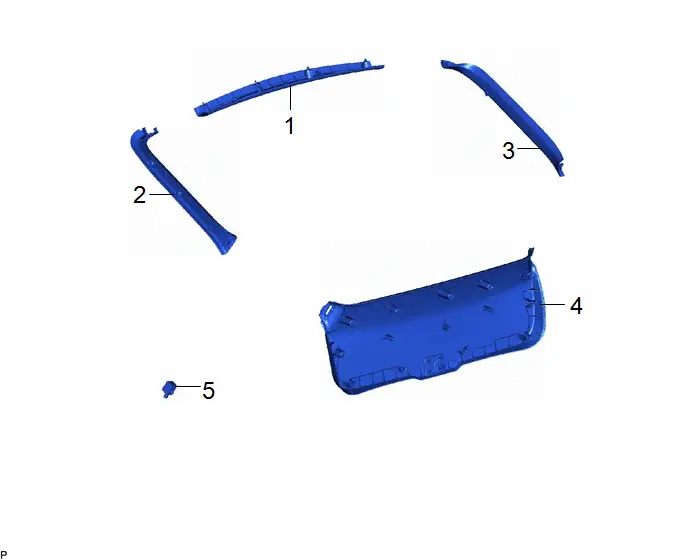

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	BACK DOOR UPPER TRIM PANEL ASSEMBLY	64790B	-	-	-
2	BACK DOOR SIDE GARNISH LH	67938A	-	-	-
3	BACK DOOR SIDE GARNISH RH	67937B	-	-	-
4	BACK DOOR TRIM BOARD ASSEMBLY	67750	-	-	-
5	POWER BACK DOOR WARNING BUZZER	89747E	-	-	-

PROCEDURE

1. REMOVE BACK DOOR UPPER TRIM PANEL ASSEMBLY

Click here

2. REMOVE BACK DOOR SIDE GARNISH LH

Click here

3. REMOVE BACK DOOR SIDE GARNISH RH

(a) Use the same procedure for the LH side.

4. REMOVE BACK DOOR TRIM BOARD ASSEMBLY

Click here

5. REMOVE POWER BACK DOOR WARNING BUZZER

Installation

INSTALLATION

CAUTION / NOTICE / HINT

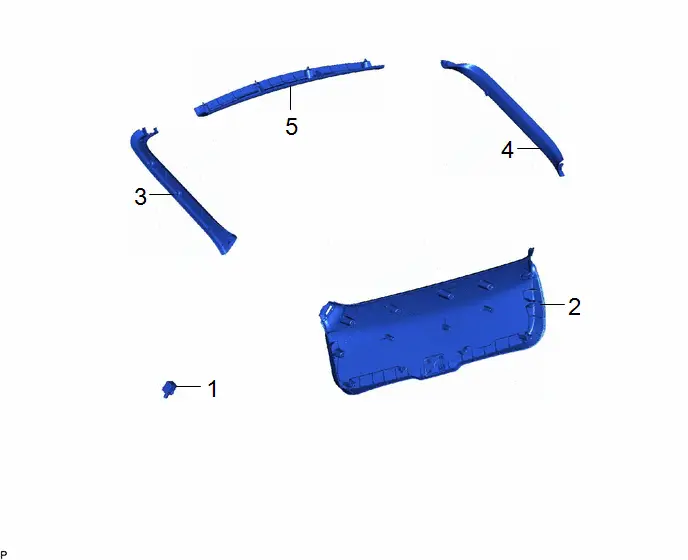

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	POWER BACK DOOR WARNING BUZZER	89747E	-	-	-
2	BACK DOOR TRIM BOARD ASSEMBLY	67750	-	-	-
3	BACK DOOR SIDE GARNISH LH	67938A	-	-	-
4	BACK DOOR SIDE GARNISH RH	67937B	-	-	-
5	BACK DOOR UPPER TRIM PANEL ASSEMBLY	64790B	-	-	-

PROCEDURE

1. INSTALL POWER BACK DOOR WARNING BUZZER

2. INSTALL BACK DOOR TRIM BOARD ASSEMBLY

3. INSTALL BACK DOOR SIDE GARNISH LH

4. INSTALL BACK DOOR SIDE GARNISH RH

5. INSTALL BACK DOOR UPPER TRIM PANEL ASSEMBLY

Installation

INSTALLATION

CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	POWER BACK DOOR WARNING BUZZER	89747E	-	-	-
2	BACK DOOR TRIM BOARD ASSEMBLY	67750	-	-	-
3	BACK DOOR SIDE GARNISH LH	67938A	-	-	-
4	BACK DOOR SIDE GARNISH RH	67937B	-	-	-
5	BACK DOOR UPPER TRIM PANEL ASSEMBLY	64790B	-	-	-

PROCEDURE

1. INSTALL POWER BACK DOOR WARNING BUZZER

2. INSTALL BACK DOOR TRIM BOARD ASSEMBLY

3. INSTALL BACK DOOR SIDE GARNISH LH

4. INSTALL BACK DOOR SIDE GARNISH RH

5. INSTALL BACK DOOR UPPER TRIM PANEL ASSEMBLY
