Toyota Prius: Power Back Door Touch Sensor

• Removal
• Inspection
• Installation

Removal

REMOVAL

CAUTION / NOTICE / HINT

CAUTION / NOTICE / HINT

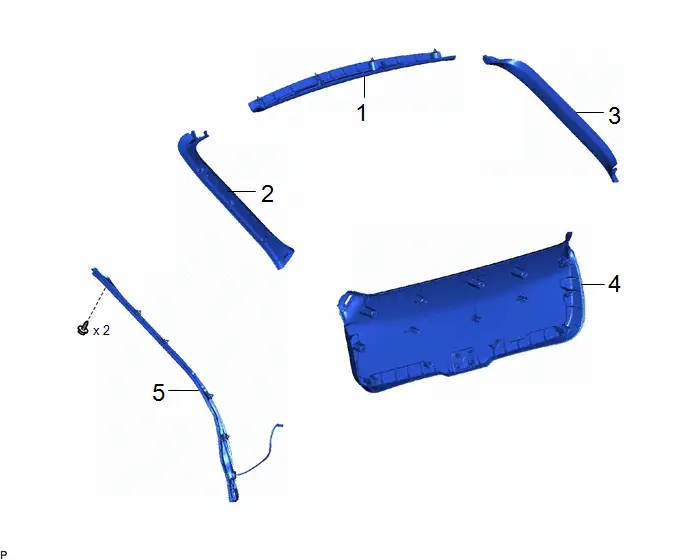

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	BACK DOOR UPPER TRIM PANEL ASSEMBLY	64790B	-	-	-
2	BACK DOOR SIDE GARNISH LH	67938A	-	-	-
3	BACK DOOR SIDE GARNISH RH	67937B	-	-	-
4	BACK DOOR TRIM BOARD ASSEMBLY	67750	-	-	-
5	POWER BACK DOOR SENSOR ASSEMBLY	84280D	-	-	-

PROCEDURE

1. REMOVE BACK DOOR UPPER TRIM PANEL ASSEMBLY

Click here

2. REMOVE BACK DOOR SIDE GARNISH LH

Click here

3. REMOVE BACK DOOR SIDE GARNISH RH

(a) Use the same procedure for the LH side.

4. REMOVE BACK DOOR TRIM BOARD ASSEMBLY

Click here

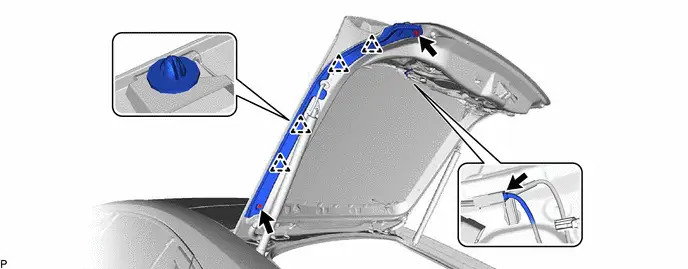

5. REMOVE POWER BACK DOOR SENSOR ASSEMBLY

Inspection

INSPECTION

PROCEDURE

1. INSPECT POWER BACK DOOR SENSOR ASSEMBLY LH

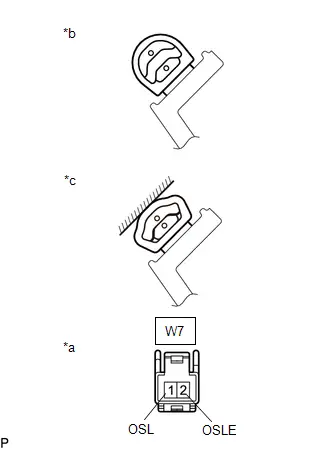

(a) Measure the resistance according to the value(s) in the table below. Standard Resistance: Click Location & Routing(W7) Click Connector(W7) Tester Connection Condition Specified Condition Result W7-1 (OSL) - W7-2 (OSLE) Not pressed 4465 to 4935 Ω Ω W7-1 (OSL) - W7-2 (OSLE) Pressed Below 500 Ω Ω If the result is not as specified, replace the power back door sensor assembly LH.

*a Component without harness connected (Power Back Door Sensor Assembly LH) *b Not Pressed *c Pressed

2. INSPECT POWER BACK DOOR SENSOR ASSEMBLY RH

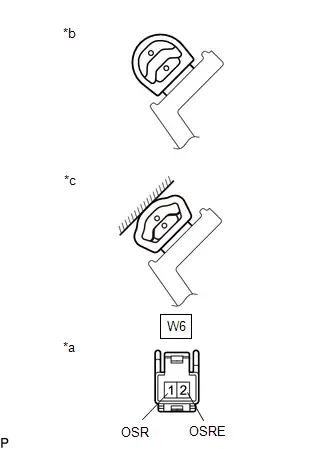

(a) Measure the resistance according to the value(s) in the table below. Standard Resistance: Click Location & Routing(W6) Click Connector(W6) Tester Connection Condition Specified Condition Result W6-1 (OSR) - W6-2 (OSRE) Not pressed 4465 to 4935 Ω Ω W6-1 (OSR) - W6-2 (OSRE) Pressed Below 500 Ω Ω If the result is not as specified, replace the power back door sensor RH.

*a Component without harness connected (Power Back Door Sensor Assembly RH) *b Not Pressed *c Pressed

Installation

INSTALLATION

CAUTION / NOTICE / HINT

CAUTION / NOTICE / HINT

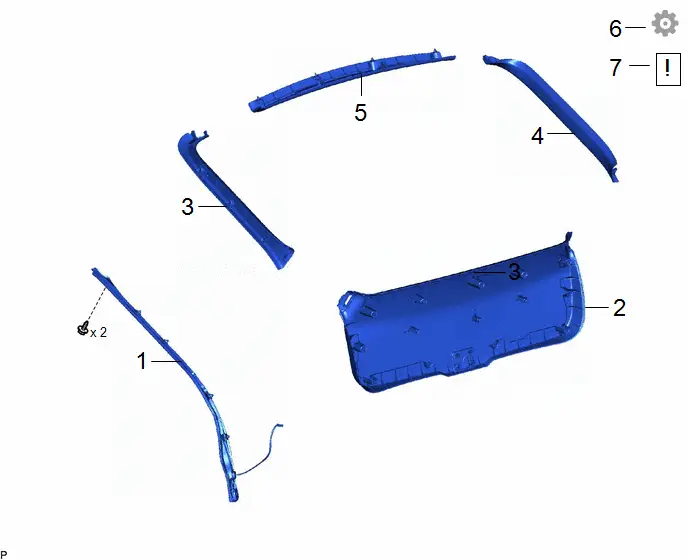

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	POWER BACK DOOR SENSOR ASSEMBLY	84280D	-	-	-
2	BACK DOOR TRIM BOARD ASSEMBLY	67750	-	-	-
3	BACK DOOR SIDE GARNISH LH	67938A	-	-	-
4	BACK DOOR SIDE GARNISH RH	67937B	-	-	-
5	BACK DOOR UPPER TRIM PANEL ASSEMBLY	64790B	-	-	-
6	INITIALIZE POWER BACK DOOR SYSTEM	-	-	-
7	INSPECT POWER BACK DOOR SYSTEM	-		-	-

PROCEDURE

1. INSTALL POWER BACK DOOR SENSOR ASSEMBLY

2. INSTALL BACK DOOR TRIM BOARD ASSEMBLY

3. INSTALL BACK DOOR SIDE GARNISH LH

4. INSTALL BACK DOOR SIDE GARNISH RH

5. INSTALL BACK DOOR UPPER TRIM PANEL ASSEMBLY

6. INITIALIZE POWER BACK DOOR SYSTEM

Click here

7. INSPECT POWER BACK DOOR SYSTEM

Click here
