REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during power back door drive unit removal/installation are shown below.
Necessary Procedures After Parts Removed/Installed/Replaced Replaced Part or Performed Procedure | Necessary Procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
---|---|---|---|
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation. | |||
| Reset back door close position | Power Back Door System |
|
CAUTION / NOTICE / HINT
HINT:
CAUTION / NOTICE / HINT

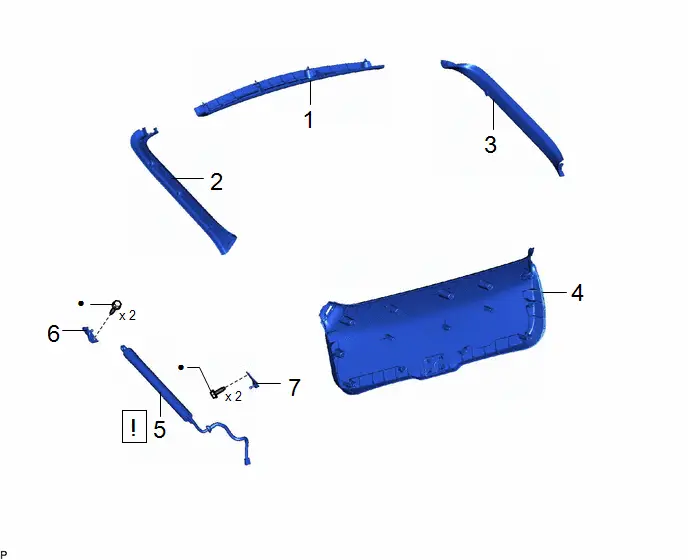

COMPONENTS (REMOVAL) Procedure | Part Name Code |
![]() |
![]() |
![]() | |
---|---|---|---|---|---|
1 | BACK DOOR UPPER TRIM PANEL ASSEMBLY | 64790B | - | - | - |
2 | BACK DOOR SIDE GARNISH LH | 67938A | - | - | - |
3 | BACK DOOR SIDE GARNISH RH | 67937B | - | - | - |
4 | BACK DOOR TRIM BOARD ASSEMBLY | 67750 | - | - | - |
5 | POWER BACK DOOR UNIT ASSEMBLY | 68920A |
| - | - |
6 | BACK DOOR DAMPER STAY UPPER BRACKET | 68946 | - | - | - |
7 | BACK DOOR DAMPER STAY LOWER BRACKET | 68948 | - | - | - |
● | Non-reusable part | - | - |
PROCEDURE
1. REMOVE BACK DOOR UPPER TRIM PANEL ASSEMBLY
Click here
2. REMOVE BACK DOOR SIDE GARNISH LH
Click here
3. REMOVE BACK DOOR SIDE GARNISH RH
(a) Use the same procedure for the LH side.
4. REMOVE BACK DOOR TRIM BOARD ASSEMBLY
Click here
5. REMOVE POWER BACK DOOR UNIT ASSEMBLY
*1 | Grommet | - | - |
![]() | Remove in this Direction | - | - |

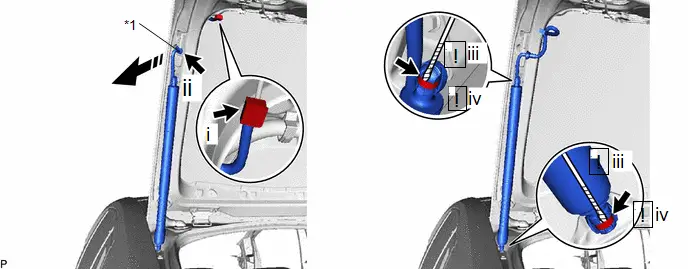

(1) Disconnect the connector.
(2) Disengage the grommet as shown in the illustration.
(3) Using a screwdriver with its tip wrapped with protective tape, slightly raise the 2 stop rings as shown in the illustration.
(4) Disengage the 2 ball joints to remove the power back door unit assembly.
NOTICE:

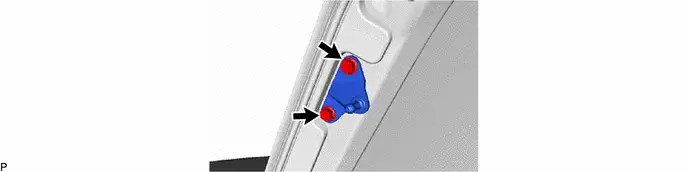

6. REMOVE BACK DOOR DAMPER STAY UPPER BRACKET

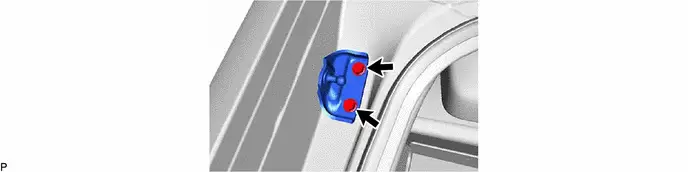

7. REMOVE BACK DOOR DAMPER STAY LOWER BRACKET
INSTALLATION
CAUTION / NOTICE / HINT
HINT:
CAUTION / NOTICE / HINT

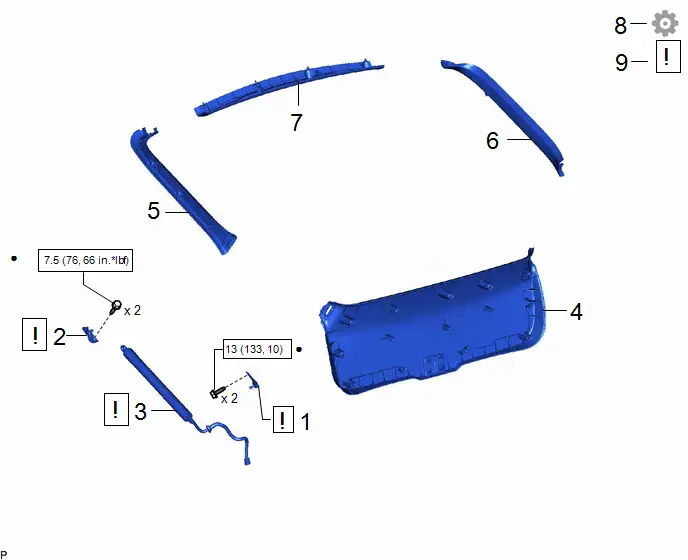

COMPONENTS (INSTALLATION) Procedure | Part Name Code |
![]() |
![]() |
![]() | |
---|---|---|---|---|---|
1 | BACK DOOR DAMPER STAY LOWER BRACKET | 68948 |
| - | - |
2 | BACK DOOR DAMPER STAY UPPER BRACKET | 68946 |
| - | - |
3 | POWER BACK DOOR UNIT ASSEMBLY | 68920A |
| - | - |
4 | BACK DOOR TRIM BOARD ASSEMBLY | 67750 | - | - | - |
5 | BACK DOOR SIDE GARNISH LH | 67938A | - | - | - |
6 | BACK DOOR SIDE GARNISH RH | 67937B | - | - | - |
7 | BACK DOOR UPPER TRIM PANEL ASSEMBLY | 64790B | - | - | - |
8 | INITIALIZE POWER BACK DOOR SYSTEM | - | - | - |
|
9 | INSPECT POWER BACK DOOR SYSTEM | - |
| - | - |
![]() | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
★ | Precoated part | - | - |
PROCEDURE
1. INSTALL BACK DOOR DAMPER STAY LOWER BRACKET
![]() | Cleaning Area | - | - |

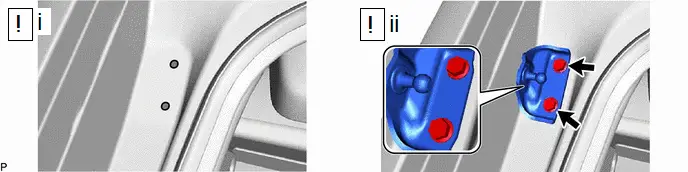

(1) Clean the bolt holes in the Toyota Prius vehicle body.
(2) Install the back door damper stay lower bracket with 2 new bolts.
Torque:
13 N·m {133 kgf·cm, 10 ft·lbf}
2. INSTALL BACK DOOR DAMPER STAY UPPER BRACKET
![]() | Cleaning Area | - | - |

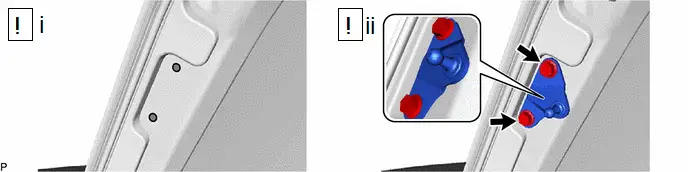

(1) Clean the bolt holes in the Toyota Prius vehicle body.
(2) Install the back door damper stay upper bracket with 2 new bolts.
Torque:
7.5 N·m {76 kgf·cm, 66 in·lbf}
3. INSTALL POWER BACK DOOR UNIT ASSEMBLY
![]() | NOTICE: Do not apply any horizontal load to the power back door unit assembly in order to prevent it from deforming. |
(1) Engage the 2 ball joints to install the power back door unit assembly.
NOTICE:
(2) Engage the grommet as shown in the illustration.
(3) Connect the connector.
4. INSTALL BACK DOOR TRIM BOARD ASSEMBLY
5. INSTALL BACK DOOR SIDE GARNISH LH
6. INSTALL BACK DOOR SIDE GARNISH RH
7. INSTALL BACK DOOR UPPER TRIM PANEL ASSEMBLY
8. INITIALIZE POWER BACK DOOR SYSTEM
Click here
9. INSPECT POWER BACK DOOR SYSTEM
![]() | Click here
|
