REMOVAL
CAUTION / NOTICE / HINT

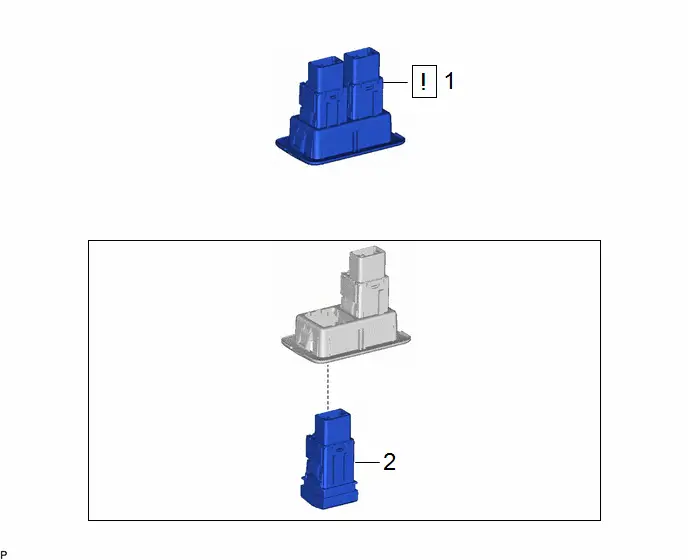

COMPONENTS (REMOVAL) Procedure | Part Name Code |
![]() |
![]() |
![]() | |
---|---|---|---|---|---|
1 | GLIDE DOOR INSIDE HANDLE BASE ASSEMBLY | 69290G |
| - | - |
2 | NO. 1 POWER BACK DOOR CONTROL SWITCH | 84966A | - | - | - |
PROCEDURE
1. REMOVE GLIDE DOOR INSIDE HANDLE BASE ASSEMBLY
![]() | Click here
|

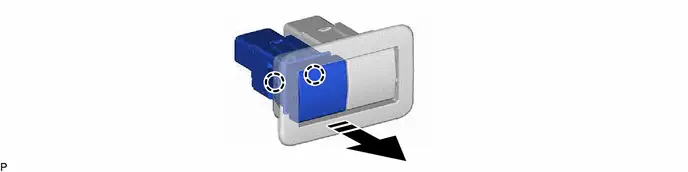

2. REMOVE NO. 1 POWER BACK DOOR CONTROL SWITCH
![]() | Remove in this Direction | - | - |
INSPECTION
PROCEDURE

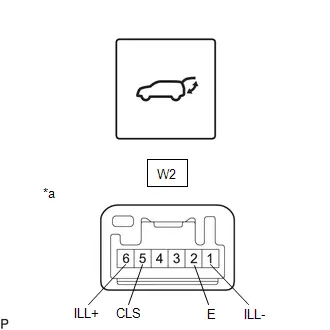

1. INSPECT NO. 1 POWER BACK DOOR CONTROL SWITCH
(a) Check the switch. (1) Measure the resistance according to the value(s) in the table below. Standard Resistance: ![]()
If the result is not as specified, replace the No. 1 power back door control switch. |
|
(b) Check the switch illumination.
(1) Apply auxiliary battery voltage to the switch connector and check that the No. 1 power back door control switch illuminates.
OK:
Tester Connection | Condition | Specified Condition |
---|---|---|
Auxiliary battery positive ( ) → Terminal W2-6 (ILL ) Auxiliary battery negative (-) → Terminal W2-1 (ILL-) | Always | Switch illumination illuminates |
If the result is not as specified, replace the No. 1 power back door control switch.
INSTALLATION
CAUTION / NOTICE / HINT
COMPONENTS (INSTALLATION) Procedure | Part Name Code |
![]() |
![]() |
![]() | |
---|---|---|---|---|---|
1 | NO. 1 POWER BACK DOOR CONTROL SWITCH | 84966A | - | - | - |
2 | GLIDE DOOR INSIDE HANDLE BASE ASSEMBLY | 69290G | - | - | - |
PROCEDURE
1. INSTALL NO. 1 POWER BACK DOOR CONTROL SWITCH
2. INSTALL GLIDE DOOR INSIDE HANDLE BASE ASSEMBLY
