Toyota Prius: Hood Lock Control Cable Assembly

• Removal
• Installation

Removal

REMOVAL

CAUTION / NOTICE / HINT

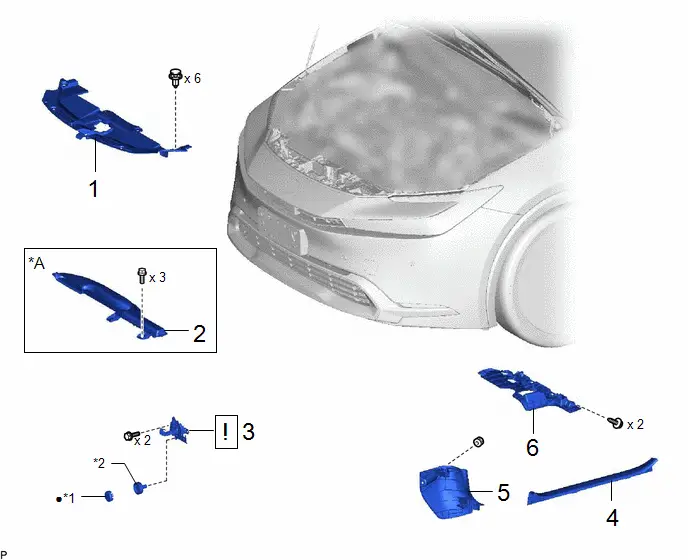

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	RADIATOR SUPPORT OPENING COVER	53289A	-	-	-
2	INLET NO. 1 AIR CLEANER	17751	-	-	-
3	HOOD LOCK ASSEMBLY	53510		-	-
4	FRONT DOOR SCUFF PLATE LH	67914	-	-	-
5	COWL SIDE TRIM BOARD LH	62112	-	-	-
6	NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	55606	-	-	-

*A	for M20A-FXS	-	-
*1	HOOD LOCK NUT CAP	*2	HOOD LOCK BOLT
●	Non-reusable part	-	-

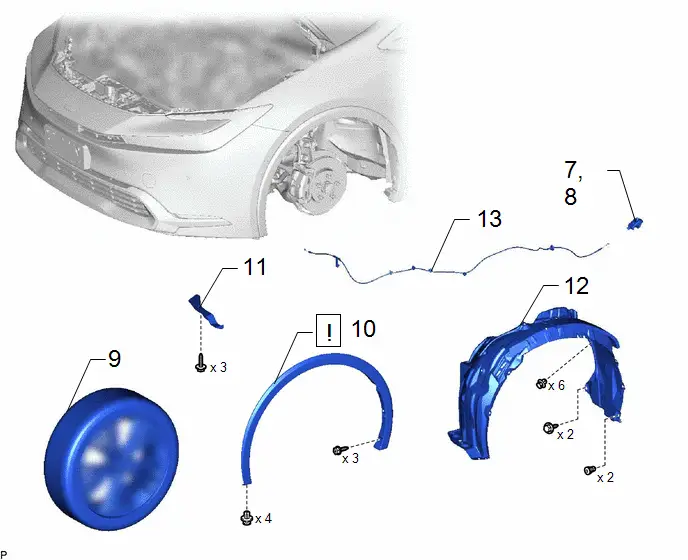

Procedure		Part Name Code
7	DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY	53601	-	-	-
8	HOOD LOCK CONTROL LEVER SUB-ASSEMBLY	53601	-	-	-
9	FRONT TIRE LH	-	-	-	-
10	FRONT FENDER MOULDING SUB-ASSEMBLY LH	75602A		-	-
11	FRONT WHEEL OPENING EXTENSION PAD LH	53852B	-	-	-
12	FRONT FENDER LINER LH	53876A	-	-	-
13	HOODLOCK CONTROL CABLE & LEVER SET	53630D	-	-	-

PROCEDURE

1. REMOVE RADIATOR SUPPORT OPENING COVER

Click here

2. REMOVE INLET NO. 1 AIR CLEANER (for M20A-FXS)

Click here

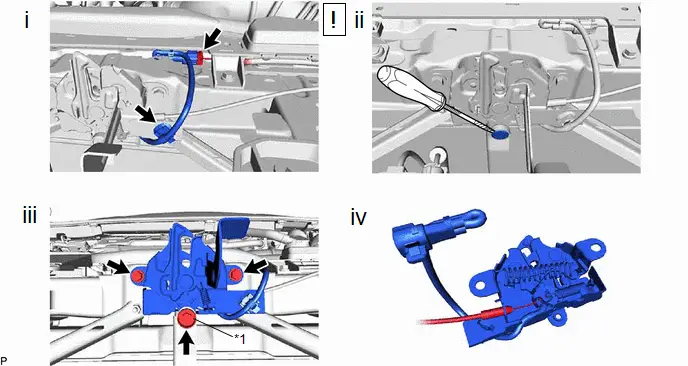

3. REMOVE HOOD LOCK ASSEMBLY

*1

Hood Lock Bolt

-

-

(1) Disengage the clamp and disconnect the connector.

(2) Using a screwdriver with its tip wrapped with protective tape, remove the hood lock nut cap.

(3) Remove the 2 bolts and hood lock bolt.

(4) Disconnect the hood lock control cable and lever set to remove the hood lock assembly.

4. REMOVE FRONT DOOR SCUFF PLATE LH

Click here

5. REMOVE COWL SIDE TRIM BOARD LH

Click here

6. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click here

7. DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

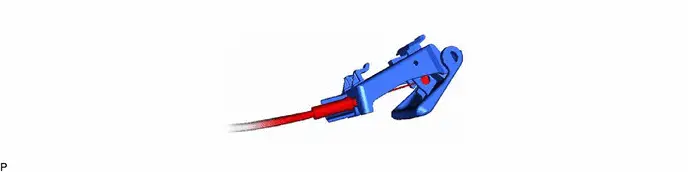

8. REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

9. REMOVE FRONT TIRE LH

Click here

10. REMOVE FRONT FENDER MOULDING SUB-ASSEMBLY LH

Click here

11. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

for HEV Model:

Click here

for PHEV Model:

Click here

12. REMOVE FRONT FENDER LINER LH

Click here

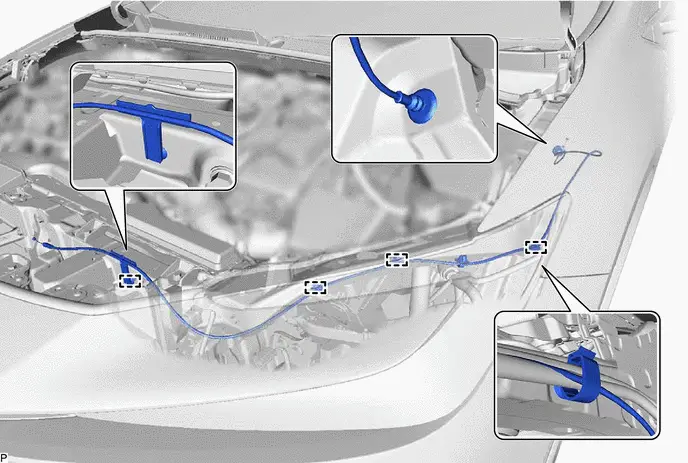

13. REMOVE HOODLOCK CONTROL CABLE & LEVER SET

Installation

INSTALLATION

CAUTION / NOTICE / HINT

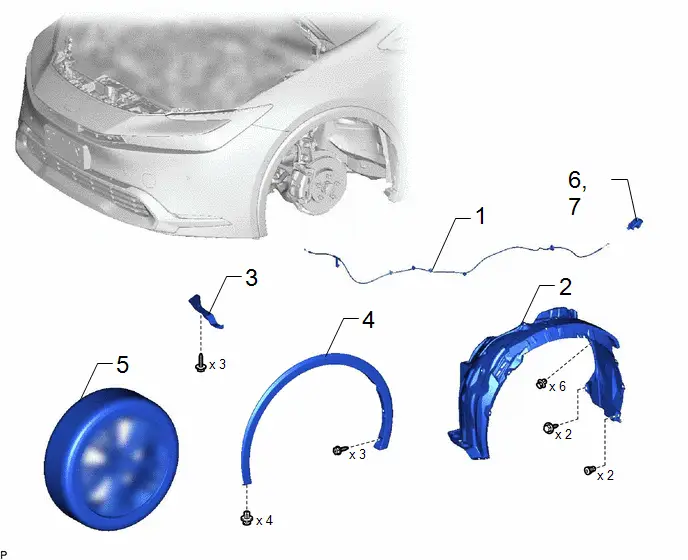

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	HOODLOCK CONTROL CABLE & LEVER SET	53630D	-	-	-
2	FRONT FENDER LINER LH	53876A	-	-	-
3	FRONT WHEEL OPENING EXTENSION PAD LH	53852B	-	-	-
4	FRONT FENDER MOULDING SUB-ASSEMBLY LH	75602A	-	-	-
5	FRONT TIRE LH	-	-	-	-
6	HOOD LOCK CONTROL LEVER SUB-ASSEMBLY	53601	-	-	-
7	CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY	53601	-	-	-

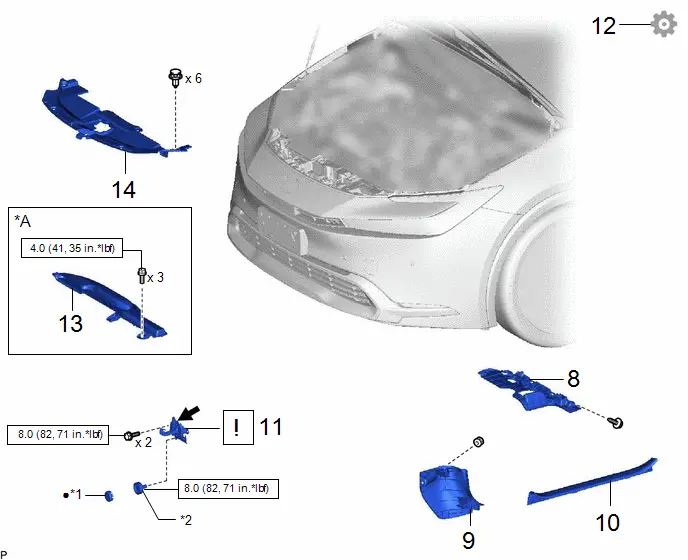

Procedure		Part Name Code
8	NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	55606	-	-	-
9	COWL SIDE TRIM BOARD LH	62112	-	-	-
10	FRONT DOOR SCUFF PLATE LH	67914	-	-	-
11	HOOD LOCK ASSEMBLY	53510		-	-
12	ADJUST HOOD SUB-ASSEMBLY	53301	-	-
13	INLET NO. 1 AIR CLEANER	17751	-	-	-
14	RADIATOR SUPPORT OPENING COVER	53289A	-	-	-

*A	for M20A-FXS	-	-
*1	HOOD LOCK NUT CAP	*2	HOOD LOCK BOLT
●	Non-reusable part	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque		MP grease

PROCEDURE

1. INSTALL HOODLOCK CONTROL CABLE & LEVER SET

2. INSTALL FRONT FENDER LINER LH

3. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH

4. INSTALL FRONT FENDER MOULDING SUB-ASSEMBLY LH

5. INSTALL FRONT TIRE LH

6. INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

7. CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

8. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

9. INSTALL COWL SIDE TRIM BOARD LH

10. INSTALL FRONT DOOR SCUFF PLATE LH

11. INSTALL HOOD LOCK ASSEMBLY

*1	Hood Lock Bolt	-	-
	MP grease	-	-

(1) Apply MP grease to the sliding areas of the hood lock assembly.

(2) Connect the hood lock control cable assembly to the hood lock assembly.

(3) Install the hood lock assembly with the 2 bolts and hood lock bolt.

Torque:

8.0 N·m {82 kgf·cm, 71 in·lbf}

(4) Connect the connector and engage the clamp.

12. ADJUST HOOD SUB-ASSEMBLY

Click here

13. INSTALL INLET NO. 1 AIR CLEANER (for M20A-FXS)

Click here

14. INSTALL RADIATOR SUPPORT OPENING COVER
