Toyota Prius: Pillar Speaker

Removal

REMOVAL

CAUTION / NOTICE / HINT

CAUTION / NOTICE / HINT

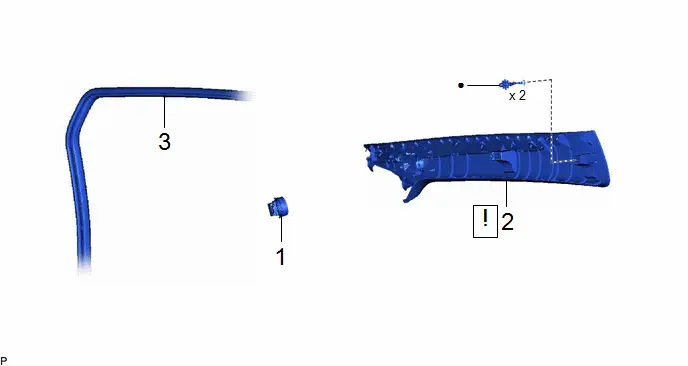

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	FRONT DOOR OPENING TRIM WEATHERSTRIP	62312B	-	-	-
2	FRONT PILLAR GARNISH LH	62212		-	-
3	FRONT NO. 2 SPEAKER ASSEMBLY	86160P	-	-	-

●

Non-reusable part

-

-

PROCEDURE

1. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP

Click here

2. REMOVE FRONT PILLAR GARNISH LH

Click here

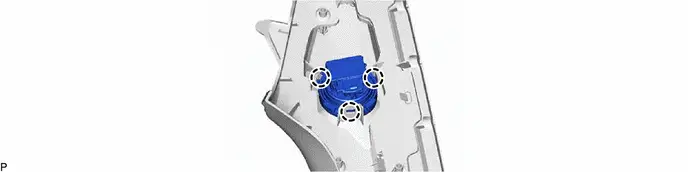

3. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY

Inspection

INSPECTION

PROCEDURE

1. INSPECT FRONT NO. 2 SPEAKER ASSEMBLY

(a) With the speaker installed, check that there is no looseness or other abnormalities.

(b) Check that there is no foreign matter in the speaker, no tears on the speaker cone or other abnormalities.

(c) When there is a possibility that either the right or left speaker is malfunctioning, interchange the speakers and perform an inspection. If the malfunction disappears after interchanging the speakers, replace the malfunctioning speaker.

HINT:

Connect all connectors to the speakers when performing an inspection. If the result is not as specified, replace the speaker.

Installation

INSTALLATION

CAUTION / NOTICE / HINT

CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	FRONT NO. 2 SPEAKER ASSEMBLY	86160P	-	-	-
2	FRONT PILLAR GARNISH LH	62212		-	-
3	FRONT DOOR OPENING TRIM WEATHERSTRIP	62312B	-	-	-

●

Non-reusable part

-

-

PROCEDURE

1. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY

2. INSTALL FRONT PILLAR GARNISH LH

Click here

3. CONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP
