Toyota Prius: Parking Assist Light

Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during parking assist light removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.
Parking assist light LH* Parking assist light RH*	Side television camera view adjustment	Parking Support Brake system
		Panoramic View Monitor System
		Advanced Park
Replacement or removal and installation of 2 or more parts: Front television camera assembly, Radiator grille or Front bumper assembly Rear television camera assembly Side television camera assembly LH, Parking assist light LH or Outer rear view mirror assembly LH Side television camera assembly RH, Parking assist light RH or Outer rear view mirror assembly RH	Television camera view adjustment	Panoramic View Monitor System

CAUTION / NOTICE / HINT

CAUTION / NOTICE / HINT

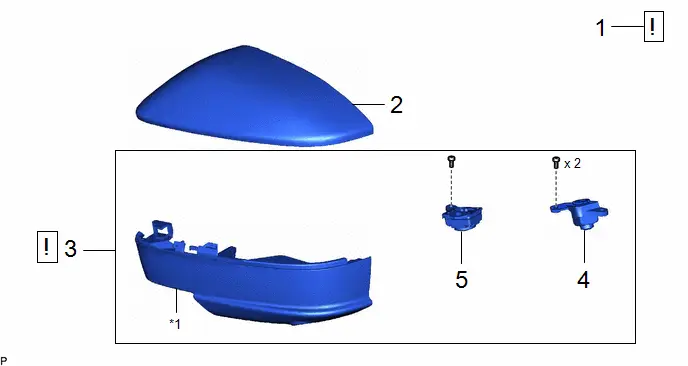

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	PRECAUTION	-		-	-
2	OUTER MIRROR COVER	87945	-	-	-
3	NO. 3 OUTER MIRROR COVER WITH TELEVISION CAMERA	-		-	-
4	SIDE TELEVISION CAMERA ASSEMBLY	86790F	-	-	-
5	PARKING ASSIST LIGHT	867A2A	-	-	-

*1

NO. 3 OUTER MIRROR COVER

-

-

PROCEDURE

1. PRECAUTION

Click here

2. REMOVE OUTER MIRROR COVER

Click here

3. REMOVE NO. 3 OUTER MIRROR COVER WITH TELEVISION CAMERA

Click here

4. REMOVE SIDE TELEVISION CAMERA ASSEMBLY

Click here

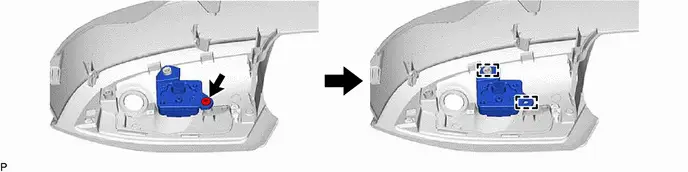

5. REMOVE PARKING ASSIST LIGHT

Installation

INSTALLATION

CAUTION / NOTICE / HINT

CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	PARKING ASSIST LIGHT	867A2A	-	-	-
2	SIDE TELEVISION CAMERA ASSEMBLY	86790F	-	-	-
3	NO. 3 OUTER MIRROR COVER WITH TELEVISION CAMERA	-	-	-	-
4	OUTER MIRROR COVER	87945	-	-	-
5	PERFORM CALIBRATION	-	-	-

*1

NO. 3 OUTER MIRROR COVER

-

-

PROCEDURE

1. INSTALL PARKING ASSIST LIGHT

2. INSTALL SIDE TELEVISION CAMERA ASSEMBLY

3. INSTALL NO. 3 OUTER MIRROR COVER WITH TELEVISION CAMERA

4. INSTALL OUTER MIRROR COVER

Click here

5. PERFORM CALIBRATION

(a) Click here

(b) w/ Parking Support Brake system:

Click here

(c) w/ Advanced Park:

Click here
