Toyota Prius: Outer Rear View Mirror Cover
Toyota Prius (XW60) 2023-2025 Service Manual / Vehicle Exterior / Mirror (ext) / Outer Rear View Mirror Cover
Removal
REMOVAL
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
CAUTION / NOTICE / HINT

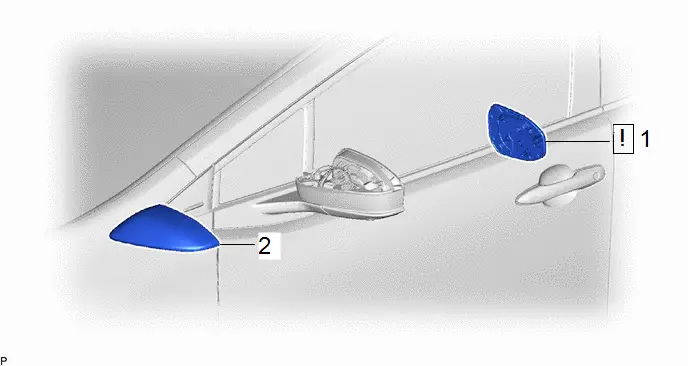

COMPONENTS (REMOVAL)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | OUTER MIRROR | 87961 |
| - | - |
| 2 | OUTER MIRROR COVER | 87945 | - | - | - |
PROCEDURE
1. REMOVE OUTER MIRROR
| Click here
|

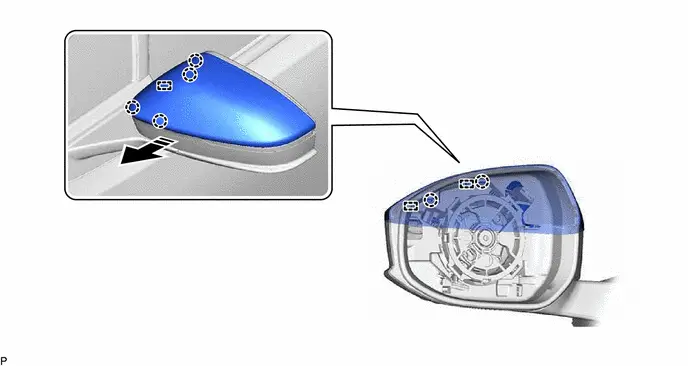

2. REMOVE OUTER MIRROR COVER
| Remove in this Direction | - | - |
Installation
INSTALLATION
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
CAUTION / NOTICE / HINT

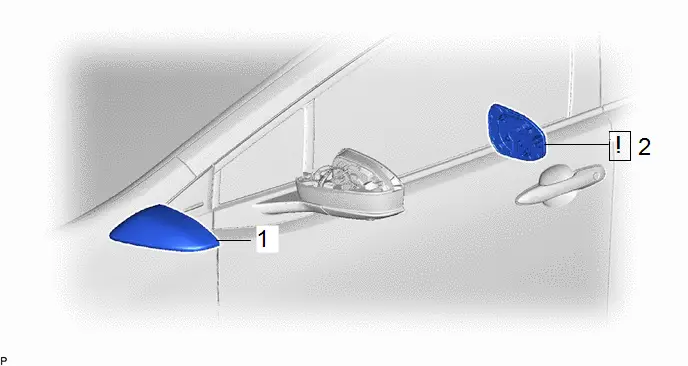

COMPONENTS (INSTALLATION)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | OUTER MIRROR COVER | 87945 | - | - | - |
| 2 | OUTER MIRROR | 87961 |
| - | - |
PROCEDURE
1. INSTALL OUTER MIRROR COVER
2. INSTALL OUTER MIRROR
| Click here
|
