Toyota Prius: M20a-fxs Air Cleaner Filter Element

Removal

REMOVAL

CAUTION / NOTICE / HINT

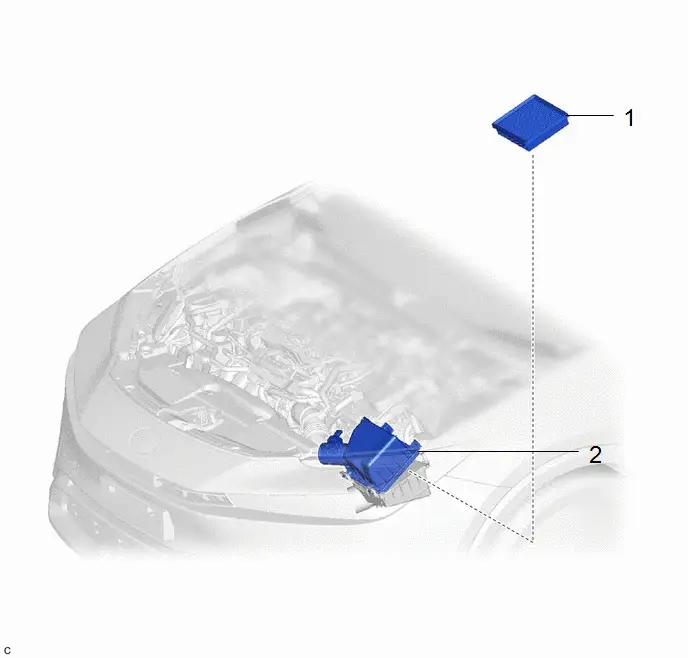

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	AIR CLEANER CAP SUB-ASSEMBLY	17705	-	-	-
2	AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY	17801	-	-	-
3	INSPECT AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY	17801		-	-

PROCEDURE

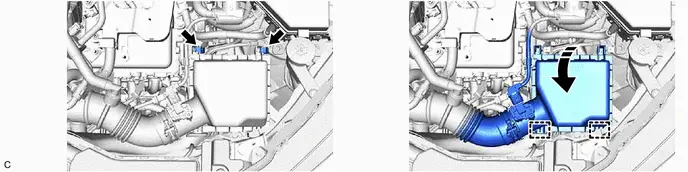

1. SEPARATE AIR CLEANER CAP SUB-ASSEMBLY

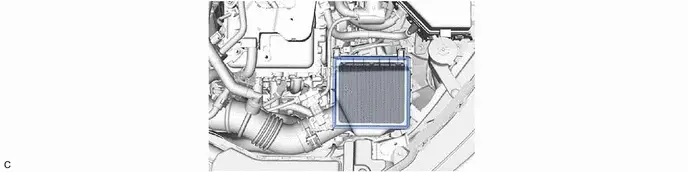

2. REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

3. INSPECT AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

HINT: This procedure is only performed when the air cleaner filter element sub-assembly will be reused.

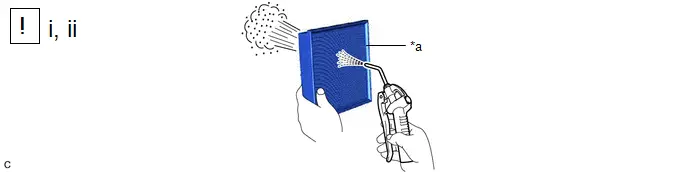

*a

Air Cleaner Filter Element Sub-assembly Intake Downstream Side (Air Cleaner Cap Sub-assembly Side)

-

-

(1) If the air cleaner filter element sub-assembly is dirty or has foreign matter adhered to it, clean the air cleaner filter element sub-assembly with compressed air.

NOTICE:

When cleaning the air cleaner filter element sub-assembly, blow the compressed air from the intake downstream side (from the air cleaner cap sub-assembly side).

(2) If the air cleaner filter element sub-assembly is still extremely dirty after cleaning it, replace the air cleaner filter element sub-assembly with a new one.

Installation

INSTALLATION

CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY	17801	-	-	-
2	AIR CLEANER CAP SUB-ASSEMBLY	17705	-	-	-

PROCEDURE

1. INSTALL AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

2. INSTALL AIR CLEANER CAP SUB-ASSEMBLY
