Toyota Prius: Luggage Compartment Room Light

Removal

REMOVAL

CAUTION / NOTICE / HINT

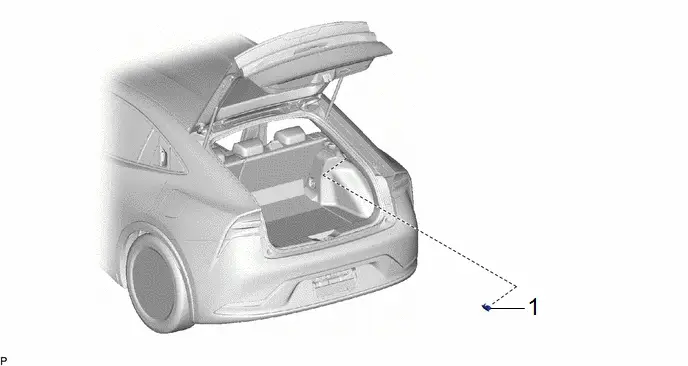

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY	81330		-	-

PROCEDURE

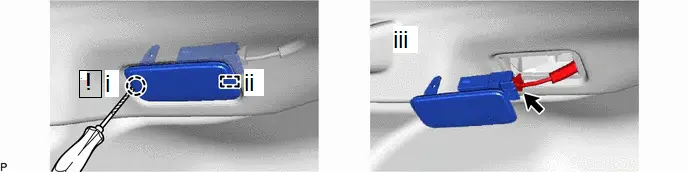

1. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

(1) Using a screwdriver with its tip wrapped with protective tape, disengage the claw.

(2) Disengage the guide and pull out the No. 1 luggage compartment light assembly.

(3) Disconnect the connector to remove the No. 1 luggage compartment light assembly.

Inspection

INSPECTION

PROCEDURE

1. INSPECT NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

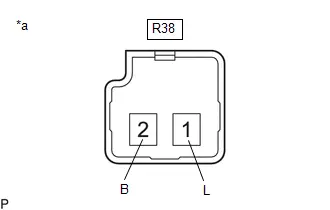

(a) Apply auxiliary battery voltage to the No. 1 luggage compartment light assembly and check that the light illuminates. OK: Click Location & Routing(R38) Click Connector(R38) Tester Connection Specified Condition R38-2 (B) - Auxiliary battery positive ( ) R38-1 (L) - Auxiliary battery negative (-) Luggage compartment light illuminates If the result is not as specified, replace the No. 1 luggage compartment light assembly.

*a Component without harness connected (No. 1 Luggage Compartment Light Assembly)

Installation

INSTALLATION

CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY	81330	-	-	-

PROCEDURE

1. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY
