Components

COMPONENTS

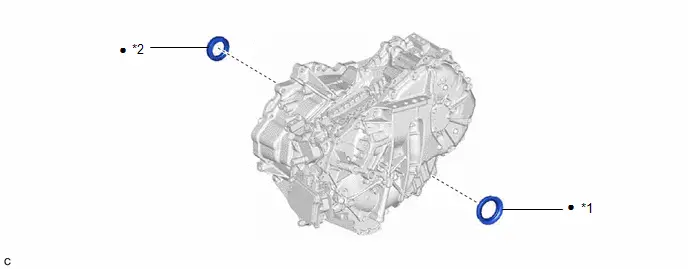

ILLUSTRATION

*1	FRONT DRIVE SHAFT OIL SEAL LH	*2	FRONT DRIVE SHAFT OIL SEAL RH
●	Non-reusable part	-	-

Replacement

REPLACEMENT

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during front drive shaft oil seal LH or front drive shaft oil seal RH removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
1: Also necessary after performing a tire rotation. 2: It is not necessary to perform this procedure if the tire pressure warning valve and transmitters are installed to the same location. *3: The Toyota Prius vehicle height changes because of tire replacement.
Front wheel alignment adjustment	Perform "Calibration"	DTCs are stored ABS warning light illuminates Brake system warning light (yellow indicator) illuminates Slip indicator light illuminates Electronically controlled brake system disabled or malfunctions
Suspension parts	Rear television camera assembly optical axis (Back camera position setting)	Parking Assist Monitor System
	Parking assist ECU initialization	Panoramic View Monitor System
	Parking assist ECU initialization	Advanced Park
Tires	Initialization12 Tire Position Identification12	Tire Pressure Warning System	Refer to Procedures Necessary When Replacing Parts (for Tire Pressure Warning System) table below
	Rear television camera assembly optical axis (Back camera position setting)*3	Parking Assist Monitor System
	Parking assist ECU initialization*3	Panoramic View Monitor System
	Parking assist ECU initialization*3	Advanced Park

PROCEDURE

1. REMOVE FRONT DRIVE SHAFT ASSEMBLY

Click here

2. REMOVE FRONT DRIVE SHAFT OIL SEAL LH

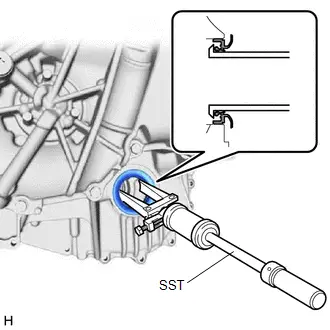

(a) Using SST, remove the front drive shaft oil seal LH from the hybrid Toyota Prius vehicle transaxle assembly.

SST: 09308-00010

NOTICE:

Be careful not to damage the hybrid vehicle transaxle assembly.

3. REMOVE FRONT DRIVE SHAFT OIL SEAL RH

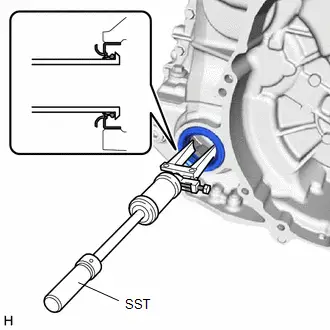

(a) Using SST, remove the front drive shaft oil seal RH from the hybrid Toyota Prius vehicle transaxle assembly.

SST: 09308-00010

NOTICE:

Be careful not to damage the hybrid vehicle transaxle assembly.

4. INSTALL FRONT DRIVE SHAFT OIL SEAL RH

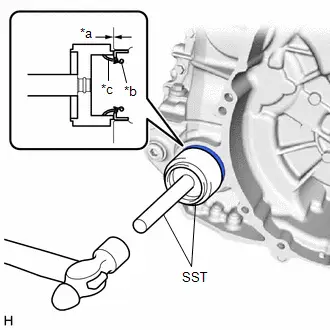

(a) Using SST and a hammer, install a new front drive shaft oil seal RH to the hybrid Toyota Prius vehicle transaxle assembly.

*a	Depth
*b	Main Lip
*c	Side Lip

SST: 09316-10010

SST: 09950-70010

09951-07100

Standard Depth:

-0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

NOTICE:

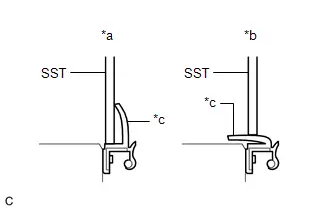

Make sure that the side lip of the front drive shaft oil seal RH is not pinched by SST.

*a

Correct

*b

Incorrect

*c

Side Lip
Do not allow foreign matter to attach to the main lip and side lip of the front drive shaft oil seal RH.
Do not install the front drive shaft oil seal RH at an angle.
Do not remove the grease from the main lip and side lip of the front drive shaft oil seal RH.

5. INSTALL FRONT DRIVE SHAFT OIL SEAL LH

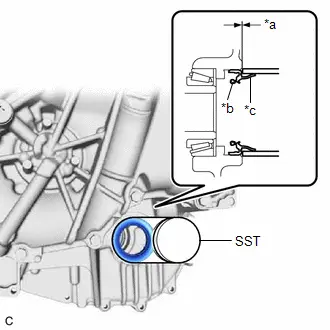

(a) Using SST and a hammer, install a new front drive shaft oil seal LH to the hybrid Toyota Prius vehicle transaxle assembly.

SST: 09506-42020

Standard Depth:

-0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

*a	Depth
*b	Main Lip
*c	Side Lip

NOTICE:

Make sure that the side lip of the front drive shaft oil seal LH is not pinched by SST.

*a

Correct

*b

Incorrect

*c

Side Lip
Do not allow foreign matter to attach to the main lip and side lip of the front drive shaft oil seal LH.
Do not install the front drive shaft oil seal LH at an angle.
Do not remove the grease from the main lip and side lip of the front drive shaft oil seal LH.
