Toyota Prius: Heat Pump Ecu

• Removal
• Installation

Removal

REMOVAL

CAUTION / NOTICE / HINT

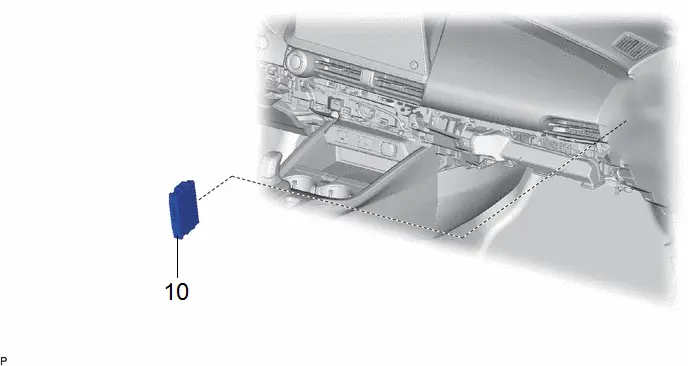

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	LOWER CENTER INSTRUMENT PANEL FINISH PANEL	55434B	-	-	-
2	LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY	55406B	-	-	-
3	INSTRUMENT SIDE PANEL RH	55317A	-	-	-
4	NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY WITH AIR CONDITIONING CONTROL ASSEMBLY	-	-	-	-
5	FRONT DOOR SCUFF PLATE RH	67913	-	-	-
6	COWL SIDE TRIM BOARD RH	62111C	-	-	-
7	NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	55607	-	-	-
8	GLOVE COMPARTMENT DOOR ASSEMBLY	55550		-	-
9	LOWER INSTRUMENT PANEL SUB-ASSEMBLY	55303B	-	-	-

Procedure		Part Name Code
10	HEAT PUMP ECU ASSEMBLY	886A0	-	-	-

PROCEDURE

1. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

Click here

2. REMOVE LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

Click here

3. REMOVE INSTRUMENT SIDE PANEL RH

Click here

4. REMOVE NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY WITH AIR CONDITIONING CONTROL ASSEMBLY

Click here

5. REMOVE FRONT DOOR SCUFF PLATE RH

(a) Use the same procedure as for the LH side.

Click here

6. REMOVE COWL SIDE TRIM BOARD RH

(a) Use the same procedure as for the LH side.

Click here

7. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click here

8. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

Click here

9. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY

Click here

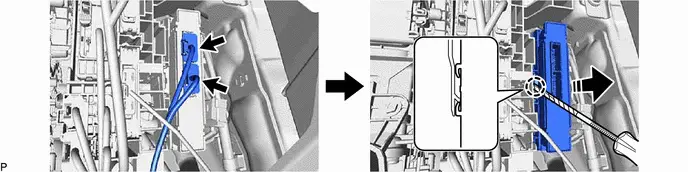

10. REMOVE HEAT PUMP ECU ASSEMBLY

Remove in this Direction

-

-

Installation

INSTALLATION

CAUTION / NOTICE / HINT

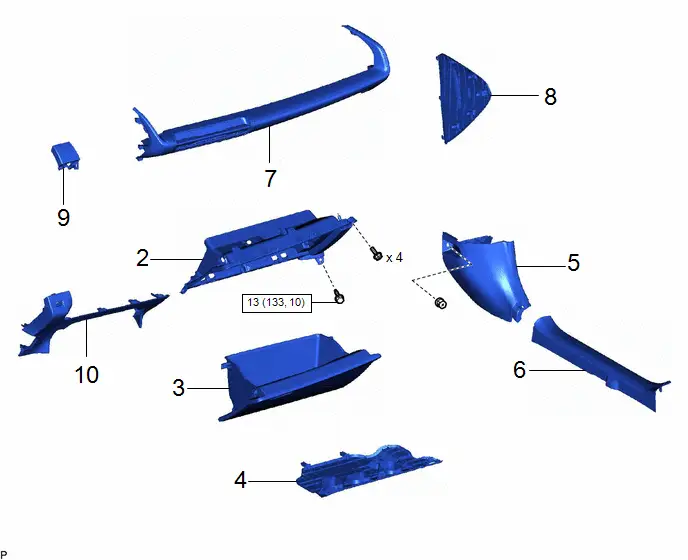

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	HEAT PUMP ECU ASSEMBLY	886A0	-	-	-

Procedure		Part Name Code
2	LOWER INSTRUMENT PANEL SUB-ASSEMBLY	55303B	-	-	-
3	GLOVE COMPARTMENT DOOR ASSEMBLY	55550	-	-	-
4	NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	55607	-	-	-
5	COWL SIDE TRIM BOARD RH	62111C	-	-	-
6	FRONT DOOR SCUFF PLATE RH	67913	-	-	-
7	NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY WITH AIR CONDITIONING CONTROL ASSEMBLY	-	-	-	-
8	INSTRUMENT SIDE PANEL RH	55317A	-	-	-
9	LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY	55406B	-	-	-
10	LOWER CENTER INSTRUMENT PANEL FINISH PANEL	55434B	-	-	-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

PROCEDURE

1. INSTALL HEAT PUMP ECU ASSEMBLY

2. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY

Click here

3. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY

4. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

5. INSTALL COWL SIDE TRIM BOARD RH

6. INSTALL FRONT DOOR SCUFF PLATE RH

7. INSTALL NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY WITH AIR CONDITIONING CONTROL ASSEMBLY

8. INSTALL INSTRUMENT SIDE PANEL RH

9. INSTALL LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

10. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL
