Toyota Prius: High Pressure Magnetic Valve

Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during No. 2 magnet valve assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.
Front bumper assembly*	Front television camera view adjustment	Panoramic View Monitor System
		Advanced Park

CAUTION / NOTICE / HINT

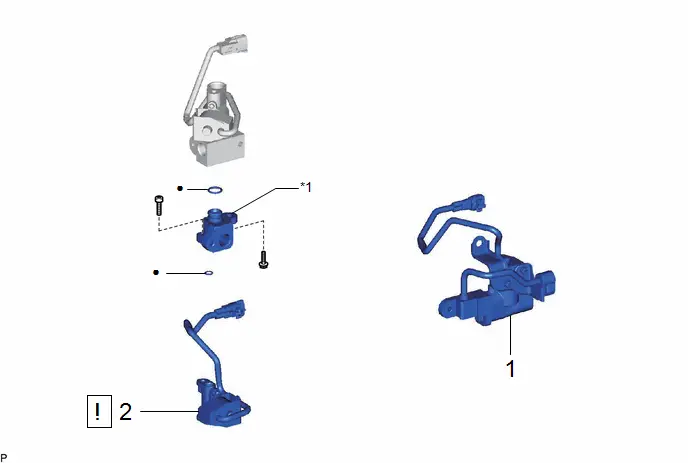

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	NO. 1 MAGNET VALVE ASSEMBLY	88690M	-	-	-
2	NO. 2 MAGNET VALVE ASSEMBLY	88690N		-	-

*1	VALVE TO CONNECTOR TUBE	-	-
●	Non-reusable part	-	-

PROCEDURE

1. REMOVE NO. 1 MAGNET VALVE ASSEMBLY

Click here

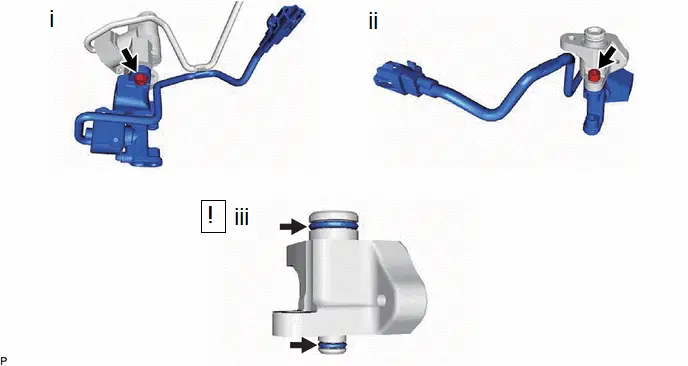

2. REMOVE NO. 2 MAGNET VALVE ASSEMBLY

(1) Remove the bolt and No. 2 magnet valve assembly with valve to connector tube.

(2) Using a 5 mm hexagon socket wrench, remove the hexagon bolt and No. 2 magnet valve assembly from the valve to connector tube.

NOTICE:

Do not apply excessive force to the valve to connector tube.

(3) Remove the 2 O-rings from the valve to connector tube.

NOTICE:

Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

Inspection

INSPECTION

PROCEDURE

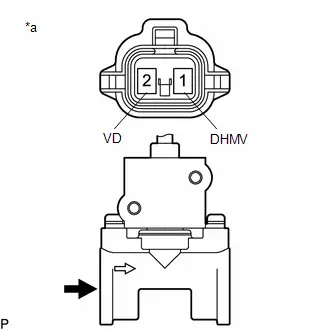

1. INSPECT NO. 2 MAGNET VALVE ASSEMBLY

(a) Apply auxiliary battery voltage to the terminals of the connector, and check the No. 2 magnet valve assembly operates. OK: Auxiliary Battery Connection Specified Condition Auxiliary battery positive ( ) → 2 (VD) Auxiliary battery negative (-) → 1 (DHMV) Apply compressed air to the air inlet and check that air not comes out from the air outlet. If the result is not as specified, replace the No. 2 magnet valve assembly.

*a Component without harness connected (No. 2 Magnet Valve Assembly)

Installation

INSTALLATION

CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	NO. 2 MAGNET VALVE ASSEMBLY	88690N		-	-
2	NO. 1 MAGNET VALVE ASSEMBLY	88690M	-	-	-

*1	VALVE TO CONNECTOR TUBE	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	●	Non-reusable part
	Compressor oil ND-OIL 11 or equivalent	-	-

PROCEDURE

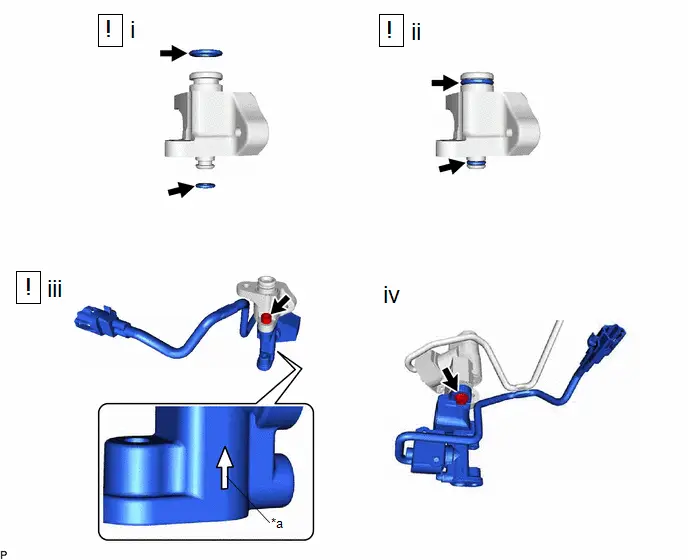

1. INSTALL NO. 2 MAGNET VALVE ASSEMBLY

*a

Reference Point

-

-

(1) Remove the vinyl tape from the connector tube and No. 2 magnet valve assembly, and sufficiently apply compressor oil to 2 new O-rings and the fitting surface of the valve to connector tube.

Compressor Oil:

ND-OIL 11 or equivalent

(2) Install the 2 O-rings to the valve to connector tube.

NOTICE:

Keep the O-ring and O-ring fitting surface free from foreign matter.

(3) Using a 5 mm hexagon socket wrench, install the No. 2 magnet valve assembly to the valve to connector tube with the hexagon bolt.

NOTICE:

Make sure to install the No. 2 magnet valve assembly with the arrow facing the direction shown in the illustration.

Torque:

9.8 N·m {100 kgf·cm, 87 in·lbf}

(4) Install the No. 2 magnet valve assembly with valve to connector tube with the bolt.

Torque:

9.8 N·m {100 kgf·cm, 87 in·lbf}

2. INSTALL NO. 1 MAGNET VALVE ASSEMBLY

Click here
