Toyota Prius: Headlight Leveling Switch
Removal
REMOVAL
CAUTION / NOTICE / HINT

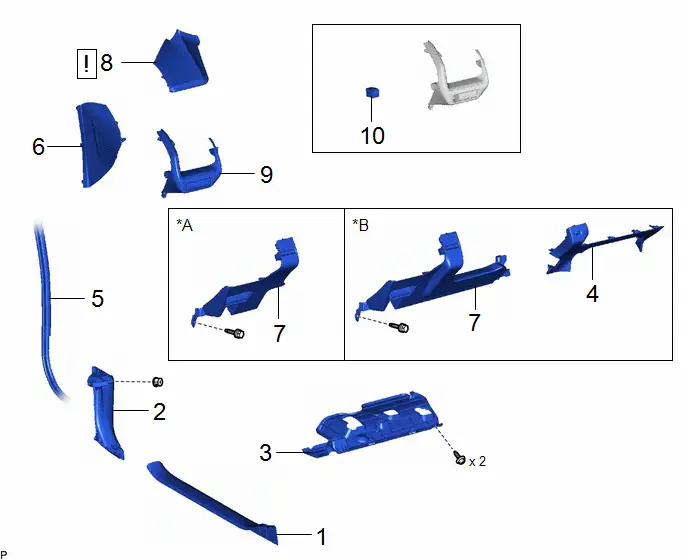

COMPONENTS (REMOVAL)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | FRONT DOOR SCUFF PLATE | 67914 | - | - | - |
| 2 | COWL SIDE TRIM BOARD | 62112 | - | - | - |
| 3 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | 55606 | - | - | - |
| 4 | LOWER CENTER INSTRUMENT PANEL FINISH PANEL | 55434B | - | - | - |
| 5 | FRONT DOOR OPENING TRIM WEATHERSTRIP | 62312B | - | - | - |
| 6 | INSTRUMENT SIDE PANEL | 55318C | - | - | - |
| 7 | LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY | 55480D | - | - | - |
| 8 | INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY | 55410C |
| - | - |
| 9 | NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY | 55011A | - | - | - |
| 10 | HEADLIGHT LEVELING SWITCH | 84152 | - | - | - |
| *A | w/ Knee Airbag | *B | w/o Knee Airbag |
PROCEDURE
1. REMOVE FRONT DOOR SCUFF PLATE
Click here
2. REMOVE COWL SIDE TRIM BOARD
Click here
3. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Click here
4. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL (w/o Knee Airbag)
Click here
5. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP
Click here
6. REMOVE INSTRUMENT SIDE PANEL
Click here
7. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY
Click here
8. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
| Click here
|
9. REMOVE NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY
Click here

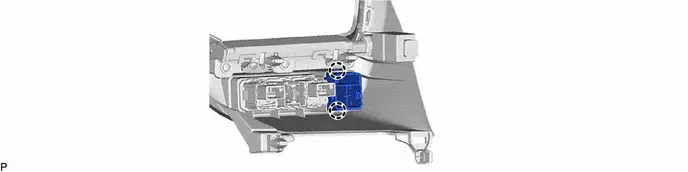

10. REMOVE HEADLIGHT LEVELING SWITCH
Inspection
INSPECTION
PROCEDURE
1. INSPECT HEADLIGHT LEVELING SWITCH

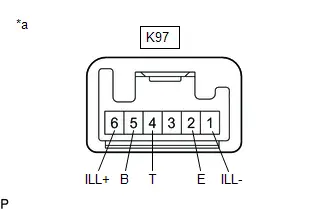

| (a) Voltage Check (1) Connect a positive ( ) lead from the auxiliary battery to terminal K97-5 (B) and a negative (-) lead to terminal K97-2 (E). (2) Measure the voltage according to the value(s) in the table below. Standard Voltage:  Click Location & Routing(K97) Click Connector(K97)
HINT: Auxiliary battery voltage is 12 V. If the result is not as specified, replace the headlight leveling switch. |
|
(b) Illumination Inspection
(1) Apply auxiliary battery voltage to the headlight leveling switch and check that the switch illuminates.
OK:
| Measurement Condition | Condition | Specified Condition |
|---|---|---|
| Auxiliary battery positive ( ) → Terminal K97-6 (ILL ) Auxiliary battery negative (-) → Terminal K97-1 (ILL-) | Always | Switch illumination illuminates |
If the result is not as specified, replace the headlight leveling switch.
Installation
INSTALLATION
CAUTION / NOTICE / HINT

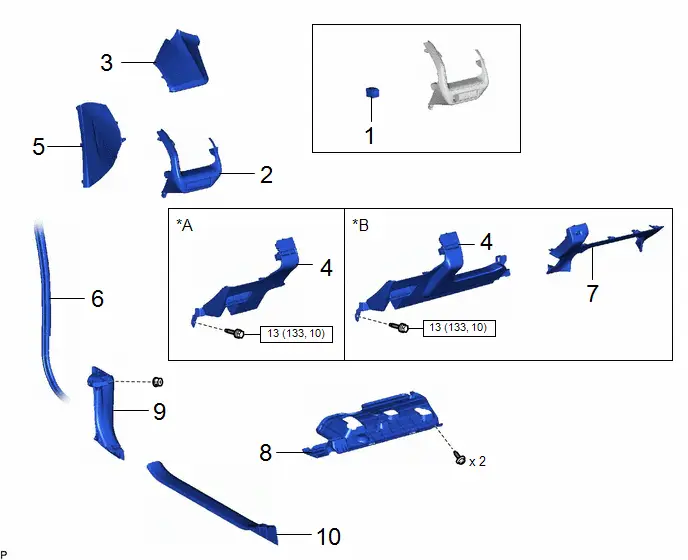

COMPONENTS (INSTALLATION)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | HEADLIGHT LEVELING SWITCH | 84152 | - | - | - |
| 2 | NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY | 55011A | - | - | - |
| 3 | INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY | 55410C | - | - | - |
| 4 | LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY | 55480D | - | - | - |
| 5 | INSTRUMENT SIDE PANEL | 55318C | - | - | - |
| 6 | FRONT DOOR OPENING TRIM WEATHERSTRIP | 62312B | - | - | - |
| 7 | LOWER CENTER INSTRUMENT PANEL FINISH PANEL | 55434B | - | - | - |
| 8 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | 55606 | - | - | - |
| 9 | COWL SIDE TRIM BOARD | 62112 | - | - | - |
| 10 | FRONT DOOR SCUFF PLATE | 67914 | - | - | - |
| *A | w/ Knee Airbag | *B | w/o Knee Airbag |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
PROCEDURE
1. INSTALL HEADLIGHT LEVELING SWITCH
2. INSTALL NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY
3. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
4. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY
5. INSTALL INSTRUMENT SIDE PANEL
6. CONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP
7. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL (w/o Knee Airbag)
8. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
9. INSTALL COWL SIDE TRIM BOARD
10. INSTALL FRONT DOOR SCUFF PLATE
Toyota Prius (XW60) 2023-2025 Service Manual
Headlight Leveling Switch
