Toyota Prius: Glove Box Light

• Removal
• Inspection
• Installation

Removal

REMOVAL

CAUTION / NOTICE / HINT

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	FRONT DOOR SCUFF PLATE LH	67914	-	-	-
2	COWL SIDE TRIM BOARD LH	62112	-	-	-
3	NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	55606	-	-	-

*A

w/ Knee Airbag

-

-

Procedure		Part Name Code
4	LOWER CENTER INSTRUMENT PANEL FINISH PANEL	55434B	-	-	-
5	INSTRUMENT SIDE PANEL RH	55317A	-	-	-
6	NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY WITH AIR CONDITIONING CONTROL ASSEMBLY	-	-	-	-
7	FRONT DOOR SCUFF PLATE RH	67913	-	-	-
8	COWL SIDE TRIM BOARD RH	62111C	-	-	-
9	NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	55607	-	-	-
10	GLOVE COMPARTMENT DOOR ASSEMBLY	55550		-	-
11	LOWER INSTRUMENT PANEL SUB-ASSEMBLY	55303B	-	-	-
12	NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY	81080J	-	-	-

PROCEDURE

1. REMOVE FRONT DOOR SCUFF PLATE LH (w/ Knee Airbag)

Click here

2. REMOVE COWL SIDE TRIM BOARD LH (w/ Knee Airbag)

Click here

3. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (w/ Knee Airbag)

Click here

4. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

Click here

5. REMOVE INSTRUMENT SIDE PANEL RH

Click here

6. REMOVE NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY WITH AIR CONDITIONING CONTROL ASSEMBLY

Click here

7. REMOVE FRONT DOOR SCUFF PLATE RH

(a) Use the same procedure as for the LH side.

Click here

8. REMOVE COWL SIDE TRIM BOARD RH

(a) Use the same procedure as for the LH side.

Click here

9. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click here

10. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

Click here

11. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY

Click here

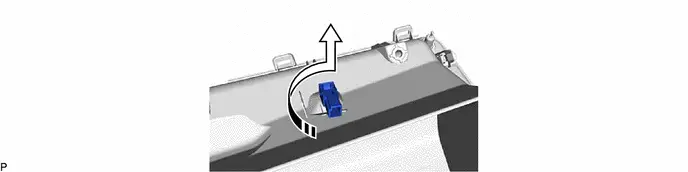

12. REMOVE NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY

Remove in this Direction

-

-

Inspection

INSPECTION

PROCEDURE

1. INSPECT NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY

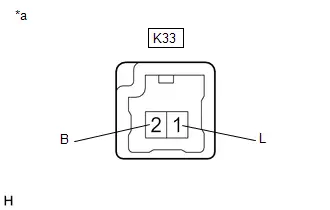

(a) Apply auxiliary battery voltage to the No. 1 interior illumination light assembly and check that the light illuminates. OK: Click Location & Routing(K33) Click Connector(K33) Tester Connection Specified Condition K33-2 (B) → Auxiliary battery positive ( ) K33-1 (L) → Auxiliary battery negative (-) Glove box light illuminates If the result is not as specified, replace the No. 1 interior illumination light assembly.

*a Component without harness connected (No. 1 Interior Illumination Light Assembly)

Installation

INSTALLATION

CAUTION / NOTICE / HINT

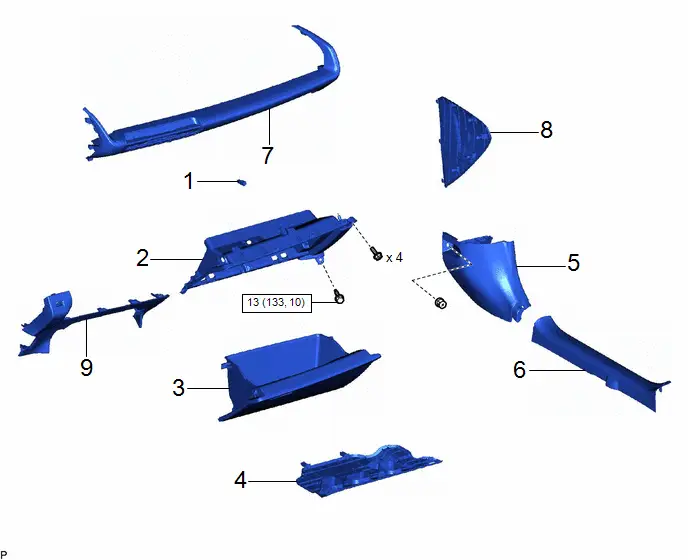

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY	81080J	-	-	-
2	LOWER INSTRUMENT PANEL SUB-ASSEMBLY	55303B	-	-	-
3	GLOVE COMPARTMENT DOOR ASSEMBLY	55550	-	-	-
4	NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	55607	-	-	-
5	COWL SIDE TRIM BOARD RH	62111C	-	-	-
6	FRONT DOOR SCUFF PLATE RH	67913	-	-	-
7	NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY WITH AIR CONDITIONING CONTROL ASSEMBLY	-	-	-	-
8	INSTRUMENT SIDE PANEL RH	55317A	-	-	-
9	LOWER CENTER INSTRUMENT PANEL FINISH PANEL	55434B	-	-	-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

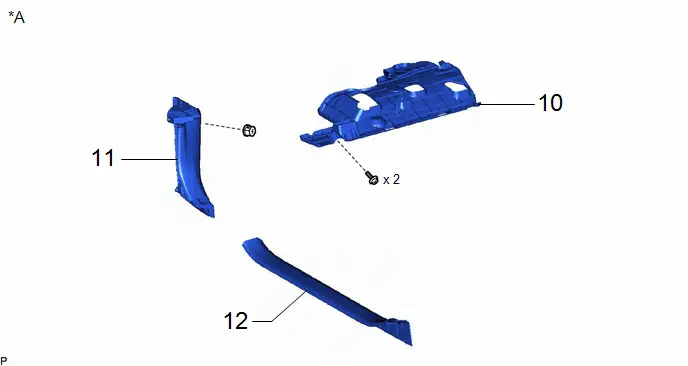

Procedure		Part Name Code
10	NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	55606	-	-	-
11	COWL SIDE TRIM BOARD LH	62112	-	-	-
12	FRONT DOOR SCUFF PLATE LH	67914	-	-	-

*A

w/ Knee Airbag

-

-

PROCEDURE

1. INSTALL NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY

2. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY

Click here

3. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY

4. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

5. INSTALL COWL SIDE TRIM BOARD RH

6. INSTALL FRONT DOOR SCUFF PLATE RH

7. INSTALL NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY WITH AIR CONDITIONING CONTROL ASSEMBLY

8. INSTALL INSTRUMENT SIDE PANEL RH

9. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL

10. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (w/ Knee Airbag)

11. INSTALL COWL SIDE TRIM BOARD LH (w/ Knee Airbag)

12. INSTALL FRONT DOOR SCUFF PLATE LH (w/ Knee Airbag)
