Toyota Prius: Footwell Light

• Removal
• Inspection
• Installation

Removal

REMOVAL

CAUTION / NOTICE / HINT

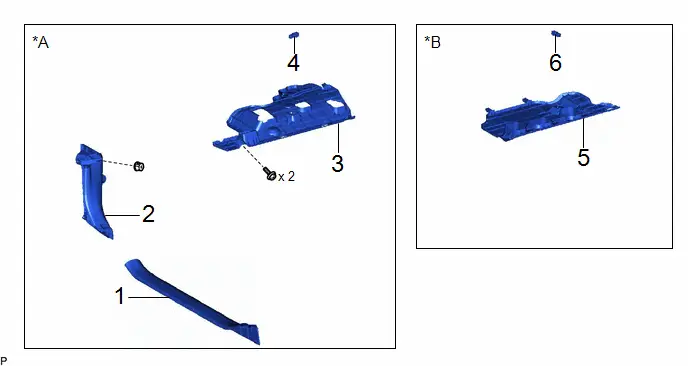

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	FRONT DOOR SCUFF PLATE LH	67914	-	-	-
2	COWL SIDE TRIM BOARD LH	62112	-	-	-
3	NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	55606	-	-	-
4	NO. 2 INTERIOR ILLUMINATION LIGHT ASSEMBLY	81080V	-	-	-
5	NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	55607	-	-	-
6	NO. 2 INTERIOR ILLUMINATION LIGHT ASSEMBLY	81080V	-	-	-

*A

for Driver Side

*B

for Front Passenger Side

PROCEDURE

1. REMOVE FRONT DOOR SCUFF PLATE LH (for Driver Side)

Click here

2. REMOVE COWL SIDE TRIM BOARD LH (for Driver Side)

Click here

3. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (for Driver Side)

Click here

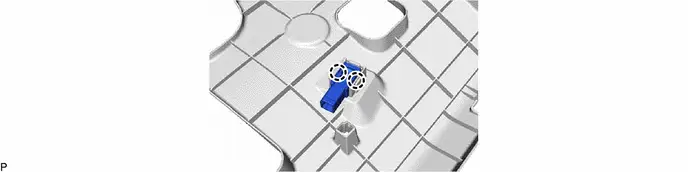

4. REMOVE NO. 2 INTERIOR ILLUMINATION LIGHT ASSEMBLY (for Driver Side)

5. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (for Front Passenger Side)

Click here

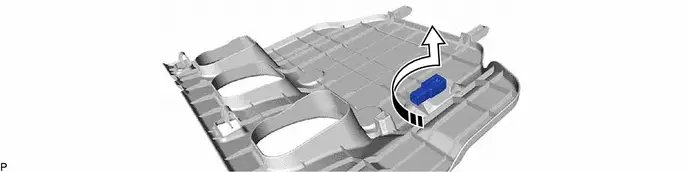

6. REMOVE NO. 2 INTERIOR ILLUMINATION LIGHT ASSEMBLY (for Front Passenger Side)

Remove in this Direction

-

-

Inspection

INSPECTION

PROCEDURE

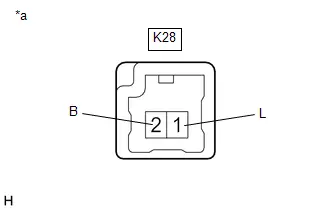

1. INSPECT NO. 2 INTERIOR ILLUMINATION LIGHT ASSEMBLY (for Driver Side)

(a) Apply auxiliary battery voltage to the No. 2 interior illumination light assembly and check that the light illuminates. OK: Click Location & Routing(K28) Click Connector(K28) Tester Connection Specified Condition K28-2 (B) - Auxiliary battery positive ( ) K28-1 (L) - Auxiliary battery negative (-) Front footwell light illuminates If the result is not as specified, replace the No. 2 interior illumination light assembly.

*a Component without harness connected (No. 2 Interior Illumination Light Assembly)

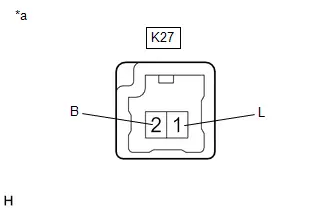

2. INSPECT NO. 2 INTERIOR ILLUMINATION LIGHT ASSEMBLY (for Front Passenger Side)

(a) Apply auxiliary battery voltage to the No. 2 interior illumination light assembly and check that the light illuminates. OK: Click Location & Routing(K27) Click Connector(K27) Tester Connection Specified Condition K27-1 (B) - Auxiliary battery positive ( ) K27-1 (L) - Auxiliary battery negative (-) Front footwell light illuminates If the result is not as specified, replace the No. 2 interior illumination light assembly.

*a Component without harness connected (No. 2 Interior Illumination Light Assembly)

Installation

INSTALLATION

CAUTION / NOTICE / HINT

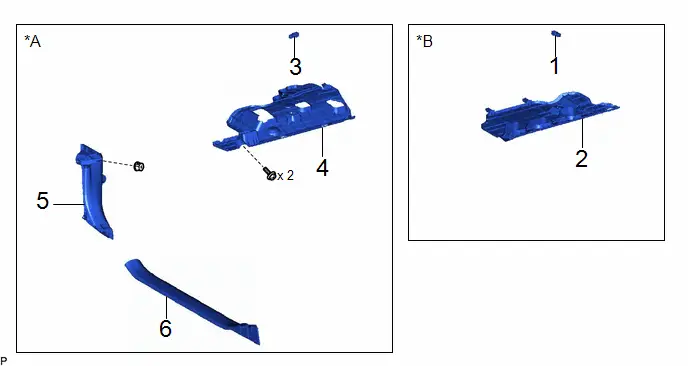

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	NO. 2 INTERIOR ILLUMINATION LIGHT ASSEMBLY	81080V	-	-	-
2	NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	55607	-	-	-
3	NO. 2 INTERIOR ILLUMINATION LIGHT ASSEMBLY	81080V	-	-	-
4	NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	55606	-	-	-
5	COWL SIDE TRIM BOARD LH	62112	-	-	-
6	FRONT DOOR SCUFF PLATE LH	67914	-	-	-

*A

for Driver Side

*B

for Front Passenger Side

PROCEDURE

1. INSTALL NO. 2 INTERIOR ILLUMINATION LIGHT ASSEMBLY (for Front Passenger Side)

2. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (for Front Passenger Side)

3. INSTALL NO. 2 INTERIOR ILLUMINATION LIGHT ASSEMBLY (for Driver Side)

4. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (for Driver Side)

5. INSTALL COWL SIDE TRIM BOARD LH (for Driver Side)

6. INSTALL FRONT DOOR SCUFF PLATE LH (for Driver Side)
