Toyota Prius: Fuel Lid Opener Switch
Removal
REMOVAL
CAUTION / NOTICE / HINT

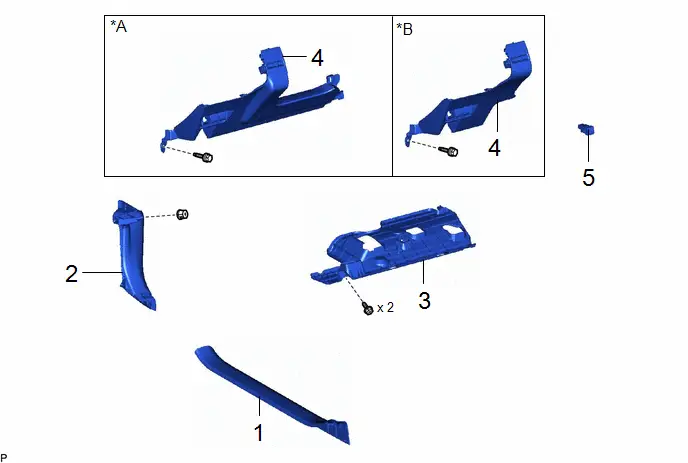

COMPONENTS (REMOVAL)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | FRONT DOOR SCUFF PLATE LH | 67914 | - | - | - |
| 2 | COWL SIDE TRIM BOARD LH | 62112 | - | - | - |
| 3 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | 55606 | - | - | - |
| 4 | LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY | 55480D | - | - | - |
| 5 | FUEL LID OPENER SWITCH | 84841A | - | - | - |
| *A | w/o Knee Airbag | *B | w/ Knee Airbag |
PROCEDURE
1. REMOVE FRONT DOOR SCUFF PLATE LH
Click here
2. REMOVE COWL SIDE TRIM BOARD LH
Click here
3. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Click here
4. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY
Click here

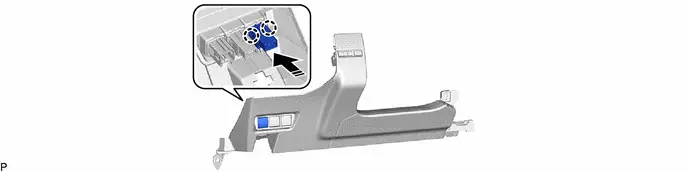

5. REMOVE FUEL LID OPENER SWITCH
| Remove in this Direction | - | - |
Inspection
INSPECTION
PROCEDURE
1. INSPECT FUEL LID OPENER SWITCH

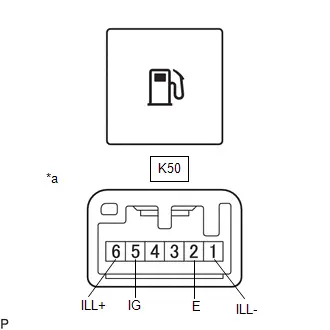

| (a) Measure the resistance according to the value(s) in the table below. Standard Resistance:  Click Location & Routing(K50) Click Connector(K50)
If the result is not as specified, replace the fuel lid opener switch. |
|
(b) Check that the switch illuminates.
(1) Apply auxiliary battery voltage to the fuel lid opener switch and check that the switch illuminates.
OK:
Click Location & Routing(K50) Click Connector(K50) | Tester Connection | Condition | Specified Condition |
|---|---|---|
| Auxiliary battery positive ( ) → K50-6 (ILL ) Auxiliary battery negative (-) → K50-1 (ILL-) | Always | Switch illumination illuminates |
If the result is not as specified, replace the fuel lid opener switch.
Installation
INSTALLATION
CAUTION / NOTICE / HINT

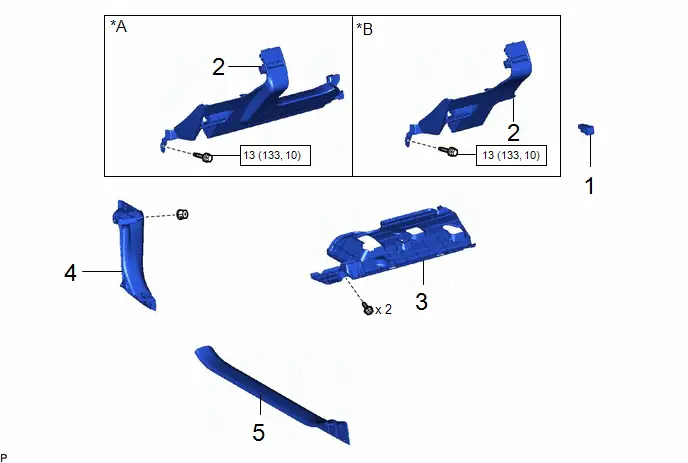

COMPONENTS (INSTALLATION)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | FUEL LID OPENER SWITCH | 84841A | - | - | - |
| 2 | LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY | 55480D | - | - | - |
| 3 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | 55606 | - | - | - |
| 4 | COWL SIDE TRIM BOARD LH | 62112 | - | - | - |
| 5 | FRONT DOOR SCUFF PLATE LH | 67914 | - | - | - |
| *A | w/o Knee Airbag | *B | w/ Knee Airbag |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
PROCEDURE
1. INSTALL FUEL LID OPENER SWITCH
2. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY
Click here
3. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
4. INSTALL COWL SIDE TRIM BOARD LH
5. INSTALL FRONT DOOR SCUFF PLATE LH
