Toyota Prius: Front Pillar Upper Cover
Removal
REMOVAL
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
CAUTION / NOTICE / HINT

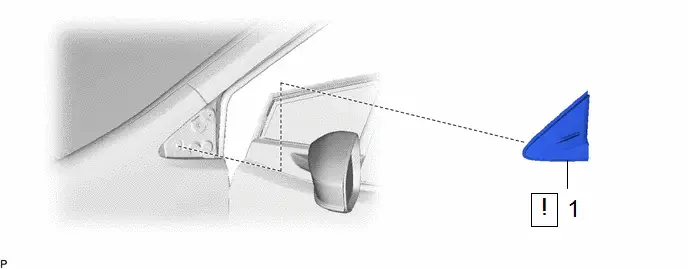

COMPONENTS (REMOVAL)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | FRONT PILLAR UPPER COVER SUB-ASSEMBLY | 60118 |
| - | - |
PROCEDURE
1. REMOVE FRONT PILLAR UPPER COVER SUB-ASSEMBLY
| Remove in this Direction | - | - |

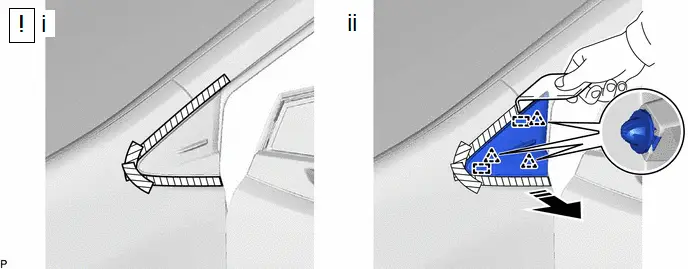

(1) Apply protective tape around the front pillar upper cover sub-assembly as shown in the illustration.
(2) Using a moulding remover, disengage the 3 clips and 2 guides as shown in the illustration to remove the front pillar upper cover sub-assembly.
Installation
INSTALLATION
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
CAUTION / NOTICE / HINT

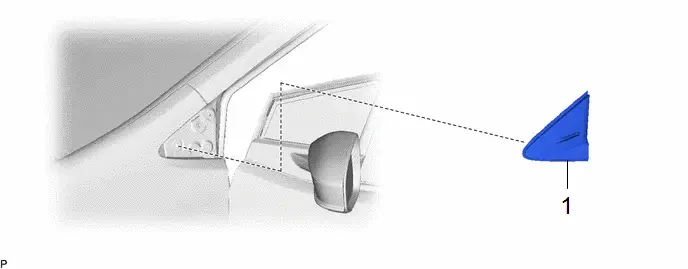

COMPONENTS (INSTALLATION)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | FRONT PILLAR UPPER COVER SUB-ASSEMBLY | 60118 | - | - | - |
PROCEDURE
1. INSTALL FRONT PILLAR UPPER COVER SUB-ASSEMBLY
Removal
REMOVAL
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
CAUTION / NOTICE / HINT
COMPONENTS (REMOVAL)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | FRONT PILLAR UPPER COVER SUB-ASSEMBLY | 60118 |
| - | - |
PROCEDURE
1. REMOVE FRONT PILLAR UPPER COVER SUB-ASSEMBLY
| Remove in this Direction | - | - |
(1) Apply protective tape around the front pillar upper cover sub-assembly as shown in the illustration.
(2) Using a moulding remover, disengage the 3 clips and 2 guides as shown in the illustration to remove the front pillar upper cover sub-assembly.
Installation
INSTALLATION
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
CAUTION / NOTICE / HINT
COMPONENTS (INSTALLATION)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | FRONT PILLAR UPPER COVER SUB-ASSEMBLY | 60118 | - | - | - |
PROCEDURE
1. INSTALL FRONT PILLAR UPPER COVER SUB-ASSEMBLY
