Toyota Prius: Front Door Opening Trim Weatherstrip

Toyota Prius (XW60) 2023-2025 Service Manual / Vehicle Exterior / Door / Hatch / Front Door Opening Trim Weatherstrip

Removal
Installation

Removal

REMOVAL

CAUTION / NOTICE / HINT

HINT:

Use the same procedure for the RH side and LH side.
The following procedure is for the LH side.

CAUTION / NOTICE / HINT

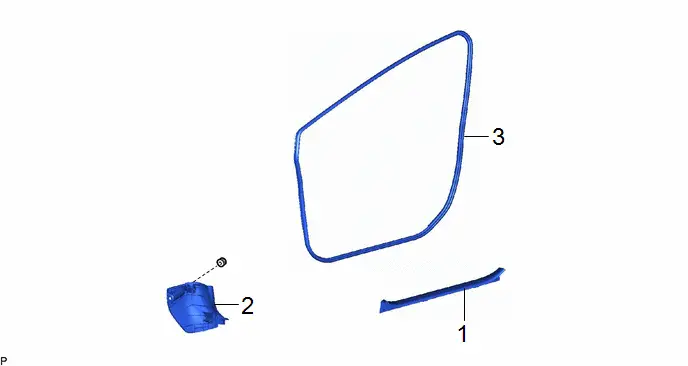

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	FRONT DOOR SCUFF PLATE	67914	-	-	-
2	COWL SIDE TRIM BOARD	62112	-	-	-
3	FRONT DOOR OPENING TRIM WEATHERSTRIP	62312B	-	-	-

PROCEDURE

1. REMOVE FRONT DOOR SCUFF PLATE

Click here

2. REMOVE COWL SIDE TRIM BOARD

Click here

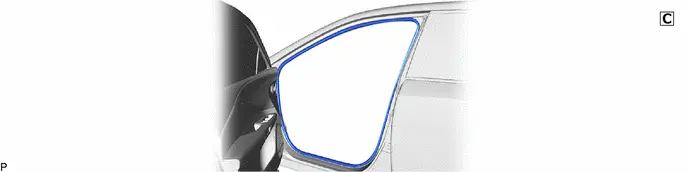

3. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP

Installation

INSTALLATION

CAUTION / NOTICE / HINT

HINT:

Use the same procedure for the RH side and LH side.
The following procedure is for the LH side.

CAUTION / NOTICE / HINT

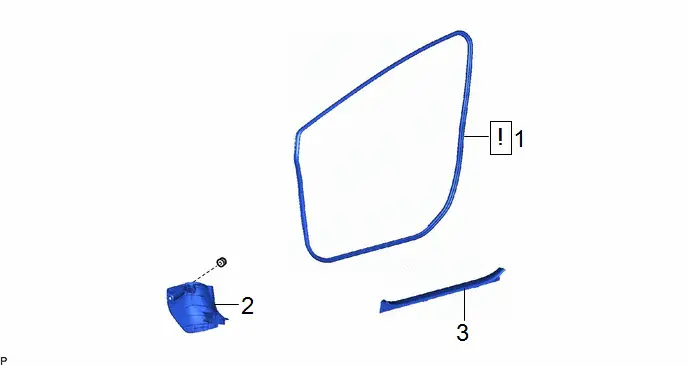

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	FRONT DOOR OPENING TRIM WEATHERSTRIP	62312B		-	-
2	COWL SIDE TRIM BOARD	62112	-	-	-
3	FRONT DOOR SCUFF PLATE	67914	-	-	-

PROCEDURE

1. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP

*a	Paint Mark	-	-
	Spot Weld	-	-

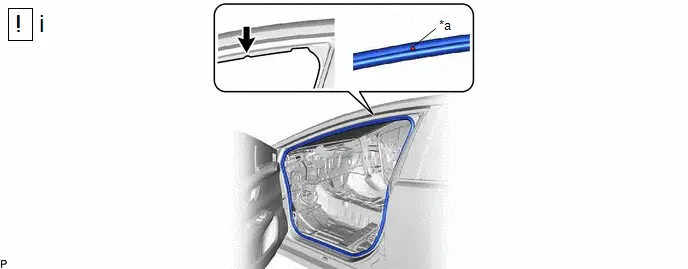

(1) Align the paint mark on the front door opening trim weatherstrip with the spot weld on the Toyota Prius vehicle body indicated by the arrow in the illustration, and install the front door opening trim weatherstrip.

NOTICE:

Make sure that the paint mark is aligned with the spot weld when installing the front door opening trim weatherstrip, otherwise water ingress may occur.
After installation, check that the corners fit correctly.

HINT:

Make sure to install the part of the front door opening trim weatherstrip near the paint mark first.
The color of the paint marks on the front door opening trim weatherstrip LH and front door opening trim weatherstrip RH are different.
Paint Mark:

Location

Color

for LH Side

Yellow

for RH Side

White
