Toyota Prius: Front Door Belt Moulding
Removal
REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during front door belt moulding assembly removal/installation are shown below.
Necessary Procedures After Parts Removed/Installed/Replaced| Replaced Part or Performed Procedure | Necessary Procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
| *: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation. | |||
| Side television camera view adjustment | Parking Support Brake system |
|
| Panoramic View Monitor System |
| ||
| Advanced Park |
| ||
| Replacement or removal and installation of 2 or more parts:
| Television camera view adjustment | Panoramic View Monitor System |
|
| Initialize power window control system |
|
|
CAUTION / NOTICE / HINT
HINT:
-
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used. Learning completes when Toyota Prius vehicle is driven
Learning completes when vehicle is operated normallyEffect/Inoperative Function When Necessary Procedures are not Performed
Necessary Procedures
Link
Front Camera System
- Drive the Toyota Prius vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.
Effect/Inoperative Function When Necessary Procedures are not Performed
Necessary Procedures
Link
*1: w/o Power Back Door System *2: w/ Power Back Door System
Power Door Lock Control System*1
- Back door opener
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.
Power Back Door System*2
Reset back door close position
Air Conditioning System
for HEV Model:- After the ignition switch is turned to ON, the servo motor standard position is recognized.
for PHEV Model:- After the ignition switch is turned to ON, the servo motor and expansion valve standard position is recognized.
-
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
CAUTION / NOTICE / HINT

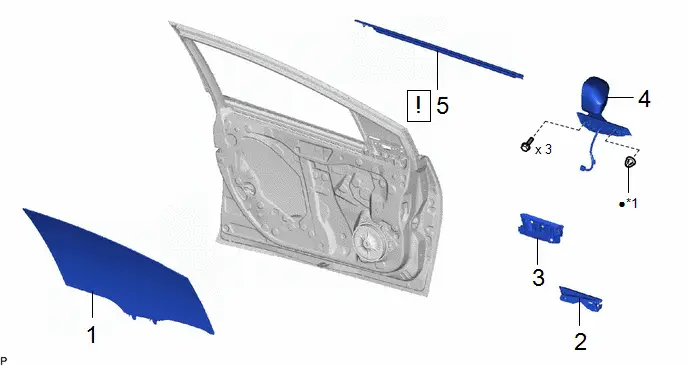

COMPONENTS (REMOVAL)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | FRONT DOOR GLASS SUB-ASSEMBLY | 68102 | - | - | - |
| 2 | FRONT DOOR LOWER FRAME BRACKET GARNISH | 67492A | - | - | - |
| 3 | NO. 3 FRONT DOOR SERVICE HOLE COVER | 67836C | - | - | - |
| 4 | OUTER REAR VIEW MIRROR ASSEMBLY | 87940 | - | - | - |
| 5 | FRONT DOOR BELT MOULDING ASSEMBLY | 75720 |
| - | - |
| *1 | HOOK | - | - |
| ● | Non-reusable part | - | - |
PROCEDURE
1. REMOVE FRONT DOOR GLASS SUB-ASSEMBLY
Click here
2. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH
Click here
3. REMOVE NO. 3 FRONT DOOR SERVICE HOLE COVER
Click here
4. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY
Click here
5. REMOVE FRONT DOOR BELT MOULDING ASSEMBLY
| Remove in this Direction | - | - |

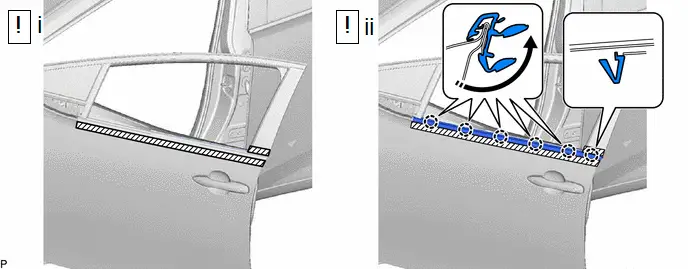

(1) Apply protective tape around the front door belt moulding assembly as shown in the illustration.
(2) Disengage the 6 claws as shown in the illustration.
Installation
INSTALLATION
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
CAUTION / NOTICE / HINT

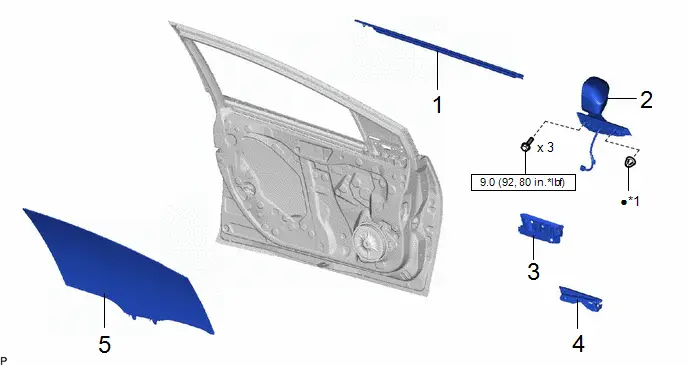

COMPONENTS (INSTALLATION)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | FRONT DOOR BELT MOULDING ASSEMBLY | 75720 | - | - | - |
| 2 | OUTER REAR VIEW MIRROR ASSEMBLY | 87940 | - | - | - |
| 3 | NO. 3 FRONT DOOR SERVICE HOLE COVER | 67836C | - | - | - |
| 4 | FRONT DOOR LOWER FRAME BRACKET GARNISH | 67492A | - | - | - |
| 5 | FRONT DOOR GLASS SUB-ASSEMBLY | 68102 | - | - | - |
| *1 | HOOK | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
PROCEDURE
1. INSTALL FRONT DOOR BELT MOULDING ASSEMBLY
2. INSTALL OUTER REAR VIEW MIRROR ASSEMBLY
Click here
3. INSTALL NO. 3 FRONT DOOR SERVICE HOLE COVER
4. INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH
5. INSTALL FRONT DOOR GLASS SUB-ASSEMBLY
Click here
