Toyota Prius: Front Blower Motor

Removal

REMOVAL

CAUTION / NOTICE / HINT

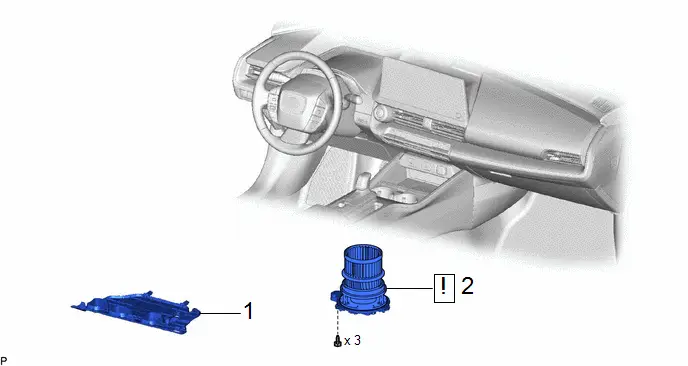

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	55607	-	-	-
2	BLOWER MOTOR WITH FAN SUB-ASSEMBLY	87103B		-	-

PROCEDURE

1. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click here

2. REMOVE BLOWER MOTOR WITH FAN SUB-ASSEMBLY

(1) Disconnect the connector.

(2) Remove the 3 screws and blower motor with fan sub-assembly.

NOTICE:

Do not reuse the blower motor with fan sub-assembly if it has been dropped or subjected to a severe impact.

Installation

INSTALLATION

CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	BLOWER MOTOR WITH FAN SUB-ASSEMBLY	87103B		-	-
2	NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	55607	-	-	-

PROCEDURE

1. INSTALL BLOWER MOTOR WITH FAN SUB-ASSEMBLY

NOTICE: Do not reuse the blower motor with fan sub-assembly if it has been dropped or subjected to a severe impact.

2. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
